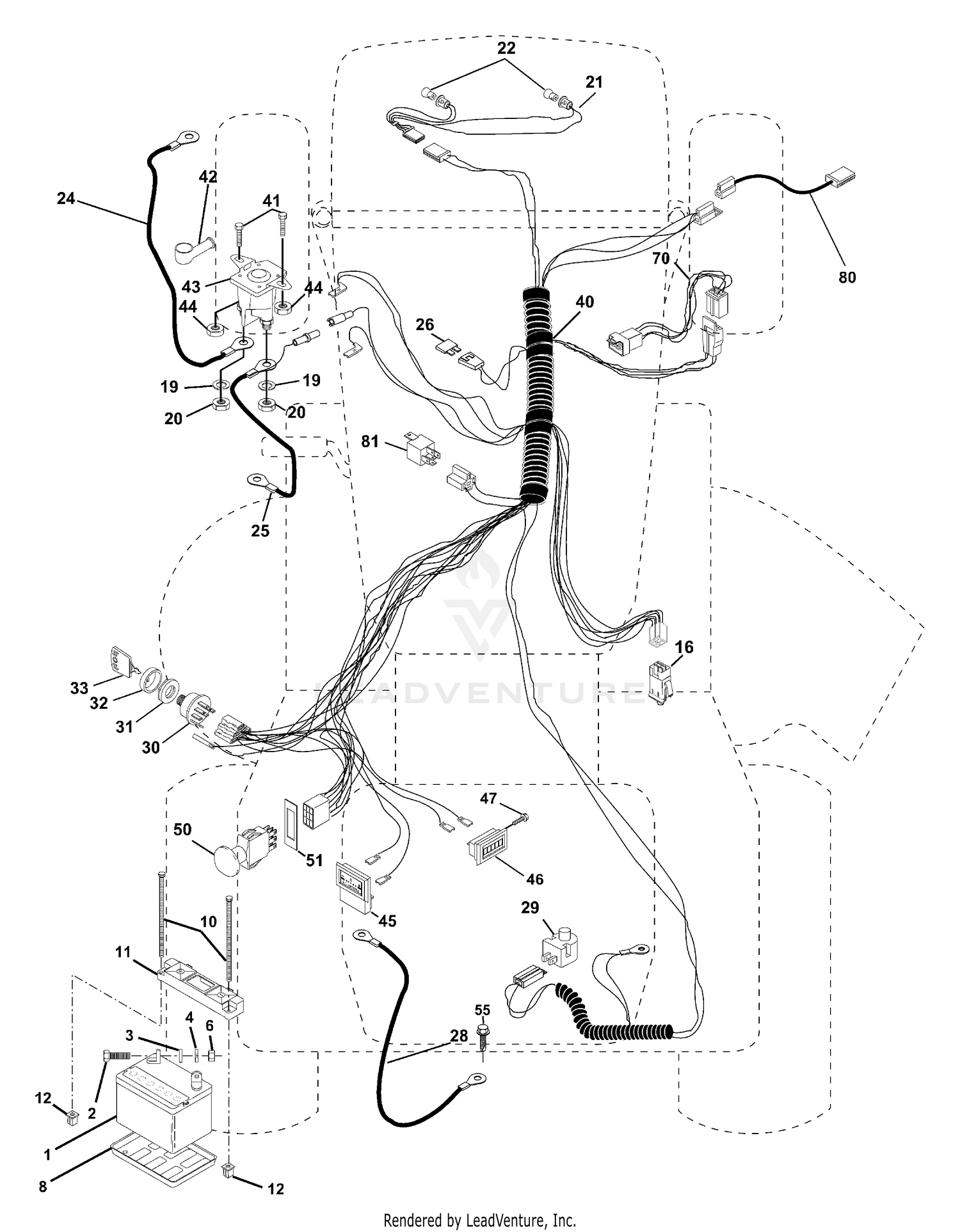

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144925. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
98-7743 |
BEARING Price: $37.48 |
| 3 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 3 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 4 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 4 |
98-7744 |
BEARING Price: $35.64 |
| 5 |
98-7741 |
YOKE ASM Price: $305.27 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 6 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 7 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 8 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 8 |
99-8370 |
FRAME-END Price: $79.75 |
| 9 |
100-9240 |
BOLT This part replaces 98-9549. Price: $7.23 |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 10 |
98-7758 |
BOLT ASM Price: $4.90 |
| 11 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
| 11 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT Price: $4.99 |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $8.99 |
| 12 |
99-8371 |
NUT-HEX Price: $3.75 |
| 13 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 14 |
99-8372 |
MAGNETIC SWITCH ASM Price: $528.24 |
| 15 |
98-7754 |
SPRING Price: $4.70 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN This part replaces 532153664. Price: $19.99 |
| 16 |
98-7755 |
BALL Price: $0.42 |
| 17 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 18 |
98-7756 |
BOLT Price: $2.64 |
| 19 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 19 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 20 |
98-7752 |
RETAINER Price: $4.35 |
| 21 |
532136850 |
HARNESS LIGHT SOCKET Price: $15.99 |
| 21 |
98-7753 |
ROLLER Price: $1.00 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
98-7751 |
GEAR Price: $43.51 |
| 23 |
99-8375 |
COVER Price: $24.86 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 24 |
98-7757 |
O-RING Price: $24.98 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 25 |
99-8376 |
NUT-HEX Price: $7.28 |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 26 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532160784 |
PLUNGER SWITCH (COLOR:OLIVE) Price: $17.99 |
| 30 |
532140301 |
SWITCH.IGNITION.4.POSITION Price: $32.99 |
| 31 |
532124211 |
NUT IGNITION Price: $4.99 |
| 32 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 33 |
532122147 |
KEY.MOLDED.GENERIC Price: $5.99 |
| 40 |
532160719 |
WIRING HARNESS Price: $117.67 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 44 |
873640400 |
Nut Keps Hex 1/4-20 Unc Price: $2.99 |
| 45 |
532122822 |
AMMETER This part replaces 532121433. Price: $17.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532110940. Price: $109.99 |
| 47 |
817011008 |
Screw 10-24 x 1/2 Black Price: $2.38 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532154959. Price: $24.99 |
| 51 |
532140405 |
FRAME RETAINING RING Price: $3.99 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 70 |
532142621 |
HARNESS ENG. KOHLER Price: $6.70 |
| 80 |
532146685 |
HARNESS, CLUTCH Price: $11.99 |
