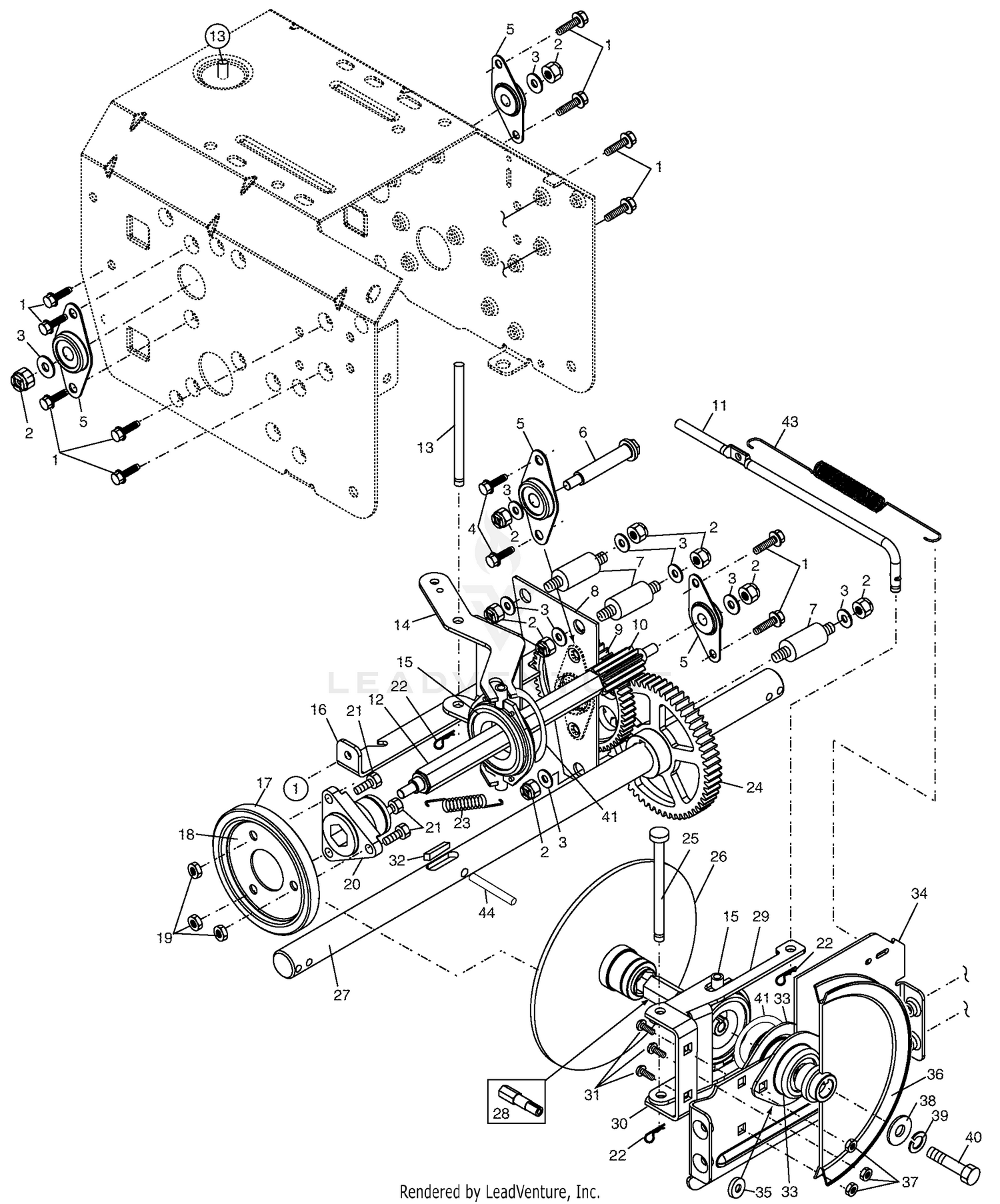

| Ref | Part Number | Description |
|---|
| 1 |
146315 |
Screw, Hex Head 5/16-18 x 3/4 Price: Call Us |
| 1 |
3220-7 |
NUT-JAM Price: $4.09 |
| 2 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 2 |
73800500 |
Nut, Lock 5/16-18 Price: Call Us |
| 3 |
155415 |
Washer, Flat Price: Call Us |
| 4 |
17490508 |
Screw, Hex Head 5/16-18 x 1/2 Price: Call Us |
| 4 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 5 |
180017 |
Bearing, Flange Price: Call Us |
| 5 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 6 |
180134 |
Shaft, Auxiliary Price: Call Us |
| 7 |
179270 |
Spacer, Plate Price: Call Us |
| 7 |
67-9410 |
WASHER Price: $2.04 |
| 8 |
179269X479 |
Plate, Auxiliary Price: Call Us |
| 8 |
32128-45 |
NUT-HHF Price: $7.67 |
| 9 |
180082 |
Gear, Intermediate (12/58) Price: Call Us |
| 10 |
180065 |
Gear, Pinion Price: Call Us |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 11 |
178812 |
Rod, Clutch Price: Call Us |
| 11 |
67-7300 |
SCREW-HH Price: $81.39 |
| 12 |
180066 |
Shaft, Long, Hex Price: Call Us |
| 12 |
67-7250 |
SPACER-RING Price: $3.32 |
| 13 |
178807 |
Pin, Pivot Price: Call Us |
| 13 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 14 |
178619X479 |
Lever, Shifter / Wheel Price: Call Us |
| 14 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 15 |
115-4525 |
CYLINDER ASM This part replaces 76-2070. Price: $1,342.36 |
| 15 |
175344 |
Trunnion Bearing Assembly Price: Call Us |
| 16 |
178805X479 |
Bracket, Pivot, Shift Price: Call Us |
| 16 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 17 |
179831 |
Ring, Rubber Wheel Price: Call Us |
| 17 |
328-25 |
SCREW-HH Price: $4.07 |
| 18 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 18 |
178616X479 |
Plate, Rubber Wheel Price: Call Us |
| 19 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 19 |
73930500 |
Nut, Lock 5/16-18 Price: Call Us |
| 20 |
178613 |
Hub, Rubber Wheel Price: Call Us |
| 20 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 21 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 21 |
74760514 |
Screw, Hex Head 5/16-18 x 7/8 Price: Call Us |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 22 |
85179 |
Retainer, Hairpin Price: Call Us |
| 23 |
180135 |
Spring, Bias Price: Call Us |
| 23 |
63-6430-03 |
FRAME-REAR Price: $757.78 |
| 24 |
180081 |
Gear, Axle (58 Teeth) Price: Call Us |
| 24 |
63-6770-03 |
PIN-MASKED Price: $145.71 |
| 25 |
178695 |
Pin, Pivot Lever Price: Call Us |
| 25 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 26 |
175341 |
Plate Assembly, Drive Price: Call Us |
| 26 |
321-4 |
SCREW-HH Price: $0.99 |
| 27 |
178621 |
Shaft, Axle Price: Call Us |
| 27 |
325-5 |
SCREW-HH Price: $1.20 |
| 28 |
175340 |
Shaft, Short Hex Price: Call Us |
| 29 |
175350X479 |
Lever, Shifter Plate Price: Call Us |
| 30 |
175349X479 |
Bracket, Shifter Support Price: Call Us |
| 31 |
72270505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 32 |
178879 |
Key, Square 1/4 x 1/4 x 7/8 Price: Call Us |
| 33 |
175323 |
Bearing, Flange Price: Call Us |
| 34 |
175338X479 |
Plate, Drive Mounting Price: Call Us |
| 35 |
182504 |
Spacer, Bearing Price: Call Us |
| 36 |
175348 |
Pulley, Traction Drive Price: Call Us |
| 37 |
155377 |
Nut, Lock 5/16-18 Price: Call Us |
| 38 |
59289 |
Washer, Flat Price: Call Us |
| 39 |
10040500 |
Washer, Lock 5/16 Price: Call Us |
| 40 |
74950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: Call Us |
| 41 |
12000012 |
Ring, Retaining Price: Call Us |
| 43 |
179095 |
Spring, Return Price: Call Us |
