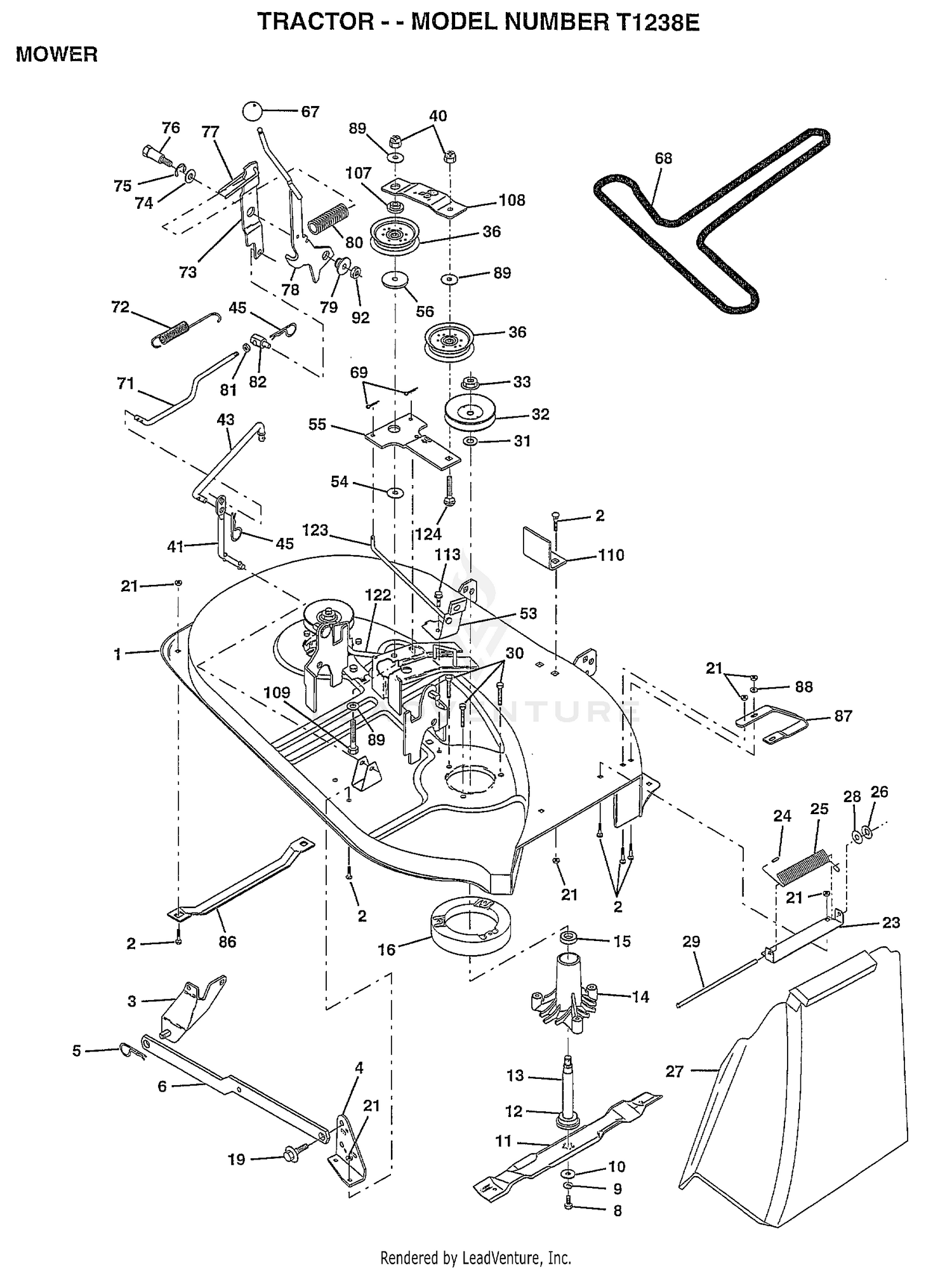

| Ref | Part Number | Description |
|---|
| 1 |
142829 |
SUB= 145775 Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 010 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 020 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 23 |
137607 |
BRKT DEFLECTOR Price: Call Us |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 27 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
106735X |
ROD-HINGE T Price: Call Us |
| 030 |
98-7708 |
NUT Price: $7.76 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153532 |
PULLEY.MANDREL.38 Price: Call Us |
| 33 |
137226 |
NLA Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 040 |
98-7709 |
COLLAR Price: $8.79 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 43 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 050 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 53 |
130840 |
BRAKE ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 060 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 69 |
76020312 |
SUB= 3145 Price: Call Us |
| 070 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140334 |
SUB= 154810 Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 080 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 80 |
128759 |
SUB= 918128759 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 86 |
7631J |
RUNNER-LH M Price: Call Us |
| 87 |
128772 |
RUNNER RH Price: Call Us |
| 88 |
19111216 |
WASHER M Price: Call Us |
| 89 |
19131612 |
WASHER GT Price: Call Us |
| 090 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 92 |
73800600 |
NUT Price: Call Us |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 107 |
133502 |
RETAINER SPACER Price: Call Us |
| 108 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 109 |
74760640 |
BOLT Price: Call Us |
| 110 |
142587 |
UPSTOP DECK FT 38 Price: Call Us |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 113 |
17490512 |
SCREW Price: Call Us |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 122 |
131289 |
BRAKE ROD LH Price: Call Us |
| 123 |
131288 |
BRAKE ROD RH Price: Call Us |
| 124 |
72110614 |
BOLT Price: Call Us |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
98-7720 |
COVER-END Price: $39.58 |
| 160 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
| 145758 |
DECK.SERV.38.HLMC |
Price: Call Us 145758 |
