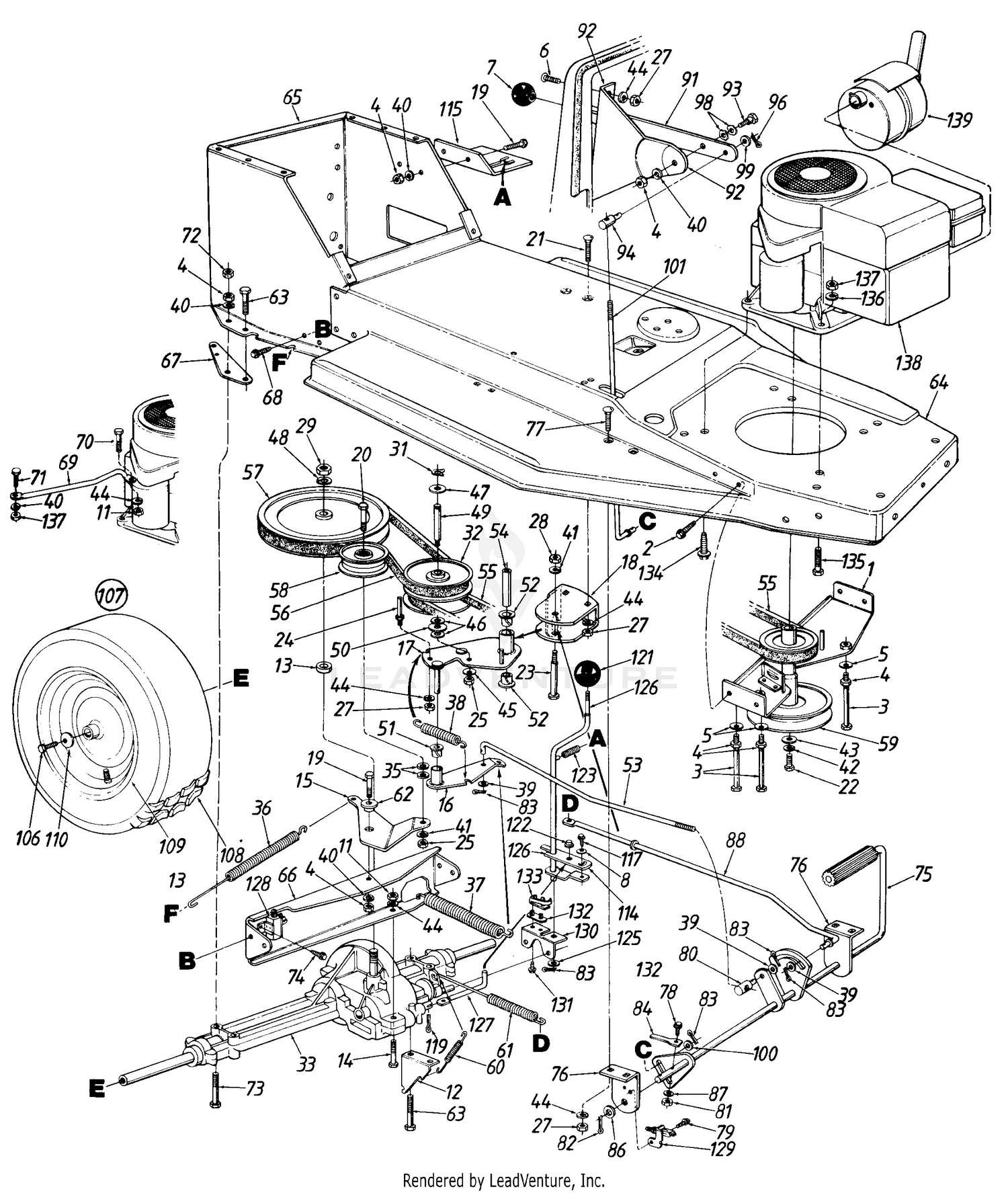

| Ref | Part Number | Description |
|---|
| 1 |
16670 |
GUARD-ENGI Not Available Price: |
| 2 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 3 |
710-0833 |
Hex Bolt 5/16-18 x 51/4" Lg. Price: $8.31 |
| 4 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 5 |
736-0242 |
Bell-Wash. .345" I.D. x .88 Price: $3.75 |
| 6 |
710-0286 |
Truss-Mach. Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 7 |
920-0232 |
Knob This part replaces 720-0165. Price: $9.11 |
| 8 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 11 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 12 |
17128A-0637 |
Spring Retainer Brkt. This part replaces 17128. Price: $14.25 |
| 13 |
750-0721 |
SPACER Not Available Price: |
| 14 |
710-0559 |
SCREW 1/4-28 x 1.75 GR5 Not Available Price: |
| 15 |
15891C-0637 |
IDLER BRACKET Not Available This part replaces 15891. Price: |
| 16 |
16352 |
VARIABL E SPEED TORQUE BRACKET. ASS'Y. Not Available Price: |
| 17 |
16676 |
VARIABLE SPEED BRKT. ASS'Y. Not Available Price: |
| 18 |
16679 |
BRACKET-PI Not Available Price: |
| 19 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 20 |
710-0539 |
Hex Bolt 3/8-24 x 13/4" Lg. Gr. 5 Price: $3.95 |
| 21 |
710-0703 |
Carr. Bolt 1/4-20 x .75" Lg. Price: $3.66 |
| 22 |
710-0757 |
Hex Bolt 7/16-20 x 1.5" Lg. Price: $8.83 |
| 23 |
710-0859 |
Screws 3/8-16X2.5 This part replaces 710-0937. Price: $5.99 |
| 24 |
911-1000 |
Belt Keeper, .25 DIA X 3.0 This part replaces 711-0768. Price: $9.62 |
| 25 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 27 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 28 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 29 |
712-3029 |
NUT This part replaces 712-0922. Price: $6.01 |
| 31 |
916-0114 |
Snap Ring .56" Dia. This part replaces 716-0114. Price: $5.99 |
| 32 |
917-0800A |
Variable Speed Pulley Ass'y. 5" O.D. This part replaces 717-0800. Price: $215.56 |
| 33 |
717-0775 |
KIT-TRANSAXLE Not Available Price: |
| 35 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1" Price: $3.93 |
| 36 |
932-0384 |
EXTENSION SPRING Not Available This part replaces 732-0384. Price: |
| 37 |
732-0459C |
Ext. Spring .94" O.D. x 6.7 This part replaces 732-0459. Price: $16.05 |
| 38 |
732-0568 |
EXTENSION SPRING Not Available Price: |
| 39 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 40 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 41 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 42 |
736-0171 |
L-Wash. 7/16" I.D. Price: $3.86 |
| 43 |
736-0322 |
Fl-Wash. .450" I.D. x 1.25" Price: $8.42 |
| 44 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 45 |
736-0331 |
Bell-Wash. .39" I.D. x 1.13" Price: $3.50 |
| 46 |
736-0355 |
Fl-Wash. .56" I.D. x 1.0" O.D. Not Available Price: |
| 47 |
736-0414 |
Washer "Teflon" .565 I.D. Price: $3.82 |
| 48 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 49 |
938-0569 |
Shaft 56" Dia. x 3.875" Lg. This part replaces 738-0569. Price: $29.38 |
| 50 |
941-0405 |
THRUST BEARING Not Available This part replaces 741-0405. Price: |
| 51 |
741-0419 |
FLANGE BEARING Not Available Price: |
| 52 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 53 |
747-0688 |
LINK-SPEED CONTROL Not Available Price: |
| 54 |
750-0703 |
SPACER Not Available Price: |
| 55 |
954-0280A |
Variable Speed Belt This part replaces 754-0280. Price: $42.39 |
| 56 |
954-0281 |
Variable Speed Belt This part replaces 754-0281. Price: $37.74 |
| 57 |
756-0374 |
PULLEY Not Available Price: |
| 58 |
756-0643A |
Fl-ldler Pulley 3.25" x 1.0" This part replaces 756-0437. Price: $35.98 |
| 59 |
756-0508 |
ENGINE PULLEY Not Available Price: |
| 60 |
932-0303 |
Spring .38" O.D. x 3.18" Lg. This part replaces 732-0303. Price: $8.93 |
| 61 |
932-0413 |
Ext. Spring .59n O.D. x 7 08" Not Available This part replaces 732-0413. Price: |
| 62 |
748-0234 |
Shld. Spacer .500" Dia. Price: $3.86 |
| 63 |
710-0176 |
Hex Bolt 5/16-18 x 2.75" Lg.* Price: $3.89 |
| 64 |
16652 |
FRAME-FRON Not Available Price: |
| 65 |
16653 |
REAR FRAME Not Available Price: |
| 66 |
16654A-0637 |
BRACKET-TRANSMISSION Not Available This part replaces 16654. Price: |
| 67 |
16659-0637 |
BRACKET-TRANSMISSION Not Available This part replaces 16659. Price: |
| 68 |
710-0726 |
Hex Wash. AB-Tap Scr. 5/16 x.75" Lg. Price: $3.82 |
| 72 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 73 |
710-0189 |
Hex Bolt 5/16-18 x 3.0" Lg.* Price: $5.30 |
| 74 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x.50" Lg. Price: $3.90 |
| 75 |
16689 |
PEDAL ASSEMBLY Not Available Price: |
| 76 |
16691 |
BRACKET-MTG Not Available Price: |
| 77 |
710-0134 |
Carr. Bolt 1/4-20 x .62" Lg. Price: $3.71 |
| 78 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 79 |
710-0599 |
Hex TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 80 |
911-0198 |
Ferrule This part replaces 711-0198. Price: $12.05 |
| 81 |
N/A |
UNKNOWN |
| 82 |
714-0111 |
Cot-Pin 3/32" Dia. x 1.0" Lg. Price: $4.20 |
| 83 |
714-0507 |
Cot-Pin 3/32" Dia. x .75" Lg. Price: $3.93 |
| 84 |
732-0435 |
ACTUATOR-SWITCH Not Available Price: |
| 86 |
936-0256 |
Fl-Wash. This part replaces 736-0256. Price: $6.24 |
| 87 |
N/A |
UNKNOWN |
| 88 |
747-0686 |
BRAKE ROD Not Available Price: |
| 91 |
17457B |
LEVER-SPEED SELECTOR Not Available This part replaces 16663. Price: |
| 93 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 94 |
911-0677 |
Engagement Ferru This part replaces 711-0677. Price: $15.59 |
| 96 |
714-0104 |
Intern. Cot-Pin 5/16" Dia. Price: $3.90 |
| 98 |
N/A |
UNKNOWN |
| 99 |
736-0264 |
Fl-Wash. .344" I.D. x .62" Price: $5.99 |
| 100 |
736-0463 |
Fl-Wash. .25" I.D. x .62n O.D. Price: $3.91 |
| 101 |
747-0675 |
SPEED CONTROL ROD Not Available Price: |
| 106 |
710-0627 |
Hex L-Bolt 5/16-24 x .75" Lg. Price: $3.68 |
| 107 |
734-1424 |
WHEEL ASSEMBLY W/TIRE- Not Available Price: |
| 108 |
734-1423 |
TIRE-16 x 7.50 Not Available Price: |
| 109 |
734-1450 |
WHEEL RIM Not Available Price: |
| 110 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 114 |
17178 |
SHIFT LEVER ADJUSTING LINK Not Available Price: |
| 115 |
16482 |
BRACKET Not Available Price: |
| 117 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 119 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 121 |
931-0009A |
Shfter Knob This part replaces 720-0175. Price: $13.05 |
| 122 |
726-0106 |
PUSH NUT This part replaces 726-0231. Price: $3.37 |
| 123 |
732-0499 |
Compression Spring 1.5 Lg. Price: $8.24 |
| 125 |
736-0226 |
Fl-Wash. .469" I.D. x .88" Price: $3.64 |
| 126 |
747-0680 |
SHIFT ROD ASSEMBLY Not Available Price: |
| 127 |
747-0685 |
SHIFT ROD Not Available Price: |
| 128 |
925-0465A |
Safety Switch This part replaces 725-0465. Price: $26.56 |
| 129 |
725-0577 |
SAFETY SWITCH Not Available Price: |
| 130 |
17179 |
LEVER-SHIF Not Available Price: |
| 131 |
710-0227 |
Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg. Price: $3.90 |
| 132 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0222. Price: $6.01 |
| 133 |
753-0580 |
KIT-SAFETY SWITCH Not Available This part replaces 725-0758. Price: |
| 134 |
710-0502A |
Hx Wash Hd. Scr. 3/8-16 x 1.25" This part replaces 710-0502. Price: $5.71 |
| 135 |
710-06I2 |
Hex Bolt 5/16-24 x 11/4" Lg. Grade 5 Price: Call Us |
| 136 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 137 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 138 |
N/A |
Engine |
| 139 |
N/A |
Muffler Check PN |
| 16694 |
BRACKET-7-SPEED |
Not Available Price: 16694 |
