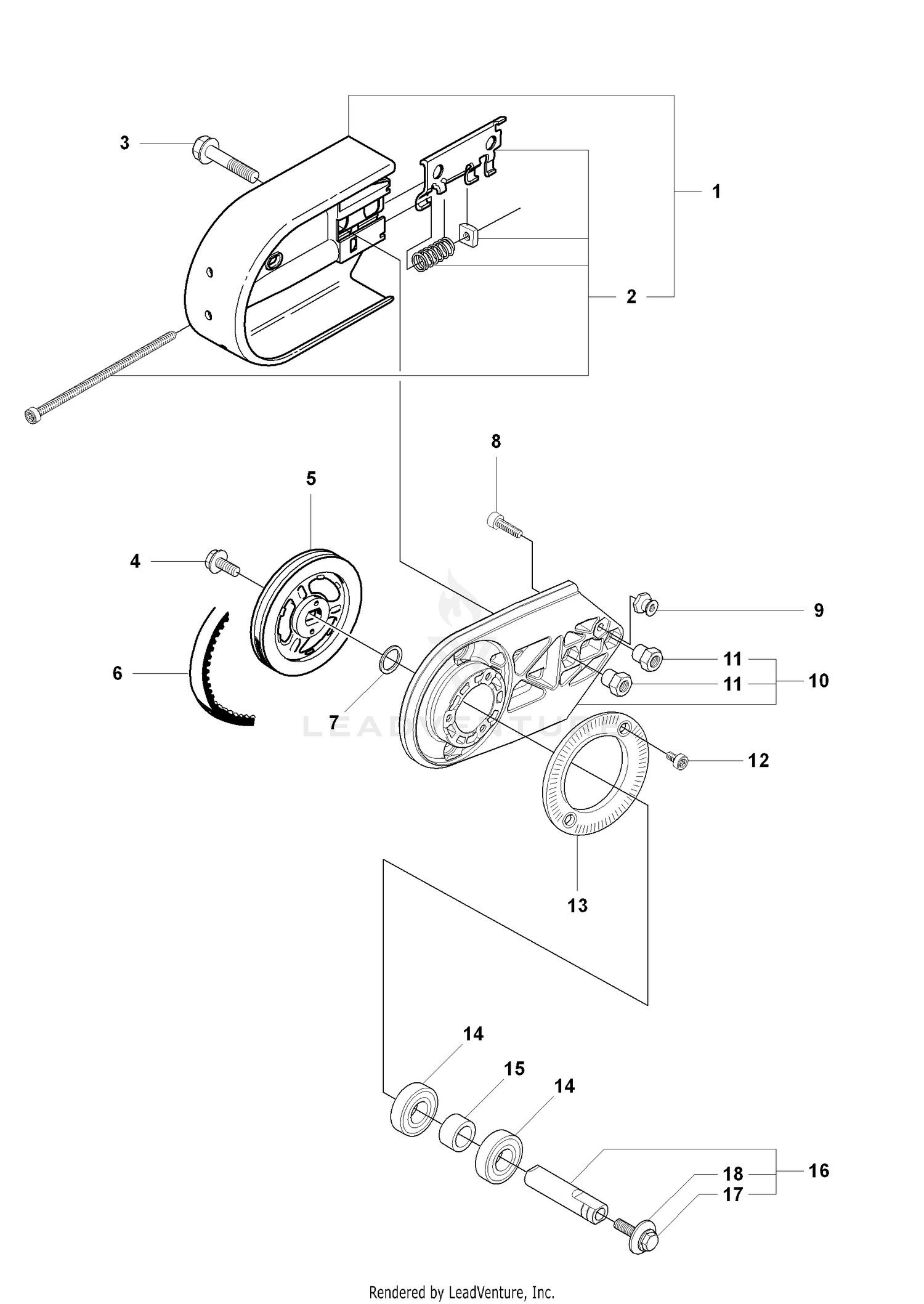

Belt Guard and Bearing Housing
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 506266603 | TENSIONER Price: $24.99 |
| 3 | 506284401 | BOLT Price: $3.99 |
| 4 | 503200045 | SCREW Price: $3.99 |
| 5 | 506354701 | PULLEY This part replaces 506071802. Price: $49.99 |
| 6 | 506372721 | BELT This part replaces 506372707. Price: $27.99 |
| 7 | 503230104 | WASHER 15X21 Price: $3.99 |
| 8 | 725532955 | SCREW MC6S 5X16 Price: $6.99 |
| 9 | 506143201 | CATCH Price: $5.99 |
| 11 | 506287301 | NUT Price: $6.99 |
| 12 | 503200712 | SCREW Price: $4.99 |
| 13 | 506288401 | FLANGE Price: $4.99 |
| 14 | 503252101 | BALL BEARING Price: $19.99 |
| 15 | 506070801 | SPACER Price: $5.99 |
| 17 | 581855201 | SCREW This part replaces 506139601. Price: $9.99 |
