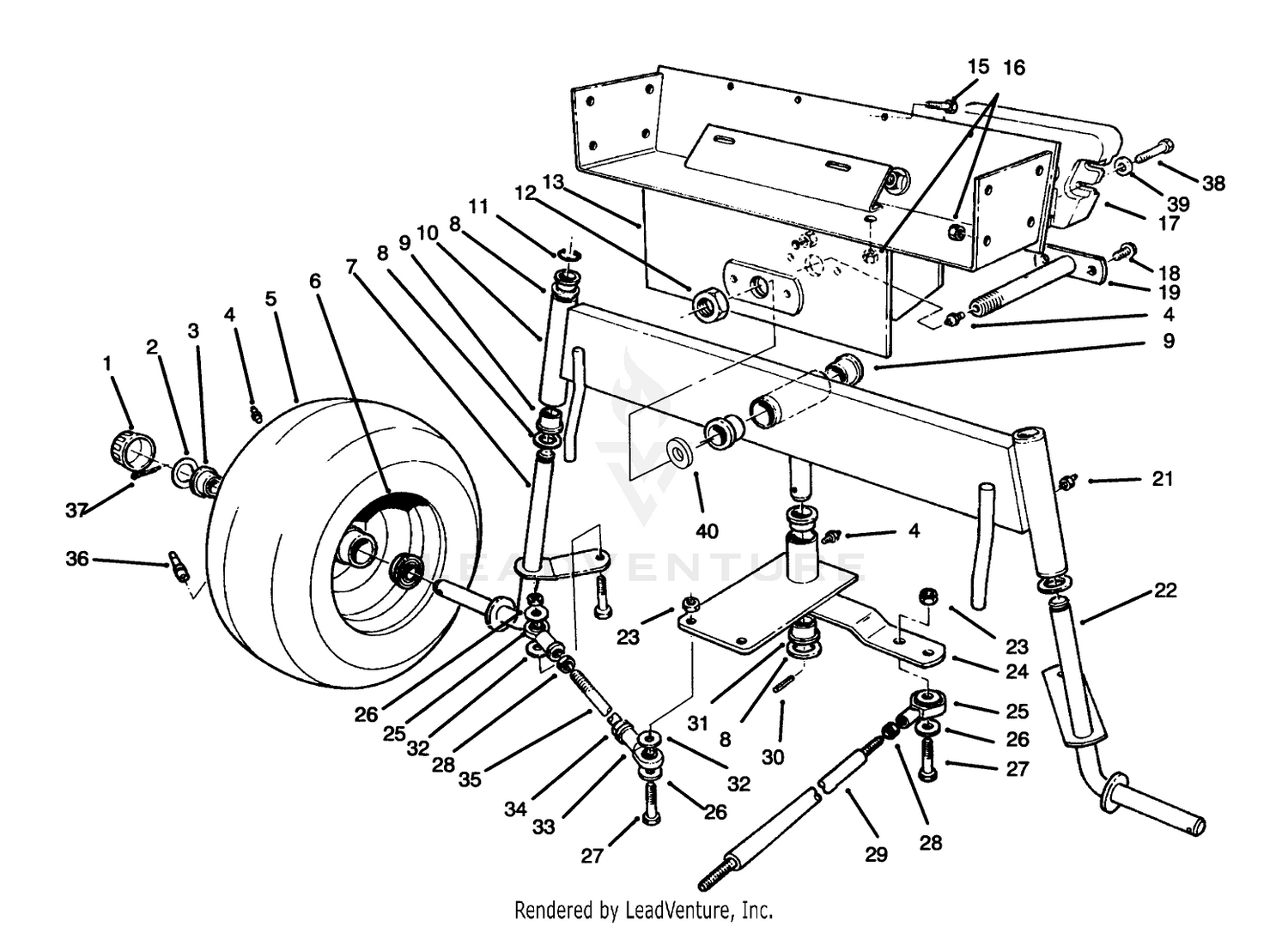

| Ref | Part Number | Description |
|---|
| 1 |
61-9780 |
CAP-HUB Price: $7.29 |
| 2 |
28-2480 |
WASHER-PLAIN Price: $3.99 |
| 3 |
110513 |
BEARING-WHEEL This part replaces 251-210. Price: $20.99 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 5 |
231-126 |
TIRE (13X5-6) 4-PLY RIBBED Price: $85.99 |
| 6 |
115-4215 |
WHEEL ASM W/BEARINGS This part replaces 242-60. Price: $101.10 |
| 7 |
54-0570 |
Spindle R.H. Price: Call Us |
| 8 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 9 |
46-6680 |
BUSHING PM Price: $15.97 |
| 10 |
92-6255 |
Axle-Rear (Incl. Ref. #9 20) Price: $413.78 |
| 11 |
32151-48 |
E-RING Price: $1.41 |
| 12 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 13 |
54-0330 |
Frame-Rear Price: Call Us |
| 15 |
321-4 |
SCREW-HH Price: $0.99 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
24-5790-01 |
WEIGHT-REAR This part replaces 24-5790. Price: $334.70 |
| 18 |
32144-15 |
SCREW-HHFTF Price: $7.99 |
| 19 |
59-1500-01 |
PIVOT PIN WA This part replaces 59-1500. Price: $60.16 |
| 21 |
302-49 |
GREASE FITTING Price: $3.29 |
| 22 |
54-0560-01 |
L/H SPINDLE WA This part replaces 54-0560. Price: $77.07 |
| 23 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 24 |
92-6257 |
Plate-Pivot (Incl. Ref. #4 30) Price: $110.72 |
| 25 |
251-305 |
BALL JOINT RH Price: $76.99 |
| 26 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 27 |
324-7 |
SCREW-HH Price: $1.79 |
| 28 |
3220-4 |
NUT-JAM Price: $2.49 |
| 29 |
54-1491-03 |
STEERING ROD This part replaces 54-1491. Price: $104.99 |
| 30 |
32121-51 |
PIN-ROLL Price: $0.70 |
| 31 |
27-9080 |
BEARING-FLANGE Price: $3.39 |
| 32 |
62-4420 |
WASHER Price: $6.69 |
| 33 |
251-304 |
BALL JOINT LH Price: $51.06 |
| 34 |
3220-19 |
NUT Price: $5.26 |
| 35 |
57-3100 |
TIE ROD - STEERING Price: $20.80 |
| 36 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 38 |
325-6 |
SCREW-HH Price: $1.42 |
| 39 |
3253-7 |
WASHER-LOCK Price: $0.27 |
