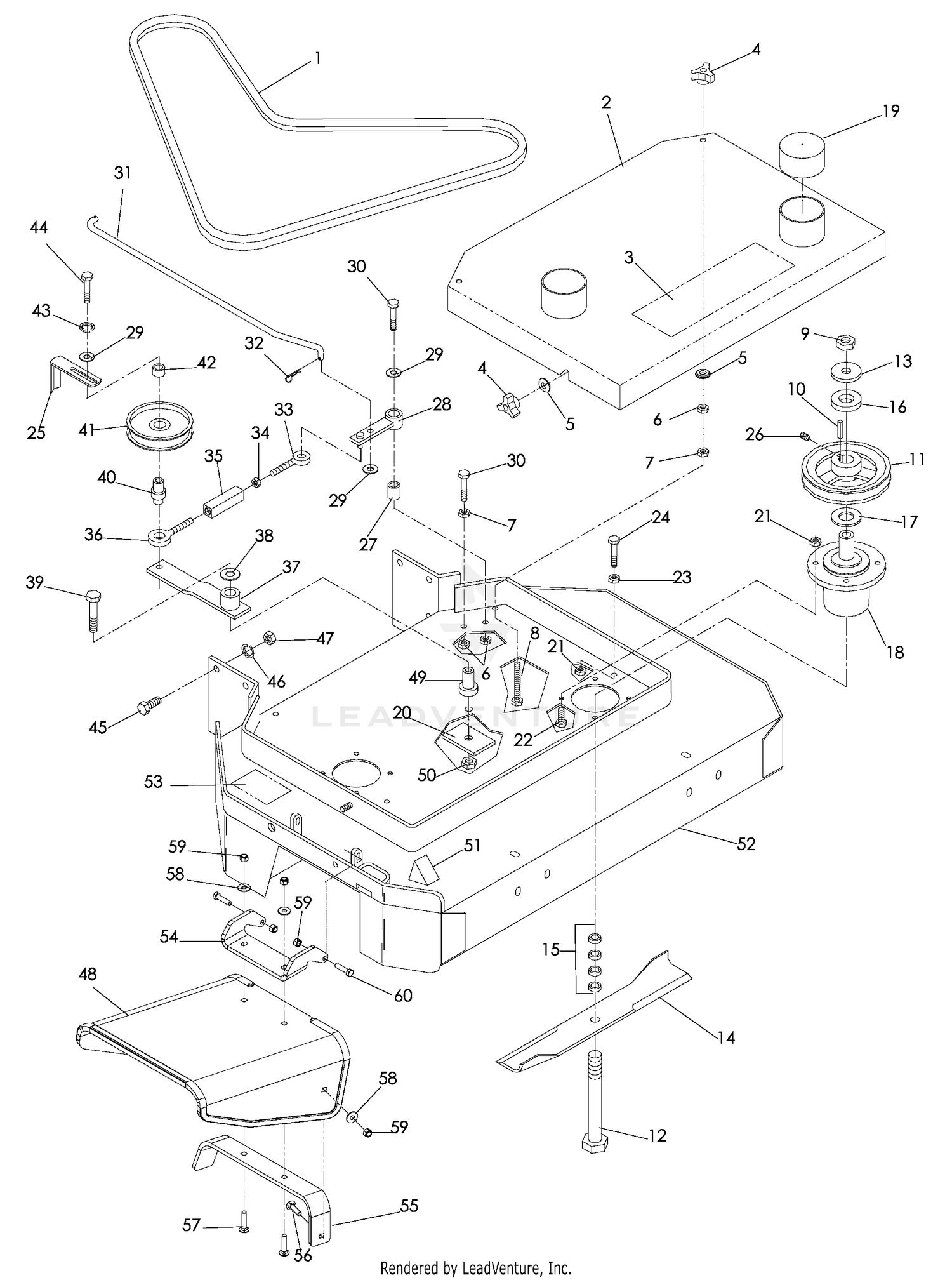

32/36" Cutting Deck

32/36" Cutting Deck

Parts (81)

RefPart NumberDescription
1 322-3 SCREW-HH Price: $0.79
1 539101959 BELT, DECK, 36" Price: $59.99
2 32107-11 NUT-SQUARE Price: $0.22
2 539104561 BELT SHIELD ORANGE 36" Price: $199.99
3 27-7170 MOUNTING BAND ASM Price: $48.11
3 539111047 DECAL, HUSQ 12" BLUE Price: $11.99
4 3258-19 SCREW Price: $0.42
4 539102070 KNOB, THREE PRONG Price: $4.99
5 27-7100 AIR CLEANER ASM Price: $323.10
5 539102056 WASHER, 3/8 SEALING Price: $2.99
6 20-4840 CLAMP-MUFFLER Price: $15.06
6 595305901 Nuts This part replaces 539990546. Price: $2.99
7 43-3810-03 TUBE-CLEANER, AIR This part replaces 43-3810. Price: $89.59
7 596583501 Washers This part replaces 539990613. Price: $2.99
8 27-7180 CAP Price: $70.51
8 539102334 TAPBOLT 3/8C X 4 1/2 Price: $2.99
9 539976980 NUT 5/8F HEX Price: $2.99
9 82-5590 HOSE-CLEANER, AIR Price: $79.73
10 539101995 KEY 1/4 SQ X 1 1/8 Price: $2.99
11 539976398 PULLEY W/SETSCREWS Price: $49.99
12 2412-42 CLAMP-HOSE Price: $2.65
12 539102332 HCS 5/8F X 8 1/2 Price: $11.99
13 3217-6 NUT-HEX Price: $1.19
13 596437501 Washers This part replaces 539102243. Price: $8.99
14 27-7160 DECAL-INSTALLATION Price: $19.89
14 539100341 BLADE OEM 18" Price: $19.99
15 32128-20 NUT-HF Price: $0.99
15 539976436 BLADE SPACERS Price: $2.99
16 108-3833 FILTER-AIR This part replaces 27-7110. Price: $26.73
16 539102245 SPACER Price: $8.99
17 27-7120 NUT AND GASKET ASM Price: $15.55
17 539102675 MACHINERY BUSHING 10 GA. Price: $8.99
18 27-7140 SKIRT-BAFFLE Price: $85.92
18 539107418 HOUSING ASM Price: $279.99
19 27-7130 CLAMP ASM Price: $49.80
19 539102320 TUBE CAP Price: $6.99
20 539102236 PAD Price: $22.99
20 80-3330 GASKET Price: $18.48
21 596580701 Nuts This part replaces 539990184. Price: $2.99
22 596580801 Bolts This part replaces 539990209. Price: $2.99
23 596039201 GSPW Hardware This part replaces 539990585. Price: $2.99
24 539990553 HCS 5/16 X 3 Price: $4.99
25 539100075 SNUBBER Price: $32.99
26 539976956 SET SCREW 5/16 NYLOC Price: $2.99
27 539101836 BUSHING, SLEEVE Price: $2.99
28 539101979 ENGAGEMENT ARM Price: $54.99
29 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
30 596564404 Bolts This part replaces 539990629. Price: $2.99
31 539102048 BLADE ROD 36" Price: $13.99
32 596580601 Pins This part replaces 539976988. Price: $3.99
33 539101982 EYEBOLT, RH Price: $37.99
34 596582601 Nuts This part replaces 539990196. Price: $2.99
35 539101983 TURNBUCKLE Price: $11.99
36 539101981 EYEBOLT, LH Price: $11.99
37 539101978 ARM WELDMENT Price: $84.99
38 595316401 Washers This part replaces 539990550. Price: $2.99
39 539101332 HCS 1/2C X 2 3/4 Price: $4.99
40 539101980 EYEBOLT PIVOT Price: $14.99
41 596739801 PULLEYS This part replaces 539976688. Price: $29.99
42 539102656 SPACER Price: $3.99
43 596238701 Washers This part replaces 539990118. Price: $3.99
44 596434201 Bolts This part replaces 539990637. Price: $3.99
45 594944601 Bolts This part replaces 539101175. Price: $2.99
46 596238901 Washers This part replaces 539990247. Price: $2.99
47 539990449 NUT 7/16C HEX Price: $2.99
48 539130903 CHUTE, RUBBER DISCHARGE WB Price: $49.99
49 539101231 IDLER SPINDLE Price: $11.99
50 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
51 539913010 DECAL, CPSC Price: $3.99
52 539104563 DECK W/DECALS 36" Price: $986.99
53 539105746 DECAL, EURO SEVERING Price: $2.99
54 539130916 PIVOT BRACKET - CHUTE Price: $32.99
55 539130922 BRKT, REINF-CHUTE WB Price: $34.99
56 596671401 Bolts This part replaces 539100472. Price: $3.99
57 596030801 Bolts This part replaces 539102933. Price: $3.99
58 596134901 GSPH This part replaces 539990692. Price: $2.99
59 596583702 Nuts This part replaces 539990717. Price: $2.99
539100340 BLADE OEM 16 1/4" Price: $22.99 539100340
539102148 BELT, DECK 32" Price: $84.99 539102148
539104620 DECK W/DECALS 32" Price: $971.99 539104620
539104650 BELT SHIELD 32", ORANGE Price: $178.99 539104650
