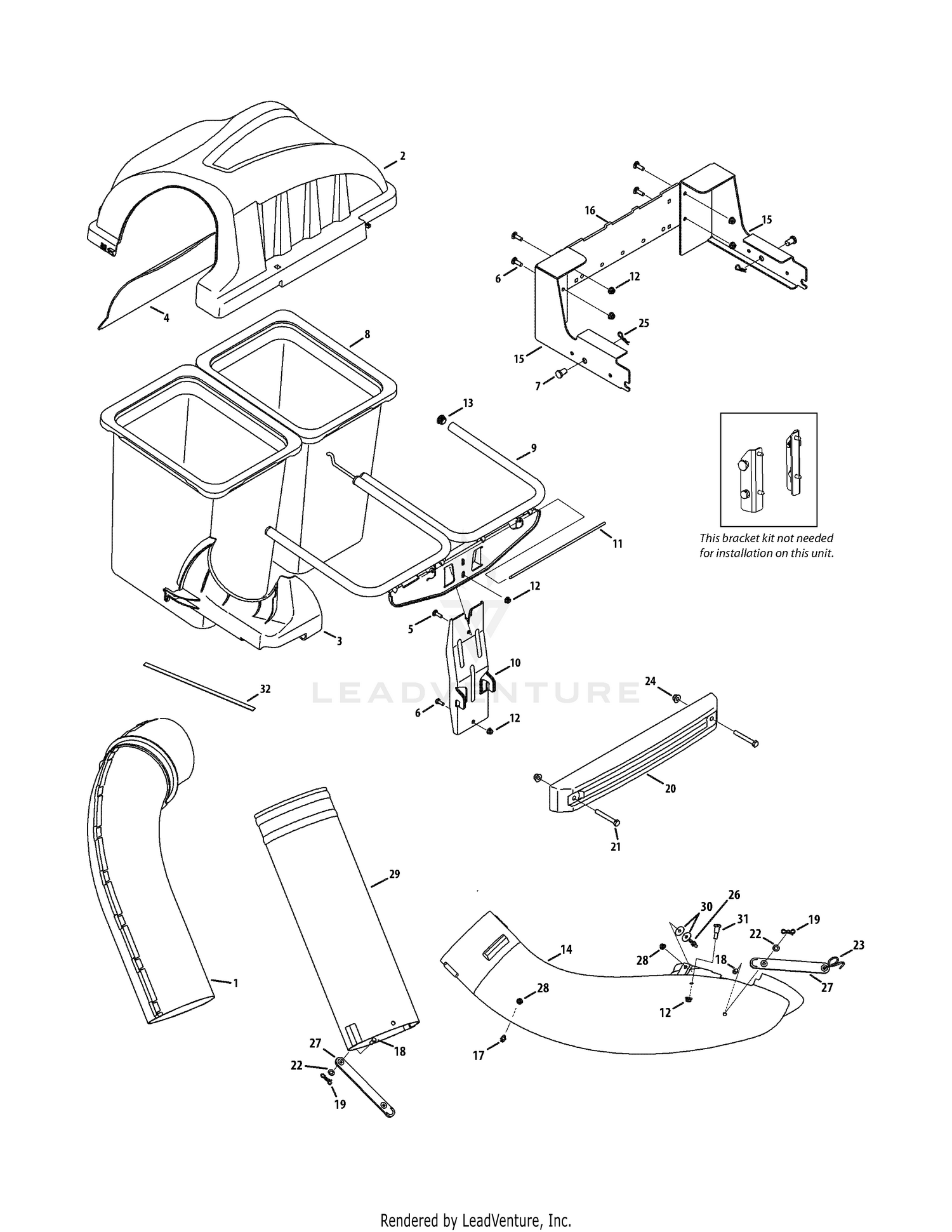

| Ref | Part Number | Description |
|---|
| 1 |
931-04291A |
UPPER CHUTE ASSEMBLY This part replaces 931-04291. Price: $106.94 |
| 2 |
931-04292 |
Twin Bagger Cover Assembly Price: $129.14 |
| 3 |
731-06497 |
Upper Chute Support Price: $31.91 |
| 4 |
731-06504 |
Bagger Cover Screen Price: $15.49 |
| 5 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00" Price: $3.68 |
| 6 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 7 |
911-0332 |
Clevis Pin, .50" Dia. Price: $14.98 |
| 8 |
964-05104 |
GRASSBAG ASSEMBLY W/ HARD BOTTOM (STD) This part replaces 964-04096A. Price: $83.90 |
| 9 |
683-04461B-0637 |
DOUBLE BAGGER SUPPORT (POWDER BLACK) This part replaces 683-04461A-0637. Price: $182.57 |
| 10 |
683-04519B-0637 |
VERTICAL SUPPORT BRACKET This part replaces 683-04519-0637. Price: $125.78 |
| 11 |
711-04988 |
Cover Hinge Pin Price: $11.08 |
| 12 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 13 |
735-0246A |
End Plug Price: $5.01 |
| 14 |
731-06099B |
Discharge Chute Elbow Price: $96.06 |
| 16 |
783-06168 |
Universal Cross Bracket Price: $114.90 |
| 17 |
911-04069 |
Grass-catcher Pin Price: $7.81 |
| 18 |
711-05063 |
Clevis Pin 5/16 x 3/4 Price: $3.21 |
| 19 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 20 |
719-04271A |
Bagger Weight Price: $221.36 |
| 21 |
710-3022 |
Hex Head Screw, 3/8 - 16 x 2.75 Price: $4.09 |
| 22 |
736-0204 |
Flat Washer, .344 x .62 x .033 Price: $3.89 |
| 23 |
732-04510A |
Torsion Spring Hook Price: $4.19 |
| 24 |
712-04065 |
Flange Lock Nut, 3/8 - 16 Price: $3.68 |
| 25 |
714-04023 |
Internal Cotter Pin, .080 x 1.56 This part replaces 914-04023. Price: $3.90 |
| 26 |
711-05049 |
Grass-catcher Pin Price: $7.57 |
| 27 |
723-04008A |
Chute Strap Price: $8.86 |
| 28 |
912-3027 |
Flange Lock Nut, 1/4-20 Price: $3.85 |
| 29 |
731-06668 |
Bagger Chute Adapter, 7 In. Price: $70.62 |
| 30 |
736-0176 |
Fl-Wash. .27" I.D. x .948" This part replaces 936-0176. Price: $3.95 |
| 31 |
738-0754 |
Shoulder Screw Price: $3.76 |
