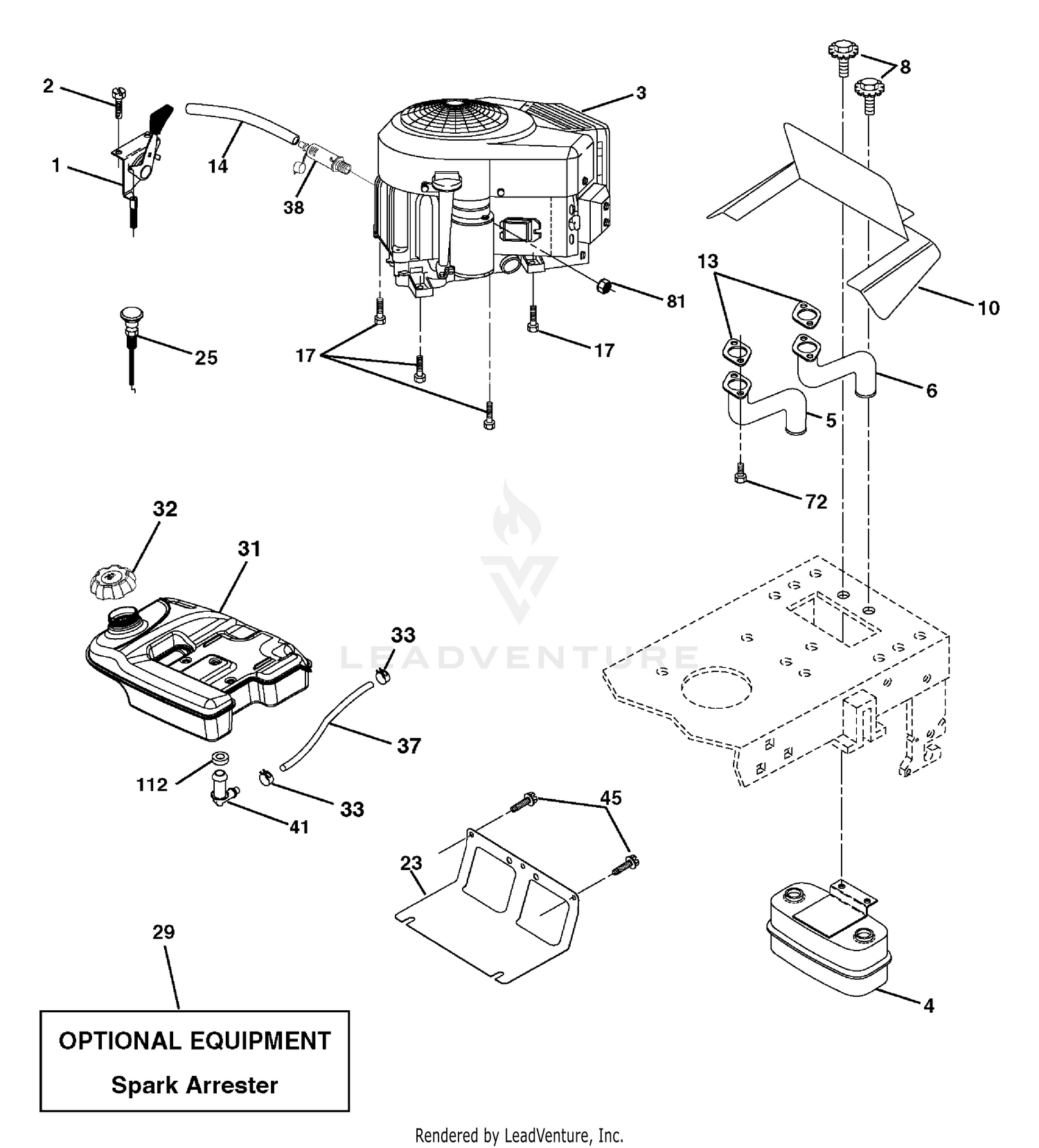

| Ref | Part Number | Description |
|---|
| 1 |
104-3987 |
HOOD ASM Price: $1,626.91 |
| 1 |
175437X428 |
Control, Throttle/Choke Price: Call Us |
| 2 |
191611 |
Screw Hex Single Lead 10 x 3/4 Price: Call Us |
| 2 |
66-1210 |
DECAL Price: $27.06 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
149723 |
Muffl er Price: Call Us |
| 4 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 5 |
159955 |
Tube Exhaust LH Price: Call Us |
| 5 |
76-2260 |
PAD-FOOTREST Price: $8.40 |
| 6 |
160589 |
Tube Exhaust RH Price: Call Us |
| 6 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 7 |
76-2200-03 |
FOOTREST-PEDAL, TRACTION Price: $42.73 |
| 8 |
171877 |
Bolt 5/16-18 unc x 3/4 w/Sems Price: Call Us |
| 8 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 9 |
93-6779-03 |
FOOTREST-RH Price: $85.60 |
| 10 |
146629 |
Shield Heat Muffl er Price: Call Us |
| 10 |
32128-33 |
NUT-HF Price: $0.25 |
| 11 |
93-6778-01 |
FENDER-RH Price: $334.53 |
| 12 |
32128-44 |
NUT Price: $2.69 |
| 13 |
104-4074 |
STUD-LATCH Price: $33.87 |
| 13 |
165391 |
Muffl er Gasket Price: Call Us |
| 14 |
148456 |
Tube Oil Drain Price: Call Us |
| 14 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 15 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 16 |
104-4062-01 |
SHIELD-FRONT, RH Price: $27.14 |
| 17 |
17060624 |
Screw 3/8-16 x 1-1/2 Price: Call Us |
| 17 |
93-6780-03 |
HINGE ASM Price: $51.74 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 19 |
256-320 |
BUSHING-NYLON Price: $7.44 |
| 20 |
93-6742-03 |
BRACKET-HOOD, PIVOT Price: $12.30 |
| 21 |
3217-6 |
NUT-HEX Price: $1.19 |
| 22 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 23 |
169837 |
Shield, Browning/Debris Guard Price: Call Us |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
83-8510-01 |
BRACKET-FENDER, LEFT Price: $24.64 |
| 25 |
187766X428 |
Control Choke Price: Call Us |
| 25 |
83-9800-01 |
GRASS SHIELD-FRONT, LH Price: $28.36 |
| 26 |
94-5056 |
DECAL Price: $7.84 |
| 27 |
93-6776-01 |
FENDER-LH Price: $317.84 |
| 28 |
93-7267 |
DECAL-BRAKE Price: $6.37 |
| 29 |
137180 |
Arrester, Spark Price: Call Us |
| 29 |
83-9710-03 |
FOOTREST-PEDAL, TRACTION Price: $78.54 |
| 30 |
83-9840 |
PAD-FOOT Price: $60.60 |
| 31 |
179022 |
Tank, Fuel Price: Call Us |
| 31 |
322-3 |
SCREW-HH Price: $0.79 |
| 32 |
179124X428 |
Cap Gauge, Fuel Price: Call Us |
| 32 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 33 |
123487X |
Clamp, Hose Blk Price: Call Us |
| 34 |
104-3968-03 |
BRACKET-HOOD Price: $21.11 |
| 36 |
104-4078 |
COLLAR-LATCH Price: $33.94 |
| 37 |
104-4079 |
BRACKET-SPRING Price: $12.32 |
| 37 |
8543R |
Line, Fuel Price: Call Us |
| 38 |
104-4080 |
SPRING-EXTENSION Price: $23.06 |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 39 |
3290-360 |
SCREW-HH Price: $4.34 |
| 40 |
3290-145 |
SCREW Price: $5.39 |
| 41 |
139277 |
Stem Tank Fuel Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 72 |
183906 |
Screw 5/16-18 x 1 Price: Call Us |
| 81 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
