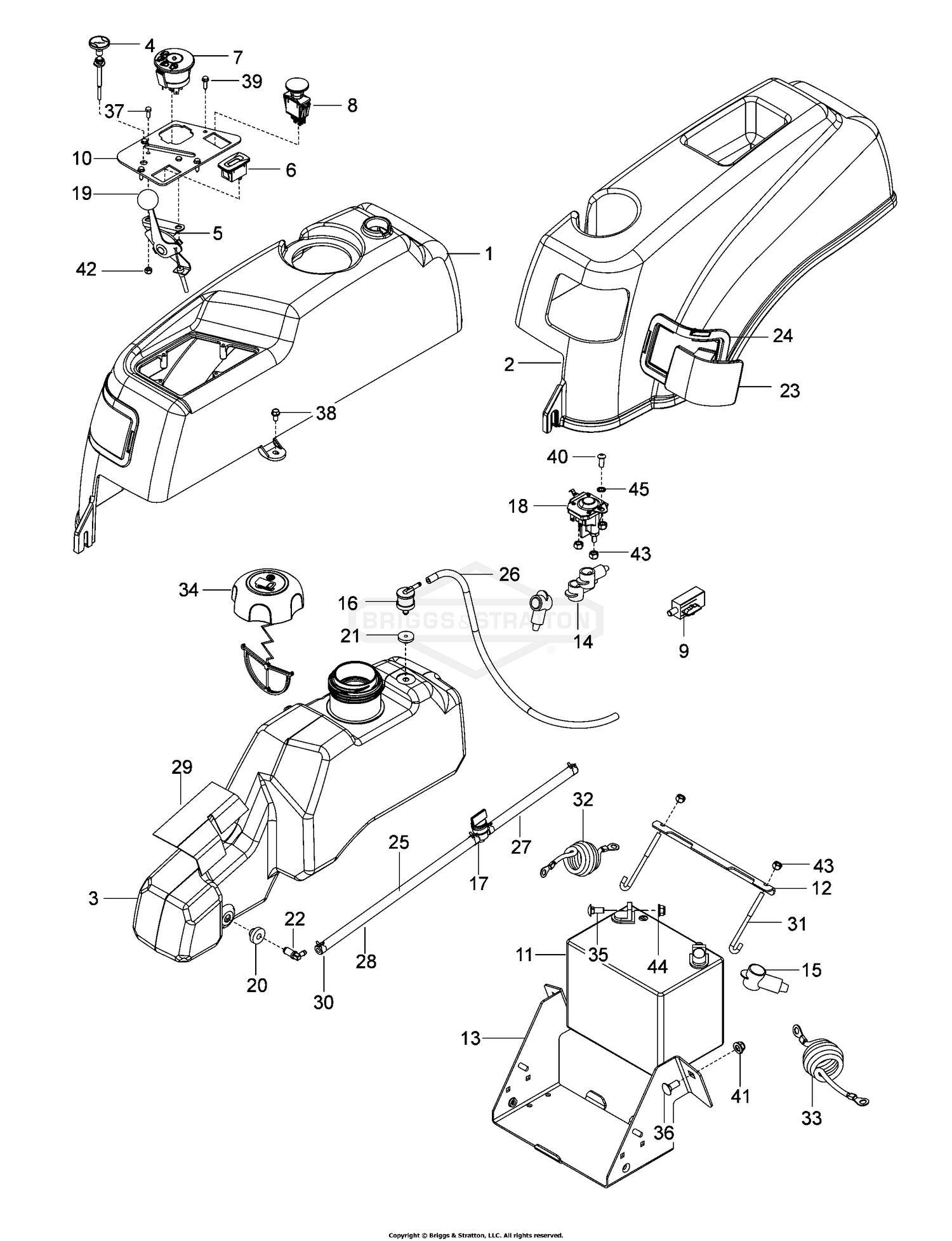

| Ref | Part Number | Description |
|---|
| 1 |
84005775 |
FENDER, Right Price: $184.99 |
| 2 |
84005776 |
FENDER, Left Price: $187.49 |
| 4 |
84005778 |
ROD, Choke Price: $67.99 |
| 5 |
84005779 |
CONTROL, Throttle Price: $64.99 |
| 6 |
84004235 |
GAUGE, Service Minder Hour Meter Price: Call Us |
| 7 |
84005780 |
SWITCH, Ignition Price: Call Us |
| 8 |
84005781 |
SWITCH, PTO Price: $29.99 |
| 9 |
705118 |
Switch Interlock Clutch Cable Price: $31.75 |
| 10 |
84005782 |
PLATE, Control Panel Price: $11.10 |
| 11 |
84005783 |
BATTERY Price: $329.99 |
| 12 |
84005784 |
HOLD DOWN, Battery Price: $20.99 |
| 13 |
84005785 |
TRAY, Battery Price: $46.99 |
| 14 |
705010 |
Cover, Terminal Price: $5.58 |
| 15 |
84005787 |
CAP, Battery, Red Price: $9.79 |
| 16 |
84005788 |
VALVE, Check Price: $44.22 |
| 17 |
84005789 |
VALVE, Fuel Shut Off Price: $81.99 |
| 18 |
84004010 |
SOLENOID Price: $30.48 |
| 19 |
84005790 |
KNOB, Control Price: $33.99 |
| 20 |
84005791 |
GROMMET Price: $10.37 |
| 21 |
84005792 |
GROMMET Price: $7.59 |
| 22 |
84005793 |
ELBOW Price: $17.79 |
| 23 |
84005794 |
PANEL, Left Price: $17.43 |
| 23 |
84005795 |
PANEL, Right Price: $17.43 |
| 24 |
84005796 |
TRIM (Left) Price: $8.12 |
| 24 |
84005797 |
TRIM (Right) Price: $8.01 |
| 26 |
84005799 |
HOSE, Vapor (3/16" x 3") Price: $7.59 |
| 27 |
84005804 |
HOSE, Fuel (1/4" X 10") Price: $7.29 |
| 28 |
84005805 |
HOSE, Fuel (1/4" X 18") Price: $7.49 |
| 29 |
84005806 |
HEATSHIELD Price: $55.99 |
| 30 |
704997 |
Clamp Hose Price: $4.29 |
| 31 |
84005807 |
HOOK (Battery) Price: $7.09 |
| 32 |
84005808 |
CABLE, Battery, Black Price: $18.29 |
| 33 |
84005809 |
CABLE, Battery, Red Price: $15.59 |
| 34 |
84004237 |
CAP, Fuel Price: $82.99 |
| 35 |
84005866 |
BOLT, 5/16-18 X 3/4 GR. 5 ZD Price: $4.49 |
| 36 |
84005868 |
BOLT, 3/8-16 X 1 ROUND HD SQ NECK Price: $6.99 |
| 37 |
84005911 |
CAPSCREW, 10-24 X 1/2 Price: $6.99 |
| 38 |
84005912 |
SCREW, 1/4-20 X 1/2 HEX SELF TAP Price: $6.99 |
| 39 |
84005913 |
SCREW, 10-24 X 3/4 WASHER HEAD Price: $9.69 |
| 40 |
84005914 |
SCREW, 1/4-20 X 5/8 BUTTON SOCKET Price: $6.99 |
| 41 |
84005880 |
LOCKNUT, 3/8-16 HEX FLANGE NYLOC Price: $4.29 |
| 42 |
84005915 |
LOCKNUT, 10-24 HEX NYLOC Price: $4.29 |
| 43 |
84005877 |
LOCKNUT, 1/4-20 HEX NYLOC Price: $4.70 |
| 44 |
84005875 |
LOCKNUT, 5/16-18 HEX FLANGE NYLOC Price: Call Us |
| 45 |
84005916 |
WASHER, Locking, 1/4 INTERNAL LOCK Price: $6.99 |
