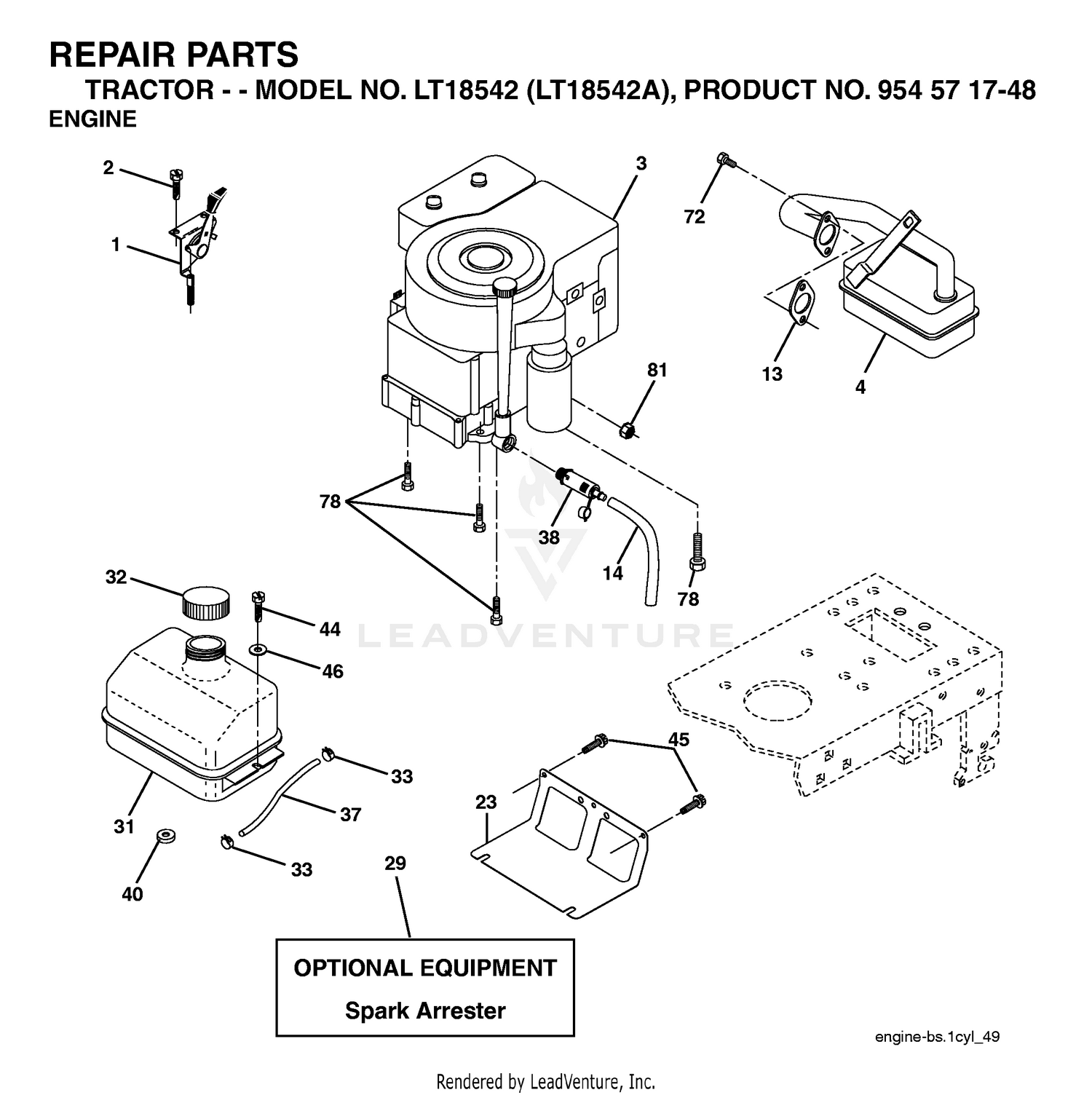

| Ref | Part Number | Description |
|---|
| 1 |
32128-39 |
NUT-HHF Price: $0.70 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
104-1051-03 |
PLATE-SPINDLE Price: $59.54 |
| 4 |
127-6389 |
DECK CHAMBER SERVICE ASM This part replaces 115-3479. Price: $1,496.66 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 5 |
237-161 |
O-RING Price: $6.06 |
| 6 |
121-3666 |
SPINDLE ASM This part replaces 115-3435. Price: $391.32 |
| 8 |
107-0235-03 |
BLADE-ATOMIC Price: $40.07 |
| 8 |
108-9026 |
BLADE-27", COMBO This part replaces 108-9026-03. Price: $33.66 |
| 9 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 10 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 11 |
108-9025-0P |
BAFFLE-MULCHING This part replaces 108-9025-01. Price: $80.48 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 72 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
