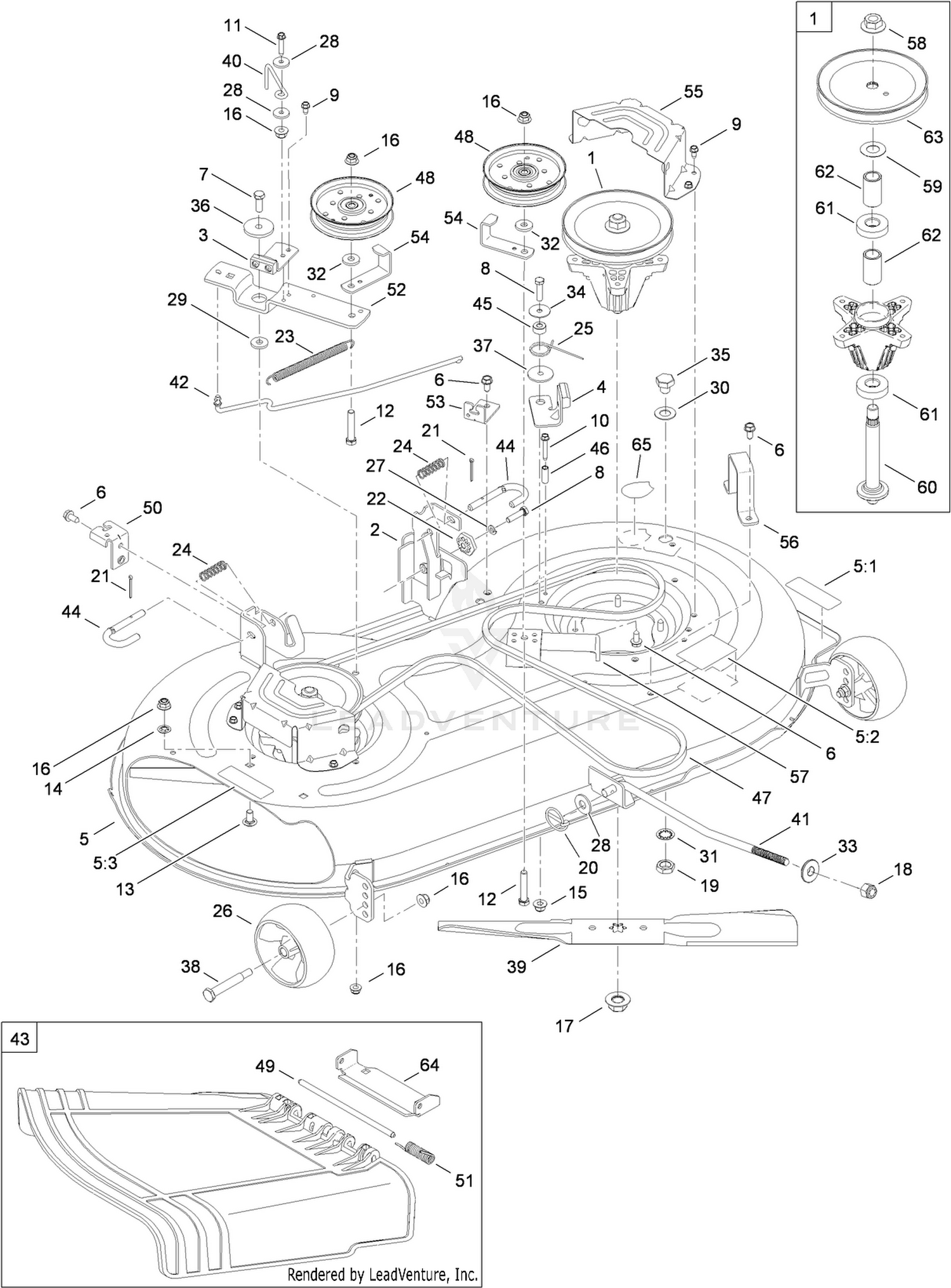

| Ref | Part Number | Description |
|---|
| 1 |
119-8445 |
SPINDLE PULLEY ASM Price: $103.13 |
| 2 |
112-0413 |
LH HANGER BRACKET ASM Price: $38.86 |
| 3 |
119-8446 |
DECK BRAKE ASM Price: $27.71 |
| 4 |
119-8447 |
DECK BRAKE ASM Price: $30.49 |
| 5 |
119-8448 |
DECK ASM Price: $363.22 |
| 6 |
112-6070 |
SCREW-TAP Price: $3.24 |
| 7 |
112-0492 |
SCREW-HH Price: $3.38 |
| 8 |
112-0373 |
SCREW-HH Price: $3.50 |
| 9 |
112-0524 |
SCREW-HWHTF Price: $3.48 |
| 10 |
121-5742 |
WASHER-FLAT Price: $4.41 |
| 11 |
112-0587 |
SCREW-TAP Price: $3.52 |
| 12 |
112-0421 |
SCREW-HH Price: $3.52 |
| 13 |
112-0452 |
BOLT-CARR Price: $3.52 |
| 14 |
112-0440 |
NUT-PUSH Price: $3.06 |
| 15 |
112-0650 |
NUT-LOCK, FLANGE Price: $3.42 |
| 16 |
112-0668 |
NUT-LOCK, FLANGE Price: $3.38 |
| 17 |
112-0330 |
NUT-LOCK, FLANGE Price: $5.46 |
| 18 |
119-8449 |
NUT Price: $4.18 |
| 19 |
112-0351 |
NUT-HEX Price: $4.96 |
| 20 |
119-8450 |
PIN-LYNCH Price: $9.64 |
| 21 |
112-0412 |
PIN-COTTER Price: $3.50 |
| 22 |
112-0327 |
GEAR-ADJUSTMENT, DECK Price: $12.35 |
| 23 |
119-8473 |
SPRING-EXTENSION Price: $14.52 |
| 24 |
119-8451 |
SPRING-CMPRSSN Price: $5.95 |
| 25 |
121-5737 |
SPRING-COMPRESSION Price: $11.52 |
| 26 |
112-0677 |
WHEEL-DECK, FRONT Price: $16.41 |
| 27 |
112-0366 |
DISCONTINUED Price: Call Us |
| 28 |
119-8453 |
WASHER-FLAT Price: $4.13 |
| 29 |
119-8454 |
WASHER-FLAT Price: $4.13 |
| 30 |
112-0339 |
WASHER-FLAT Price: $3.50 |
| 31 |
112-0643 |
WASHER-LOCK Price: $3.52 |
| 32 |
112-0541 |
WASHER-FLAT Price: $3.52 |
| 33 |
119-8455 |
WASHER-BELLVILLE Price: $6.37 |
| 34 |
112-0500 |
WASHER-FLAT Price: $3.52 |
| 35 |
112-0577 |
PLUG Price: $7.27 |
| 36 |
112-0584 |
SPACER-SHOULDER Price: $21.03 |
| 37 |
112-0410 |
SPACER-SHOULDER Price: $3.50 |
| 38 |
112-0325 |
BOLT-SHOULDER Price: $8.96 |
| 39 |
119-8456 |
BLADE Price: $27.35 |
| 40 |
119-9140 |
ROD-KEEPER, BELT Price: $5.40 |
| 41 |
119-8457 |
ROD-LIFT, DECK Price: $24.14 |
| 42 |
119-8458 |
ROD-BRAKE Price: $12.68 |
| 43 |
119-8459 |
CHUTE ASM Price: $53.21 |
| 44 |
112-0436 |
PIN-HANDLE, DECK RELEASE Price: $10.77 |
| 45 |
121-5743 |
SHOULDER-SPACER Price: $4.76 |
| 46 |
112-0644 |
DISCONTINUED Price: Call Us |
| 47 |
112-0340 |
BELT - V Price: $63.36 |
| 48 |
112-0314 |
PULLEY-IDLER Price: $37.20 |
| 49 |
119-8461 |
PIN-HINGE Price: $8.68 |
| 50 |
119-8462 |
BRACKET-CABLE, DECK ENGAGE Price: $5.67 |
| 51 |
119-8463 |
SPRING-TORSION Price: $6.37 |
| 52 |
119-8464 |
BRACKET-PIVOT, IDLER Price: $22.36 |
| 53 |
119-8465 |
BRACKET-CABLE, DECK ENGAGE Price: $5.95 |
| 54 |
119-8466 |
BRACKET-GUARD, BELT Price: $20.50 |
| 55 |
119-8467 |
COVER-BELT Price: $9.05 |
| 56 |
119-8468 |
STOP-LH Price: $26.30 |
| 57 |
119-8469 |
BRACKET-SUPPORT, IDLER Price: $8.88 |
| 58 |
112-0330 |
NUT-LOCK, FLANGE Price: $5.46 |
| 59 |
112-0813 |
WASHER-THRUST Price: $3.52 |
| 60 |
112-6278 |
SHAFT-SPINDLE Price: $37.62 |
| 61 |
112-0377 |
BEARING-BALL Price: $17.50 |
| 62 |
112-6252 |
SPACER Price: $4.52 |
| 63 |
112-0613 |
PULLEY-DECK Price: $27.17 |
| 64 |
119-9069 |
BRACKET-CHUTE Price: $20.09 |
