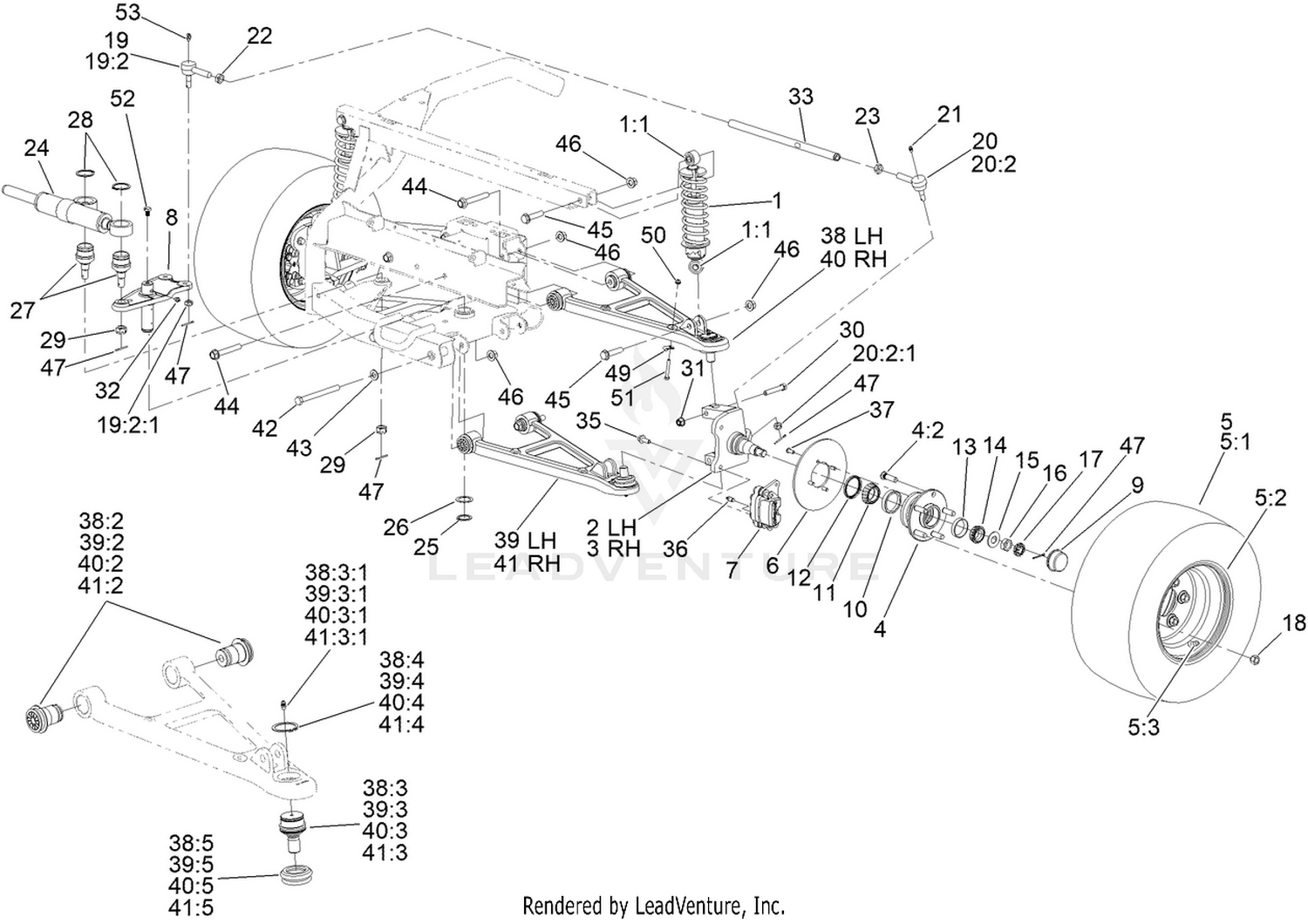

| Ref | Part Number | Description |
|---|
| 1 |
147-3170 |
SHOCK ASM - COIL OVER Price: $125.84 |
| 2 |
147-3160 |
SPINDLE, LH Price: $178.36 |
| 3 |
147-4654 |
SPINDLE, RH Price: $178.36 |
| 4 |
117-8071 |
HUB ASM Price: $188.63 |
| 5 |
125-0763 |
TIRE AND WHEEL ASM Price: $368.30 |
| 6 |
136-6295 |
ROTOR-BRAKE Price: $44.10 |
| 7 |
127-7424 |
BRAKE CALIPER ASM Price: $199.13 |
| 8 |
137-1602 |
PITMAN ARM (MACH) Price: $172.66 |
| 10 |
254-107 |
CUP-BEARING, TAPERED Price: $9.93 |
| 11 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 12 |
108-7019 |
SEAL-SHAFT Price: $9.73 |
| 13 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 14 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 15 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 16 |
3220-7 |
NUT-JAM Price: $4.09 |
| 17 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 18 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 19 |
112772-03 |
JOINT-BALL, RH Price: $77.99 |
| 20 |
112771-03 |
JOINT-BALL, LH Price: $77.99 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 22 |
3220-11 |
NUT-JAM Price: $0.81 |
| 23 |
3218-21 |
NUT-JAM Price: $3.19 |
| 24 |
125-0720 |
CYLINDER-HYDRAULIC, STEERING Price: $785.46 |
| 25 |
32151-77 |
RING-RETAINING, EXTERNAL Price: $4.07 |
| 26 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 27 |
117-9875 |
JOINT-BALL Price: $97.28 |
| 28 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 29 |
32136-2 |
NUT-SHH Price: $3.55 |
| 30 |
324-10 |
SCREW-HH Price: $1.97 |
| 31 |
114-8417 |
NUT-HF, NI Price: $0.87 |
| 32 |
302-52 |
FITTING-GREASE Price: $1.49 |
| 33 |
115-7654 |
TIE ROD Price: $75.18 |
| 35 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 36 |
119-9509 |
SCREW-BLEED Price: $7.10 |
| 37 |
3274-55 |
SCREW-HSBH Price: $3.19 |
| 38 |
125-8021 |
LH UPPER CONTROL ARM ASM Price: $397.13 |
| 39 |
125-8022 |
LH LOWER CONTROL ARM ASM Price: $450.09 |
| 40 |
125-8023 |
RH UPPER CONTROL ARM ASM Price: $397.13 |
| 41 |
125-8024 |
RH LOWER CONTROL ARM ASM Price: $450.09 |
| 42 |
325-22 |
SCREW-HH Price: $4.26 |
| 43 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 44 |
114-8419 |
SCREW-HHF Price: $4.17 |
| 45 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 46 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 47 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 49 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 50 |
104-7201 |
NUT-HF Price: $0.69 |
| 51 |
321-11 |
SCREW-HH Price: $0.36 |
| 52 |
302-60 |
FITTING-GREASE Price: $2.26 |
