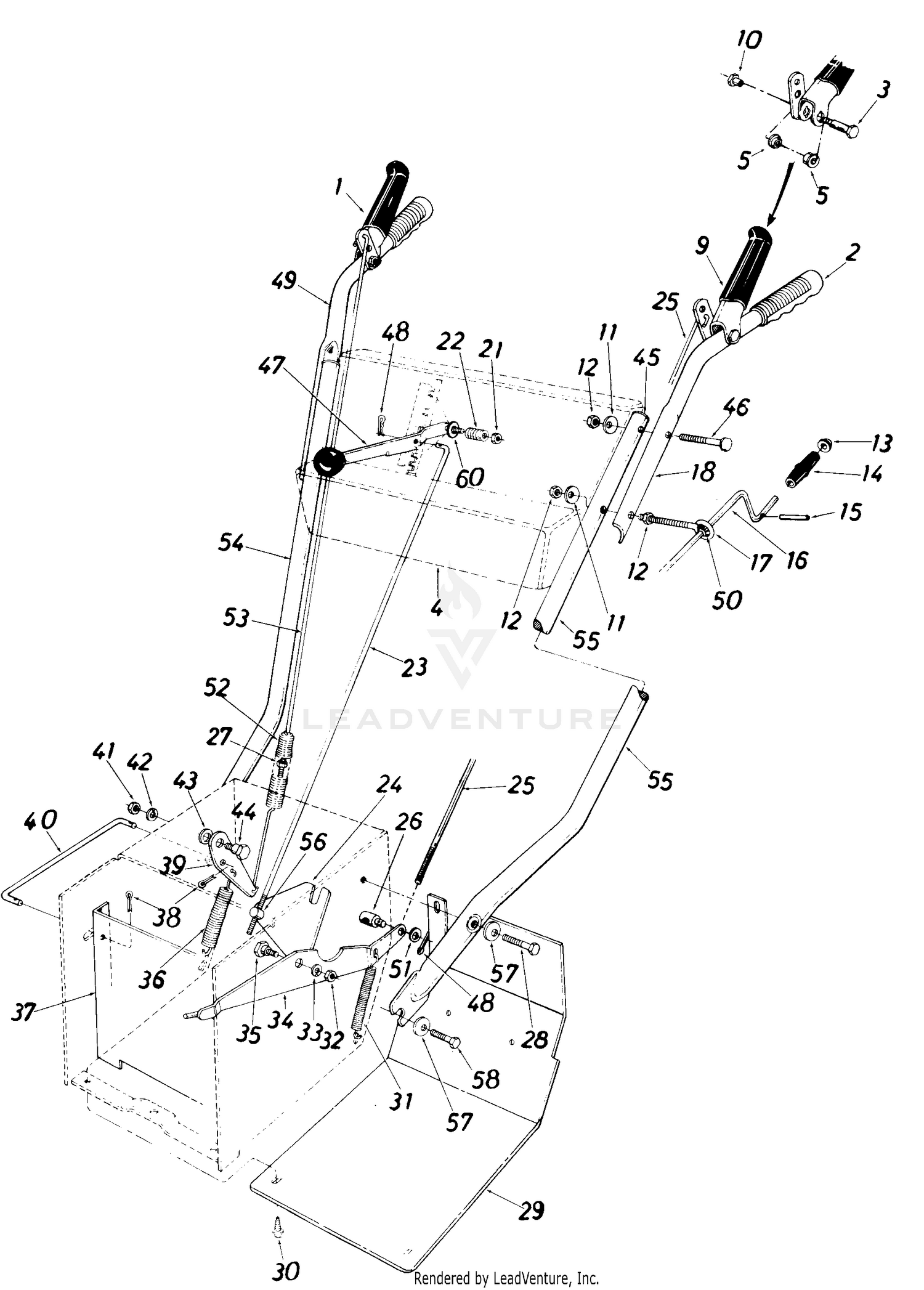

| Ref | Part Number | Description |
|---|
| 1 |
05988 |
GRIP ASSEMBLY- Not Available Price: |
| 2 |
720-04083 |
Grip This part replaces 720-0180. Price: $12.95 |
| 3 |
938-0560 |
Shoulder Bolt .374 Dia. x 1.53" Lg. This part replaces 738-0560. Price: $9.09 |
| 4 |
705-5072 |
HANDLE PANEL ASSEMBLY Not Available Price: |
| 5 |
741-0402 |
BEARING-FL Not Available Price: |
| 9 |
05987 |
Clutch Grip Ass'y.-L.H. Price: Call Us |
| 10 |
938-0561 |
SHOULDER NUT Not Available This part replaces 738-0561. Price: |
| 11 |
736-0242 |
Bell-Wash 34" I.D. x .88" O D Price: $3.75 |
| 12 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 13 |
726-0100 |
Push Nut 3/8" Rod Price: $3.75 |
| 14 |
720-0201A |
Chute Crank Knob This part replaces 720-0201. Price: $9.62 |
| 15 |
915-0138 |
Rolled Pin, 1/8 x .63 This part replaces 715-0138. Price: $4.17 |
| 16 |
05980 |
CHUTE CRANK ASS'Y. Not Available Price: |
| 17 |
747-0416 |
BOLT-EYE Not Available Price: |
| 18 |
749-0593 |
HANDLE-UPPER-LH Not Available Price: |
| 21 |
712-0116 |
Hex Ins. Jam L-Nut 3/8-24 Thd . Price: $3.95 |
| 22 |
732-0193 |
Compression Spring .50" O.D. x .88" Lg. Price: $4.11 |
| 23 |
747-0356 |
ROD-SHIFT Not Available Price: |
| 25 |
747-0452 |
CLUTCH ROD Not Available Price: |
| 26 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 27 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. Price: $3.38 |
| 28 |
710-3144 |
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) This part replaces 710-0427. Price: $4.02 |
| 29 |
05899 |
Frame Cover Price: Call Us |
| 30 |
710-0599 |
Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 31 |
932-0320 |
Extension Spring .38" O.D. x 3.25" Lg. This part replaces 732-0320. Price: $8.98 |
| 32 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 33 |
736-0169 |
IL-Wash. 3/8" I.D. Price: $3.33 |
| 34 |
784-5050 |
BRACKET-AUG CLUTCH Not Available Price: |
| 35 |
738-0281 |
Shld. Bolt .625" Dia. x .170 Price: $9.16 |
| 36 |
932-0121 |
Extension Spring .73" O.D. x 4.31 0 Lg. This part replaces 732-0121. Price: $13.21 |
| 37 |
05878 |
Drive Pulley Support Brkt. Ass'y. Price: Call Us |
| 38 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Lg. Price: $3.93 |
| 39 |
05501 |
BRACKET-DR Not Available Price: |
| 40 |
10080 |
ROD-VAR SP Not Available Price: |
| 41 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 42 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 43 |
736-0264 |
Fl-Wash. .34" I.D. x .75" O.D. Price: $5.99 |
| 44 |
738-0281 |
Shld. Bolt .625" Dia. x .170 Price: $9.16 |
| 45 |
731-0496 |
PLUG Not Available Price: |
| 46 |
710-0487 |
Carriage Bolt 5/16-18 x 2.0" Lg. Price: $6.17 |
| 47 |
05694 |
HANDLE-SHI Not Available Price: |
| 48 |
714-0104 |
Int. Cotter Pin 5/16" Dia. Price: $3.90 |
| 49 |
749-0594 |
HANDLE-FOLDING-RH Not Available Price: |
| 50 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 51 |
736-0264 |
Fl-Wash. .28" I.D. x .62" O.D. Price: $5.99 |
| 52 |
732-0184 |
Extension Spring .75" O.D. x 5.00" Lg. Price: $23.36 |
| 53 |
747-0154 |
LOCKOUT ROD Not Available Price: |
| 54 |
749-0344 |
LOWER HANDLE (RH) Not Available Price: |
| 55 |
749-0343 |
LOWER HANDLE (LH) Not Available Price: |
| 56 |
711-0628 |
ADJUSTMENT FERRULE Not Available Price: |
| 57 |
736-0105 |
Bell-Wash. .40" I.D. x .88" O.D. Price: $3.96 |
| 58 |
710-0623 |
Hex Wash. Self-Tap Scr. 3/8-16 x .75" Lg. Price: $3.93 |
