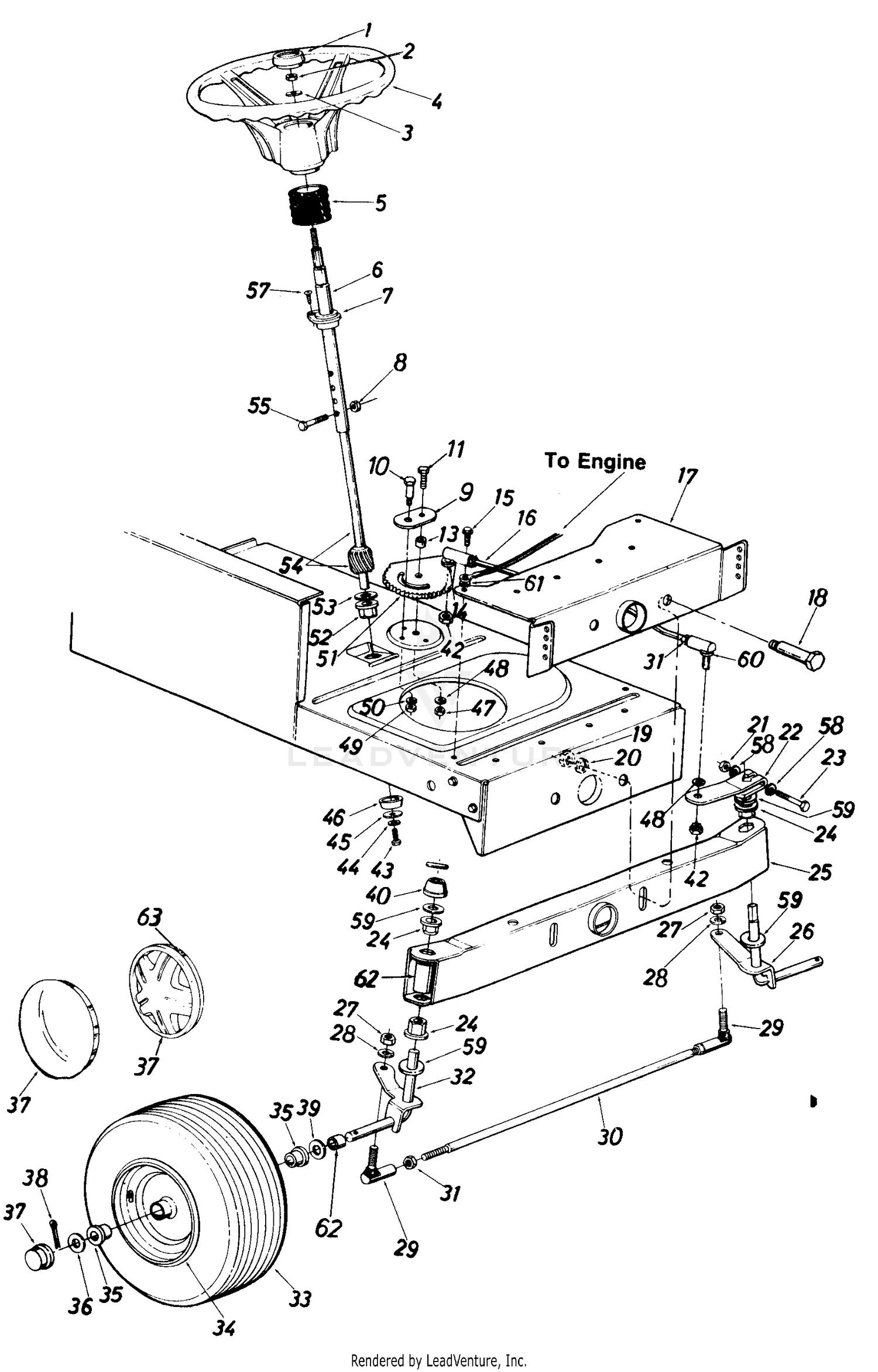

| Ref | Part Number | Description |
|---|
| 1 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 2 |
712-0237 |
Hex L-Nut 5/16-24 Thd. Price: $4.37 |
| 3 |
736-0242 |
Belleville Wash. .345" I.D. Price: $3.75 |
| 4 |
731-0805 |
STEERING WHEEL Not Available Price: |
| 5 |
731-0559B |
STEERING BELLOW Not Available This part replaces 731-0559. Price: |
| 6 |
16512 |
STEERING COLUMN ASS Y. Not Available Price: |
| 7 |
741-0356A |
FLANGE BEARING This part replaces 741-0356. Price: $6.19 |
| 8 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 9 |
783P08577A |
STABILIZER PLATE This part replaces 17198. Price: $6.48 |
| 10 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 11 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 13 |
950-0535 |
Spacer.380" I.D. x .625" O.D. x .227 This part replaces 750-0535. Price: $3.90 |
| 14 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 15 |
710-0726 |
Hex Wash. Hd. Self-Tap Scr. Price: $3.82 |
| 16 |
711-0788 |
STEERING DRAG LINK Not Available Price: |
| 17 |
783-0041C |
PIVOT BAR BRACKET Not Available This part replaces 17621. Price: |
| 18 |
738-0527 |
Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd. Price: $7.90 |
| 19 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 20 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 21 |
712-0237 |
Hex Cent. L-Nut 5/16-24 Thd. Price: $4.37 |
| 22 |
983-0055-0637 |
Steering Arm Front Axle This part replaces 16481. Price: $41.85 |
| 23 |
710-0772 |
Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5) Price: $3.93 |
| 24 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 25 |
753-0642-0637 |
Pivot Bar Ass'y. This part replaces 14608. Price: $112.11 |
| 26 |
N/A |
Front Axle Ass'y.-L.H. |
| 27 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 28 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 29 |
923-3018 |
Ball Joint, 3/8-24 This part replaces 723-3018. Price: $15.50 |
| 30 |
747-0753 |
Tie Rod Price: $29.86 |
| 31 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 32 |
N/A |
Front Axle Ass'y.-R.H. |
| 34 |
N/A |
Front Wheel Rim Only |
| 35 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0487. Price: $6.87 |
| 36 |
736-0285 |
Fl-Wash. .635 I.D. x 1.59 O.D. Price: $3.89 |
| 37 |
931-0484A |
Hub Cap This part replaces 731-0484A. Price: $5.98 |
| 38 |
714-0470 |
Cotter Pin 1/8" Dia. x 1.25" Price: $3.90 |
| 39 |
736-0187 |
Fl-Wash. .640" I.D. x 1.24" O.D. Price: $4.02 |
| 40 |
726-0214 |
Push Cap 5/8" Dia. Rod Price: $9.11 |
| 42 |
712-0711 |
Hex Jam Nut 3/8-24 Thd.* Price: $3.90 |
| 43 |
710-0538 |
Hex L-Bolt 5/16-18 x .62" Price: $4.02 |
| 44 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 45 |
736-0343 |
Fl-Wash. .33" I.D. x 1.25" O.D. Price: $3.90 |
| 46 |
950-0532 |
SPACER Not Available This part replaces 750-0532. Price: |
| 47 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 48 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 49 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 50 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 51 |
717-0622C |
Steering Gear Segment Not Available This part replaces 717-0622. Price: |
| 52 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 53 |
736-0187 |
Fl-Wash. (Hardened) Price: $4.02 |
| 54 |
738-0522A |
STEERING SHAFT-LOWER Price: $66.57 |
| 57 |
710-0837 |
Oval Hd. Cr.-Sunk Scr. #10 x 5/8" Lg. Price: $3.85 |
| 58 |
936-0271 |
SPRING WASHER .317 X .625 X .020 This part replaces 736-0271. Price: $3.93 |
| 59 |
736-0187 |
Fl-Wash. (Hardened) Price: $4.02 |
| 60 |
923-3018 |
Ball Joint, 3/8-24 This part replaces 723-3018. Price: $15.50 |
| 61 |
736-0607 |
Ext. L-Wash. 5/16" I.D. Price: $3.66 |
| 62 |
731-1134 |
Plastic Tube Price: Call Us |
| 17585 |
Front |
Axle Ass"y.-R.H. (13 x 5) This part replaces 17753. Price: $61.80 17585 |
