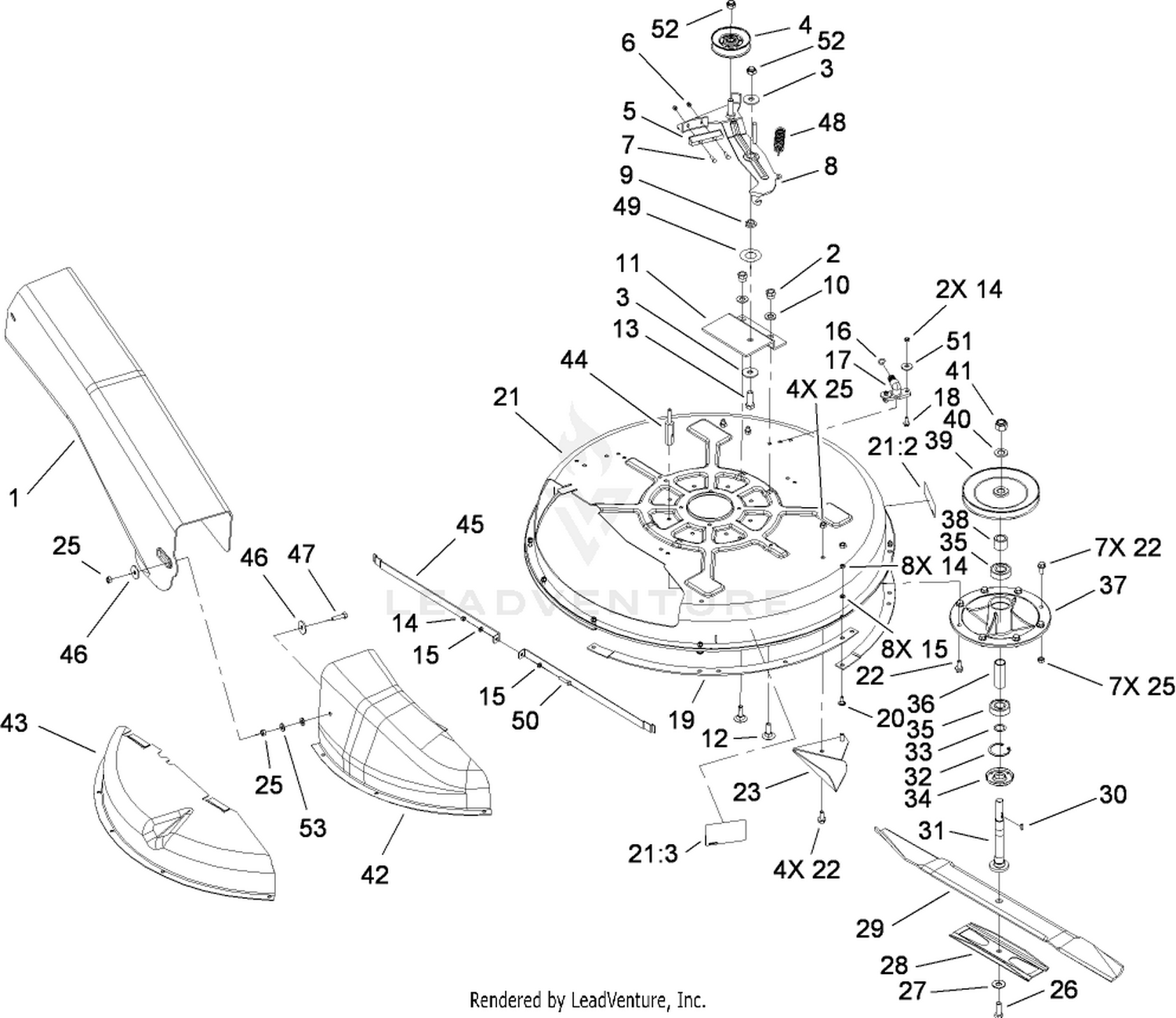

Deck and Spindle Assembly
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-2970 | Tube-Discharge Price: Call Us |
| 2 | 46-0090 | NUT-LOCK Price: Call Us |
| 3 | 106-2922 | Washer-Flat Price: Call Us |
| 4 | 106-1813 | PULLEY-IDLER Price: Call Us |
| 5 | 106-1814 | Brake-Rubber Price: Call Us |
| 6 | 46-0410 | NUT-LOCK Price: $3.53 |
| 7 | 60-6910 | SCREW-HH Price: $0.25 |
| 8 | 114-3209 | BRAKE ASM Price: Call Us |
| 9 | 106-2892 | Bushing Price: Call Us |
| 10 | 33096-00 | WASHER-FLAT Price: $1.76 |
| 11 | 106-2884 | Bracket-Deck Price: Call Us |
| 12 | 33126-035 | SCREW-CARR Price: $11.95 |
| 13 | 33116-035 | SCREW-HH Price: $7.33 |
| 14 | 33023-00 | NUT-LOCK This part replaces 49-7810. Price: $0.25 |
| 15 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 16 | 106-1847 | O-Ring Price: Call Us |
| 17 | 133-9289 | FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 18 | 33103-016 | SCREW-HHF Price: $5.18 |
| 19 | 80-4490-03 | RING-DECK This part replaces 80-4490. Price: $12.87 |
| 20 | 106-6510 | Screw-Sh Price: Call Us |
| 21 | 106-6545 | DECK ASM Price: Call Us |
| 22 | 33104-020 | SCREW-HHF Price: $2.07 |
| 23 | 80-2630-03 | KICKER This part replaces 80-2630. Price: $21.21 |
| 25 | 46-0330 | NUT-LOCK Price: $0.60 |
| 26 | 3212-5 | SCREW-HH Price: $2.46 |
| 27 | 106-2858 | Washer-Bell Price: Call Us |
| 28 | 80-4570-03 | STIFFENER This part replaces 80-4570. Price: $18.39 |
| 29 | 106-6547 | Blade-Recycler Price: Call Us |
| 30 | 106-1805 | Key Price: Call Us |
| 31 | 106-2902 | SHAFT-SPINDLE Price: Call Us |
| 32 | 106-2910 | Ring-Snap Price: Call Us |
| 33 | 106-1807 | Spacer Price: Call Us |
| 34 | 80-4370 | SHIELD-BEARING Price: $9.92 |
| 35 | 251-297 | BEARING-BALL Price: $18.54 |
| 36 | 106-2888 | DISCONTINUED Price: Call Us |
| 37 | 56-7030 | DISCONTINUED Price: Call Us |
| 38 | 106-1842 | Spacer Price: Call Us |
| 39 | 106-1812 | PULLEY Price: Call Us |
| 40 | 33098-00 | WASHER-FLAT Price: $0.68 |
| 41 | 106-2914 | Nut-Hex Price: Call Us |
| 42 | 106-2898 | Tunnel-Discharge Price: Call Us |
| 43 | 106-2899 | Cover-Recycler Price: Call Us |
| 44 | 106-2897 | Guide-Belt Price: Call Us |
| 45 | 106-6542 | STRAP-DECK Price: Call Us |
| 46 | 106-2855 | Washer-Flat Price: Call Us |
| 47 | 33114-030 | SCREW-HH Price: $0.50 |
| 48 | 106-1838 | Spring-Extension Price: Call Us |
| 49 | 106-2893 | Spacer Price: Call Us |
| 50 | 33113-030 | SCREW-HH Price: $0.54 |
| 51 | 106-2865 | Washer-Flat Price: Call Us |
| 52 | 106-6513 | Nut-Lock Price: Call Us |
