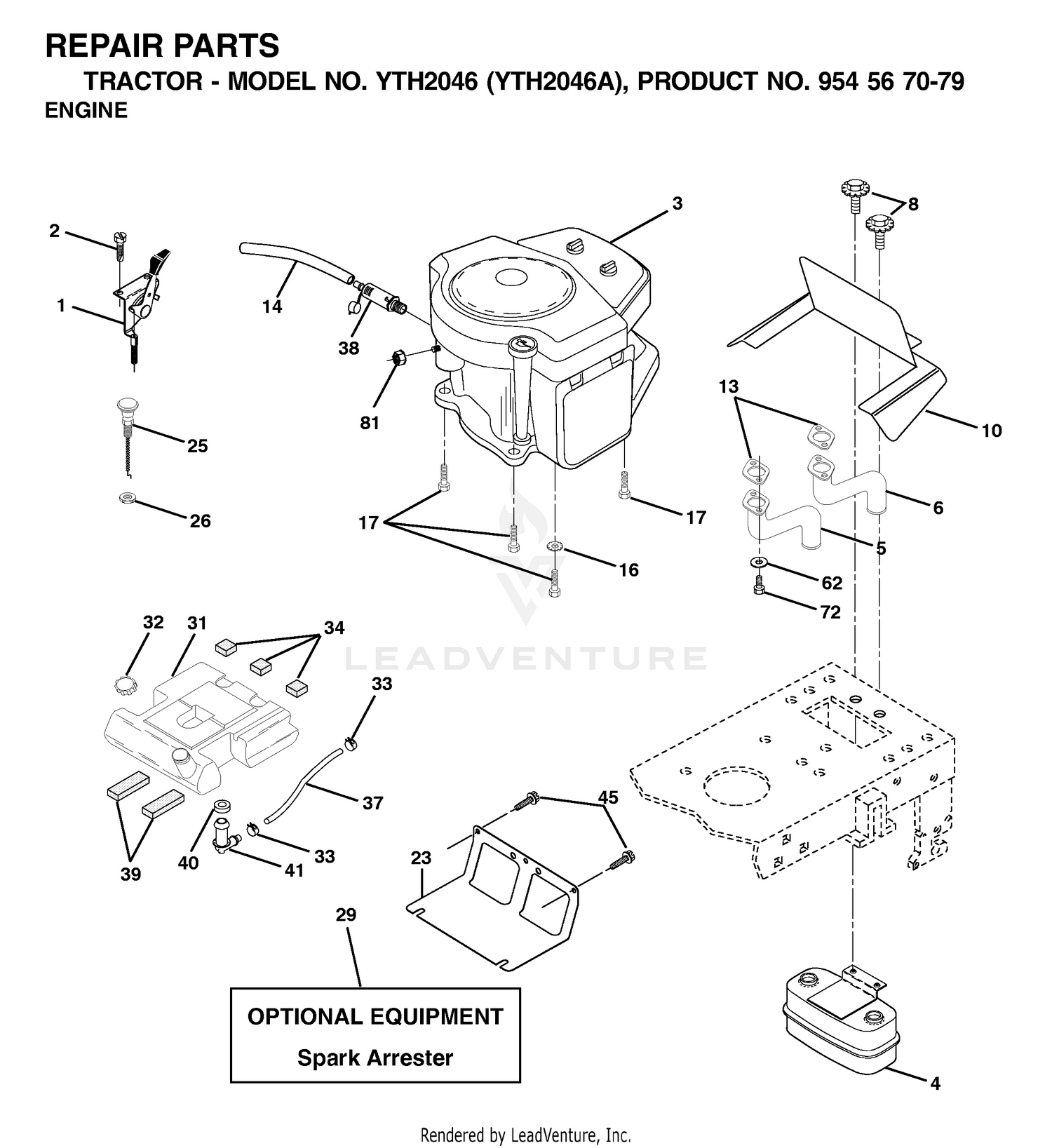

| Ref | Part Number | Description |
|---|
| 1 |
532170771 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
105-9844 |
VALVE-RELIEF Price: $245.44 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
117-2399 |
RELIEF VALVE-PROPORTIONAL Price: $610.26 |
| 5 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 6 |
115-5400 |
SOLENOID VALVE ASM Price: $292.59 |
| 6 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 7 |
107-7517 |
VALVE-SOLENOID Price: $218.46 |
| 8 |
112-9206 |
SOLENOID VALVE ASM Price: $205.77 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
115-5405 |
SOLENOID VALVE ASM Price: $395.12 |
| 10 |
110-0497 |
COIL-SOLENOID Price: $115.49 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532162797. Price: $11.99 |
| 11 |
110-6344 |
COIL-12V, DC Price: $141.08 |
| 12 |
117-4757 |
ORIFICE-DISK, .063 Price: $23.49 |
| 13 |
117-4756 |
ORIFICE-FLOW CONTROL, .080 Price: $23.49 |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532145996 |
CONTROL, CHOKE Price: $19.99 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532151346 |
FUEL TANK 3.5G Price: $84.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
