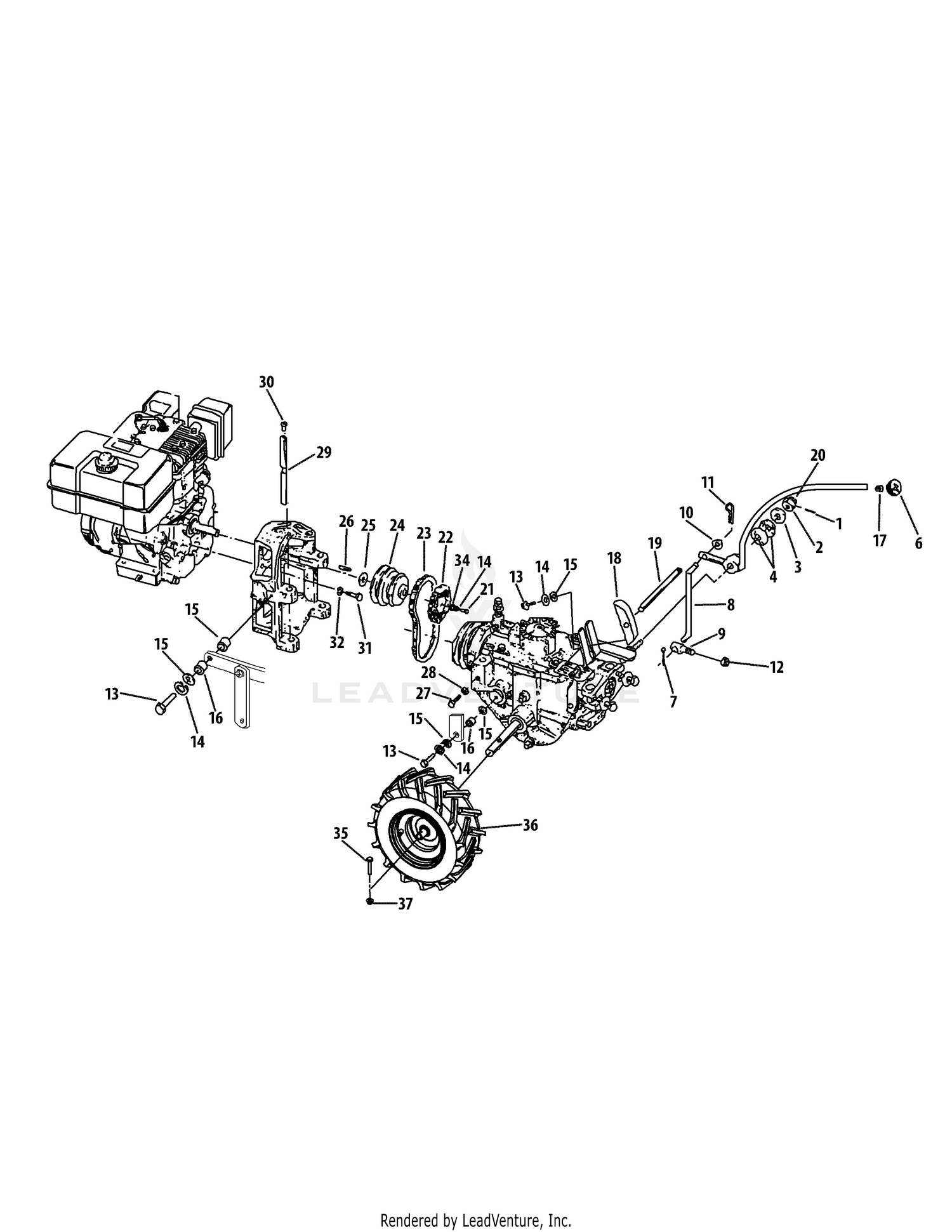

| Ref | Part Number | Description |
|---|
| 1 |
GW-9362 |
Spring Pin, 1/8" Price: $3.82 |
| 2 |
736-0326 |
Flat Washer, .510 x 1.0 x .125 Price: $3.89 |
| 3 |
GW-9934 |
Shoulder Washer, 1/2" Price: $13.73 |
| 4 |
GW-9932 |
Disc Spring Washer Price: $21.54 |
| 5 |
GW-2628 |
LEVER - wheel speed shift This part replaces GW-2178. Price: $124.90 |
| 6 |
1902240 |
Knob Price: $20.45 |
| 7 |
GW-9317 |
Cotter Pin, 3/32" x 1" Price: $3.22 |
| 8 |
N/A |
Connecting rod |
| 9 |
GW-1033 |
Swivel Price: $13.56 |
| 10 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 11 |
714-04048 |
Hair Pin Cotter Price: $7.04 |
| 12 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces 712-0158. Price: $2.83 |
| 13 |
710-0514 |
Hex Bolt, 3/8 -16 x 1" Price: $3.78 |
| 14 |
736-0169 |
Spring Lockwasher, 3/8 " Price: $3.33 |
| 15 |
736-3050 |
Flat Washer, 3/8 " Price: $3.90 |
| 16 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53 |
| 17 |
GW-9120 |
Retaining Ring Price: $5.94 |
| 18 |
GW-2102A |
BELT ADJUSTMENT BLOCK This part replaces GW-2102. Price: $43.50 |
| 19 |
GW-2100 |
Belt Adjustment Rod Price: $11.28 |
| 20 |
712-3012A |
HEX NUT This part replaces 712-3012. Price: $11.49 |
| 21 |
710-0539 |
Hex Bolt, 3/8 -24 x 1.75 Price: $3.95 |
| 22 |
756-04171 |
Reverse Disc Price: $58.85 |
| 23 |
GW-9245 |
Forward Drive Belt Price: $21.83 |
| 24 |
619-04124 |
Engine Power Take-off Pulley Price: $135.20 |
| 25 |
736-04192 |
Flat Washer, .766 x 1.0 x .031 Price: $5.94 |
| 26 |
GW-9303 |
Engine Pulley Key, 3/16"x 2-1/2" Price: $3.22 |
| 27 |
710-0376 |
Hex Bolt, 5/16-18 x 1" Price: $3.66 |
| 28 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 29 |
GW-1034A |
BAR- engine mounting This part replaces GW-1034. Price: $41.06 |
| 30 |
GW-9147 |
Thread Protector Plug Price: $7.05 |
| 31 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces 710-04458. Price: $3.85 |
| 32 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 33 |
719-04222-0637 |
Motor Mount This part replaces 719-04222. Price: $274.62 |
| 34 |
736-3052 |
Flat Washer, .406 x 1.0 x .105 Price: $4.02 |
| 35 |
710-0606 |
Hex Screw, 1/4-20 x 1-1/2" Price: $4.67 |
| 36 |
934-04231 |
WHEEL ASSEMBLY (16 X 4.6 X 8) This part replaces 634-04231. Price: $226.23 |
