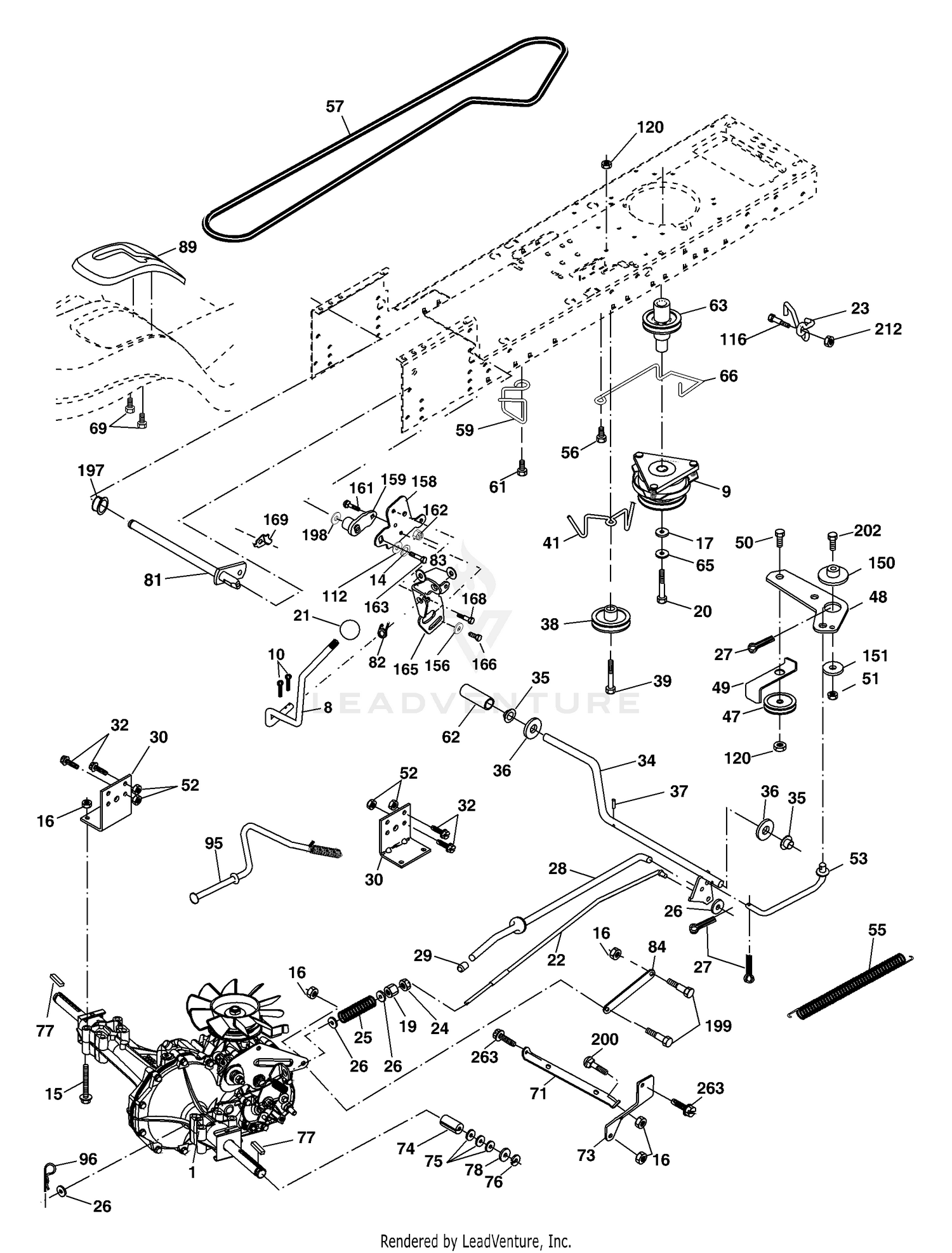

| Ref | Part Number | Description |
|---|
| A |
117-6988 |
CHARGE PUMP KIT This part replaces 38-2670. Price: $1,753.04 |
| 1 |
92-5716 |
SECTION-CENTER Price: $2,472.04 |
| 2 |
46-7310 |
SPRING Price: $18.78 |
| 4 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 6 |
25-2450 |
PLATE-SWASH, VARIABLE Price: $896.81 |
| 7 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 8 |
532165866 |
Rod Shift Fender Price: $22.99 |
| 9 |
532174367 |
Clutch Electric Price: $360.99 |
| 10 |
251-8 |
BEARING-BALL Price: $30.06 |
| 10 |
876020416 |
Pin Cotter 1/8 x 1 CAD Price: $3.99 |
| 11 |
94-2975 |
SEAL-SHAFT Price: $24.63 |
| 12 |
28-3640 |
SHAFT-PUMP Price: $1,171.13 |
| 13 |
38-2680 |
PIN Price: $23.93 |
| 14 |
28-3520 |
O-RING Price: $8.44 |
| 14 |
810040400 |
Washer Lock Hvy Helical Price: $3.99 |
| 15 |
874490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: $2.99 |
| 16 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 unc Price: $2.69 |
| 17 |
532126197 |
Washer 1-1/2 OD x 15/32 ID x .250 Price: $4.99 |
| 19 |
25-2460 |
PLUG-HH Price: $37.38 |
| 19 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 20 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 21 |
25-2460 |
PLUG-HH Price: $37.38 |
| 21 |
532140845 |
Knob Price: $8.99 |
| 22 |
28-3400 |
O-RING Price: $6.67 |
| 22 |
532169498 |
Rod, Brake Hydro Price: $11.99 |
| 23 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 23 |
532190736 |
Bracket Anti-Rot This part replaces 532178289. Price: $4.99 |
| 24 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
819131316 |
Washer Price: $2.99 |
| 27 |
876020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: $3.99 |
| 28 |
532175765 |
Rod, Parking Brake Price: $3.99 |
| 28 |
83-3880 |
PIN-SPRING Price: $2.29 |
| 29 |
532071673 |
Cap, Parking Brake Price: $3.99 |
| 30 |
28-3670 |
SHAFT-TRUNNION Price: $149.64 |
| 30 |
532169592 |
Bracket, Transaxle Price: $3.99 |
| 32 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 34 |
532175578 |
Shaft, Foot Pedal Nibbed Price: $19.99 |
| 35 |
532120183 |
Bearing, Nylon Price: $2.99 |
| 36 |
819211616 |
Washer Price: $3.99 |
| 37 |
532002882 |
DRIVE PIN This part replaces 532124963. Price: $2.99 |
| 38 |
532179114 |
Pulley, Idler, Flat Composite Price: $19.99 |
| 39 |
872110622 |
Bolt 3/8-16 x 2-3/4 Gr. 5 Price: $3.99 |
| 41 |
532175556 |
Keeper, Belt Idler Fool-Proof Price: $5.99 |
| 42 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 43 |
110-3051 |
PLATE-VALVE Price: $684.62 |
| 47 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 47 |
532139245 |
Pulley, Idler V Groove This part replaces 532127783. Price: $22.99 |
| 48 |
532154407 |
Bellcrank Clutch Grnd Drv Stl Price: $4.99 |
| 49 |
532123205 |
Retainer, Belt Price: $3.99 |
| 49 |
83-7260 |
CONE-RELIEF, CHARGE This part replaces 67-8070. Price: $50.57 |
| 50 |
28-3480 |
BEARING Price: $74.83 |
| 50 |
872110612 |
Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5 Price: $3.99 |
| 51 |
873680600 |
Nut Price: $1.99 |
| 52 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
Spring, Return, Clutch Price: $7.99 |
| 56 |
817060620 |
Screw 3/8-16 x 1-1/4 Price: $3.99 |
| 57 |
532140294 |
V-Belt, Ground Drive Price: $25.99 |
| 59 |
532169691 |
Keeper, Center Span Price: $14.99 |
| 61 |
817490614 |
Screw Hex Thdrol. 3/8-16 x 7/8 This part replaces 817120614. Price: Call Us |
| 62 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 63 |
532175417 |
Pulley, Engine Price: $38.99 |
| 65 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 66 |
532154778 |
Keeper Belt Engine Hydro Price: $8.99 |
| 69 |
532142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 unc Price: $3.99 |
| 69 |
93-4133 |
SEAL-LIP Price: $37.43 |
| 70 |
25-3210 |
SEAL-LIP This part replaces 103461. Price: $23.14 |
| 71 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 71 |
532169183 |
Strap Torque Lh Hydro Price: $4.99 |
| 73 |
28-3400 |
O-RING Price: $6.67 |
| 73 |
532169182 |
Strap Torque Rh Hydro Price: $7.99 |
| 74 |
532137057 |
Spacer, Axle Price: $3.99 |
| 75 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 76 |
812000001 |
E-Ring Price: $2.99 |
| 77 |
532123583 |
Key, Square Price: $2.69 |
| 78 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 81 |
532165596 |
Shaft Asm. Cross Hydro Price: $25.99 |
| 82 |
532165711 |
Spring Torsion T/A Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532169594 |
Link Transaxle Price: $4.99 |
| 89 |
532188309 |
CONSOLE.SHIFT.STL.AUTO.GREY This part replaces 532191816. Price: $8.99 |
| 95 |
532170201 |
Control Asm. Bypass Hydro Price: $7.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 112 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 116 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 120 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 150 |
532175456 |
Spacer Retainer Price: $3.99 |
| 151 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 156 |
532166002 |
Washer Srrted 5/16 ID x 1.125 Price: $3.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $3.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $4.99 |
| 161 |
872110407 |
BOLT, HEX HEAD This part replaces 872140406. Price: $2.99 |
| 162 |
873680400 |
Nut Crownlock 1/4-20 unc Price: $2.69 |
| 163 |
874780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: $3.99 |
| 165 |
532438250 |
BRACKET.PIVOT.LEVER This part replaces 532165623. Price: $4.99 |
| 166 |
817490510 |
Screw 5/16-18 x 5/8 Price: $2.99 |
| 168 |
532165492 |
Bolt Shoulder 5/16-18 x .561 Price: $3.99 |
| 169 |
532165580 |
Plate Fastening Lt\ Price: $3.99 |
| 197 |
532169613 |
Nyliner Snap-In 5/8" ID Price: $3.99 |
| 198 |
532169593 |
Washer Nyliner 7/8 ID x .105 Price: $4.99 |
| 199 |
532169612 |
Bolt Shoulder 5/16-18 unc Price: $3.99 |
| 200 |
872140508 |
Bolt Rdhd Sq Neck 5/16-18 unc x 1 Price: $2.99 |
| 202 |
872110614 |
Bolt 3/8-16 x 1-3/4 Gr. 5 Price: $3.99 |
| 212 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
| 300 |
110-3052 |
HOUSING ASM Price: $1,923.12 |
| 302 |
353-599 |
PIN-DOWEL Price: $2.65 |
| 308 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 309 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 315 |
25-3300 |
BEARING-NEEDLE Price: $107.05 |
| 324 |
28-3340 |
GASKET Price: $16.81 |
| 326 |
107-4370 |
PLUG-EXPANSION Price: $6.00 |
| 327 |
67-9090 |
PLUG Price: $41.68 |
| 328 |
136-3219 |
PLUG ASM This part replaces 28-3440. Price: $21.54 |
| 336 |
323-10 |
SCREW-HH Price: $0.89 |
| 337 |
75-0110 |
CAPSCREW-HH Price: $2.14 |
| 338 |
28-3530 |
CAPSCREW Price: $4.00 |
| 339 |
49-7830 |
CHECK VALVE KIT Price: $311.16 |
| 339A |
28-3570 |
O-RING Price: $6.06 |
| 339B |
28-3580 |
RING-BACK UP Price: $20.88 |
| 339C |
28-3590 |
O-RING Price: $4.60 |
| 340 |
75-0160 |
PLUG-PIPE Price: $4.39 |
| 342 |
136-3219 |
PLUG ASM This part replaces 28-3440. Price: $21.54 |
| 357 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 358 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 373 |
94-2976 |
RING-RETAINING Price: $6.24 |
| 401 |
49-8200 |
SHAFT-MOTOR Price: $1,051.65 |
| 403 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 406 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 408 |
28-3300 |
BEARING-ROLLER Price: $137.87 |
| 409 |
25-3300 |
BEARING-NEEDLE Price: $107.05 |
| 416 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 419 |
28-3380 |
PLATE-VALVE, MOTOR Price: $468.61 |
