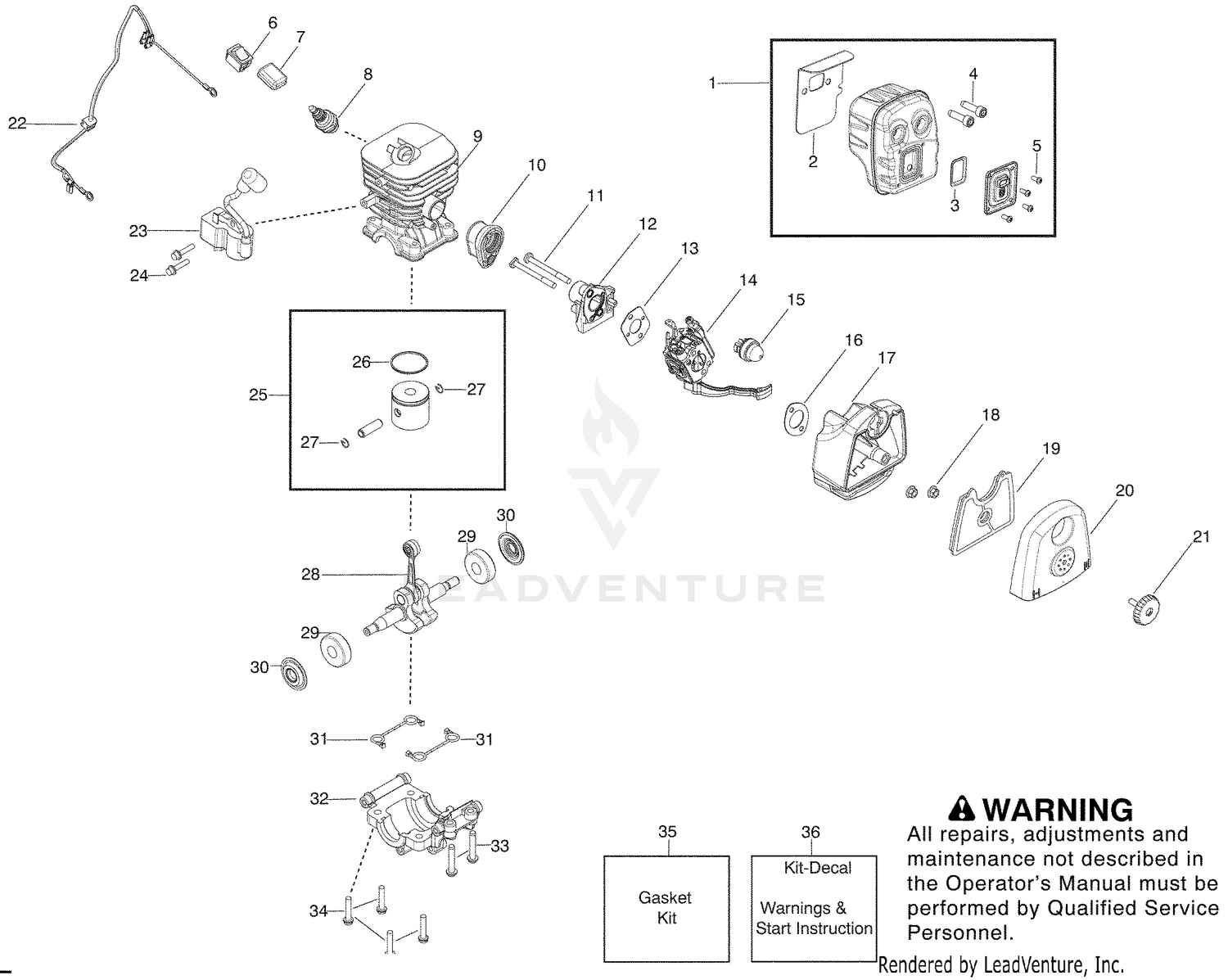

| Ref | Part Number | Description |
|---|
| 1 |
56-6710 |
O-RING Price: $3.82 |
| 2 |
545081813 |
GASKET Price: $14.99 |
| 4 |
530058982 |
BOLT MUFFLER Price: $2.99 |
| 5 |
545227101 |
SCREW 6-19X.437 This part replaces 530015241. Price: $2.99 |
| 6 |
545049301 |
KIT SWITCH Price: $8.99 |
| 7 |
545128201 |
PROTECTOR, SWITCH Price: $3.99 |
| 7 |
94-3011 |
PLUG Price: $14.66 |
| 8 |
530030179 |
PLUG SPARK (RCJ6-Y) This part replaces 952030249. Price: $3.99 |
| 9 |
74-8920 |
WASHER-COPPER Price: $37.32 |
| 10 |
545132501 |
BOOT, CARB Price: $12.99 |
| 10 |
94-3012 |
CAPSCREW Price: $53.01 |
| 11 |
49-2640 |
SEAL-SHAFT Price: $14.83 |
| 11 |
530016187 |
SCREW Price: $3.99 |
| 12 |
545133301 |
PLATE, CARB Price: $5.99 |
| 12 |
60-5890 |
WASHER Price: $4.68 |
| 13 |
545081813 |
GASKET Price: $14.99 |
| 16 |
545081813 |
GASKET Price: $14.99 |
| 17 |
545109801 |
BASE, AIRBOX Price: $6.99 |
| 18 |
530016101 |
NUT Price: $4.99 |
| 19 |
597797901 |
Air Filters This part replaces 545112101. Price: $6.99 |
| 20 |
545109601 |
COVER, AIRBOX This part replaces 545176801. Price: $11.99 |
| 21 |
530059796 |
KNOB ASSY AIRBOX COVER Price: $4.99 |
| 22 |
545108201 |
LEAD WIRE ASSY W/GROUND This part replaces 545108202. Price: $9.99 |
| 23 |
585836101 |
MODULE IGNITION 125B HAOLONG This part replaces 545108101. Price: $27.99 |
| 23 |
94-3013 |
PLUG Price: $123.44 |
| 24 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 26 |
575227901 |
RING PISTON This part replaces 530019283. Price: $5.99 |
| 26 |
94-3014 |
RELIEF VALVE ASM Price: $510.66 |
| 27 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 28 |
545081816 |
KIT, CRANKSHAFT Price: $29.99 |
| 29 |
545013401 |
BEARING RADIAL BALL (6201) Price: $5.99 |
| 30 |
545081815 |
CRANKSHAFT SEAL Price: $7.99 |
| 31 |
545081813 |
GASKET Price: $14.99 |
| 32 |
577929601 |
CAP BEARING This part replaces 545068301. Price: $14.99 |
| 33 |
530015940 |
SCREW Price: $2.99 |
| 34 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
