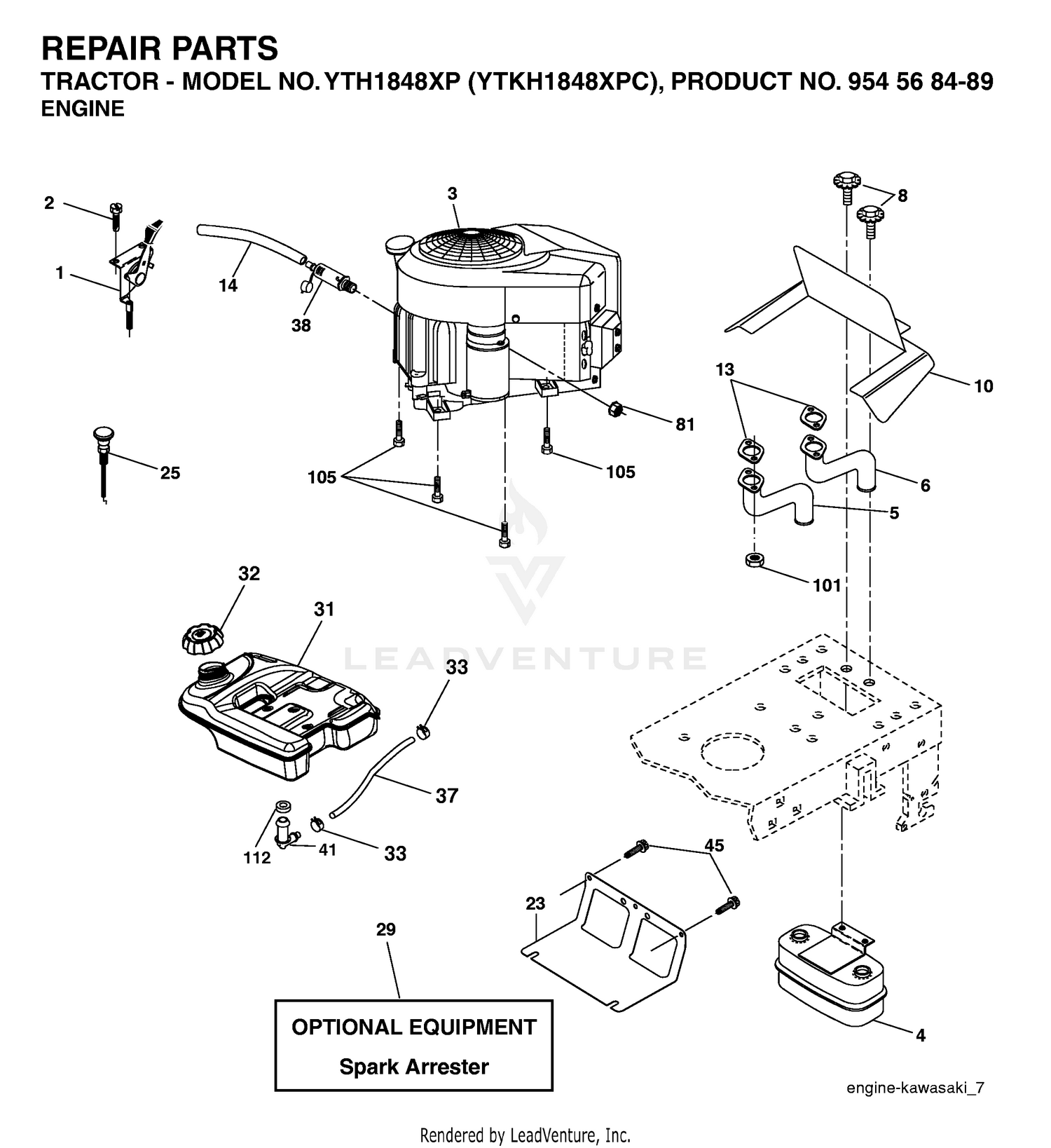

| Ref | Part Number | Description |
|---|
| 1 |
321-2 |
SCREW-HH Price: $2.79 |
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
105-7865 |
TANK-FUEL Price: $764.82 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
95-8881 |
STRAP-LINE, FUEL Price: $12.38 |
| 4 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
125-9171 |
CAP-FUEL This part replaces 114-5064. Price: $46.70 |
| 5 |
532176067 |
EXHAUST.TUBE.LH.KAWASAKI. Price: $99.99 |
| 6 |
532176068 |
EXHAUST.TUBE.RH.KAWASAKI. Price: $99.99 |
| 6 |
95-8968-03 |
SUPPORT-TANK, FUEL Price: $18.87 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 10 |
110-9689 |
PIPE-STAND Price: $24.54 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 12 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 13 |
120-2182-0P |
PLATE-MOUNT, FUEL PUMP This part replaces 120-2182-03. Price: $8.36 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 14 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 16 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 17 |
354-20 |
FITTING-TEE Price: $12.61 |
| 18 |
354-21 |
FITTING-BARBED Price: $6.88 |
| 19 |
354-22 |
FITTING-BARBED Price: $4.64 |
| 20 |
46-6560 |
BUSHING Price: $2.94 |
| 21 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 22 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
110-9044 |
SEPARATOR-FILTER Price: $98.19 |
| 25 |
353-783 |
FITTING-STR Price: $29.05 |
| 26 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 27 |
32128-44 |
NUT Price: $2.69 |
| 28 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
110-6187 |
HOSE-FUEL Price: $14.65 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
110-8751 |
HOSE-FUEL Price: $9.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
110-5701 |
HOSE-FUEL Price: $14.62 |
| 35 |
121-7914 |
HOSE-FUEL Price: $11.97 |
| 37 |
117-4026 |
HOSE-FUEL Price: $4.83 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
121-7852 |
HOSE-FUEL Price: $9.19 |
| 39 |
2412-73 |
CLAMP-R Price: $2.56 |
| 40 |
144-4020 |
KIT-FUEL PUMP, SERVICE This part replaces 110-8806. Price: $192.50 |
| 41 |
110-8817 |
BRACKET-PUMP, FUEL Price: $21.97 |
| 44 |
105-4094 |
HOSE-FORMED Price: $92.07 |
| 45 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
110-8754 |
TRIM Price: $6.70 |
| 47 |
2412-80 |
CLAMP-HOSE Price: $4.39 |
| 52 |
1-543296 |
GROMMET Price: $7.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
