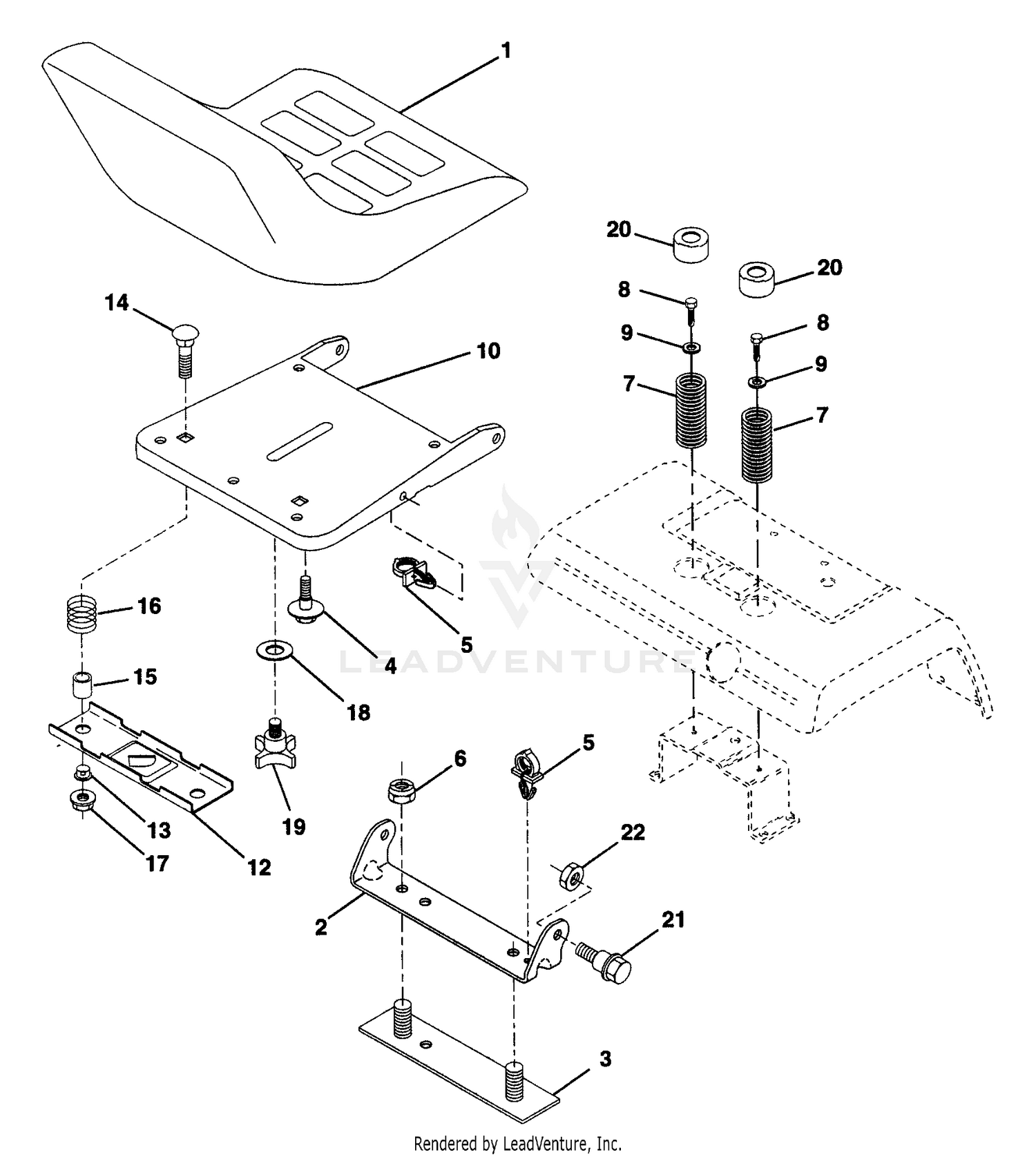

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532141525. Price: $219.99 |
| 1 |
82-9250 |
STUD-THREADED Price: $10.57 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
60-2000 |
PIN Price: $1.13 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 3 |
60-1750-03 |
LEVER-LATCHING, RH Price: $94.34 |
| 4 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 4 |
60-1990 |
BUSHING Price: $14.57 |
| 5 |
47-7010 |
BUSHING-RUBBER Price: $122.81 |
| 5 |
532140407 |
INSULATED CLIP Price: $3.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
60-1820 |
SHAFT-PIVOT, LATCH Price: $134.64 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
74-2920-03 |
CARRIER-FRONT Price: $2,618.36 |
| 8 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 8 |
60-1780-03 |
LEVER-LATCHING, LH Price: $94.34 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
82-9370 |
PAD-STEP, FRONT Price: $19.69 |
| 10 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $17.99 |
| 11 |
60-0670 |
SPRING Price: $19.50 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
82-9360 |
ROD-LATCH Price: $31.36 |
| 14 |
58-2720 |
PIN Price: $49.81 |
| 14 |
872050411 |
Bolt, Carriage 1/4-20 X 1-3/8 Price: $3.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
93-9400 |
DECAL-DANGER Price: $49.59 |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 18 |
322-2 |
SCREW-HH Price: $0.69 |
| 18 |
819171912 |
WASHER Price: $3.99 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 20 |
60-0190 |
STRIP Price: $36.98 |
| 21 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 21 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 22 |
325-2 |
SCREW-HH Price: $1.02 |
| 23 |
3253-7 |
WASHER-LOCK Price: $0.27 |
