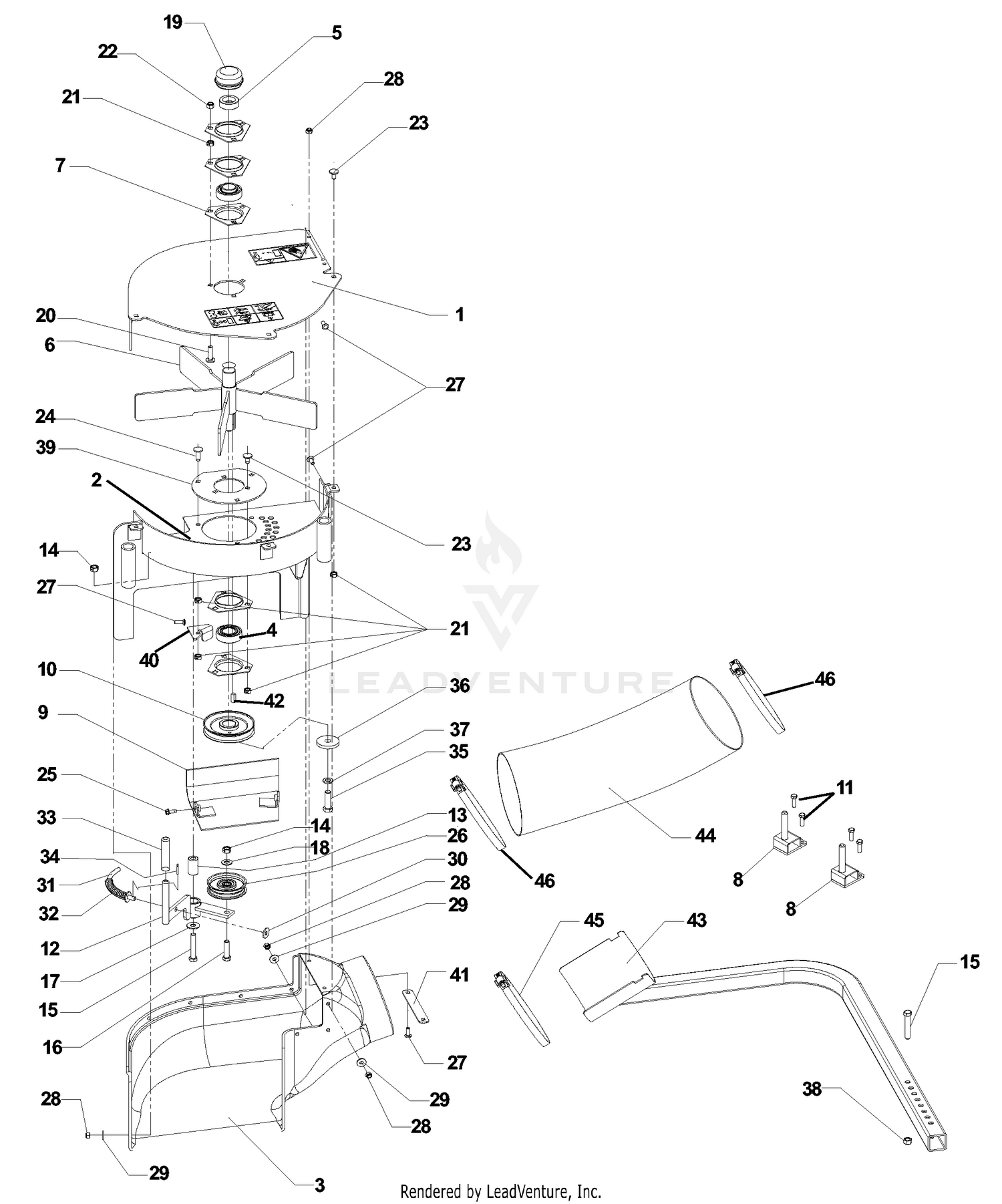

Spindle Drive Assembly

Spindle Drive Assembly

Parts (60)

RefPart NumberDescription
1 539111331 FAN COVER W/DECALS This part replaces 539106752. Price: $179.99
1 82-6460 STUD - SPECIAL This part replaces 75-9540. Price: $16.66
2 539108941 BLOWER HOUSING WELDMENT Price: $399.99
2 65-9900 SEAL-FELT Price: $3.49
3 539109900 LOWER HOUSING Price: $149.99
3 65-9610 ADAPTER Price: $285.92
4 252-110 NEEDLE BEARING W/SEAL Price: $51.96
4 539106786 BEARING KIT-2 PCS Price: $44.99
5 539106786 BEARING KIT-2 PCS Price: $44.99
5 65-9660 DRIVE PIN Price: $13.03
6 539110111 FAN WELDMENT This part replaces 539106707. Price: $179.99
6 65-9670 SPRING-COMPRESSION Price: $6.77
7 539102691 BRG FLANGE Price: $3.99
7 65-9630 DRIVER PULLEY Price: $349.48
8 251-327 BEARING-BALL Price: $21.22
8 539108944 BLOWER PIN WELDMENT ASM. Price: $22.99
9 3290-480 BELLEVILLE WASHER Price: $1.98
9 539108301 COVER PLATE WELDMENT Price: $60.99
10 539106713 SHEAVE 4" Price: $54.99
10 65-9640 DISC-CLUTCH RELEASE Price: $71.20
11 539976941 HCS 3/8C X 1 1/4 GR5 Price: $3.99
11 65-9650 SCREW-SPECIAL Price: $14.95
12 256-300 BUSHING-FLANGED Price: $2.37
12 539106715 IDLER ARM Price: $34.99
13 32110-13 SCREW-HSH Price: $1.76
13 539101836 BUSHING, SLEEVE Price: $2.99
14 595305901 Nuts This part replaces 539990546. Price: $2.99
14 65-9680 CLUTCH KNOB Price: $93.17
15 3256-24 WASHER-FLAT Price: $0.28
15 596564404 Bolts This part replaces 539990629. Price: $2.99
16 539990655 HCS 3/8C X 1 1/2 Price: $3.99
17 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
18 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99
19 595281301 Caps This part replaces 539102535. Price: $4.99
20 596671401 Bolts This part replaces 539100472. Price: $3.99
21 596580701 Nuts This part replaces 539990184. Price: $2.99
22 596583702 Nuts This part replaces 539990717. Price: $2.99
23 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
24 595901501 Bolts This part replaces 539990208. Price: $3.99
25 539990362 SCREW 1/4 X 5/8 Price: $3.99
26 539106721 PULLEY Price: $25.99
27 596238401 BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99
28 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99
29 597338501 Washers This part replaces 539990598. Price: $12.99
30 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99
31 539106801 SPRING ROD WLDMNT Price: $99.99
32 539106720 SPRING Price: $22.99
33 539101050 GRIP Price: $2.99
34 539990037 COTTER PIN 3/32 X 3/4 Price: $2.99
35 539100141 HCS 7/16F X 1 1/2 Price: $7.99
36 596770301 Washers This part replaces 539106504. Price: $4.99
37 596238901 Washers This part replaces 539990247. Price: $2.99
38 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
39 539106809 BEARING PLATE - BLACK Price: $12.99
40 539106811 BELT GUIDE Price: $6.99
41 539106812 BACKING (BLACK) Price: $6.99
42 539102067 KEY 1/4 SQ X 3/4 Price: $2.99
43 539106751 SUPPORT WELDMENT Price: $82.99
44 539106748 HOSE 7 X 82 CLEAR Price: $399.00
45 539097076 HOSE CLAMP 4-1/8 TO 7" Price: $6.99
