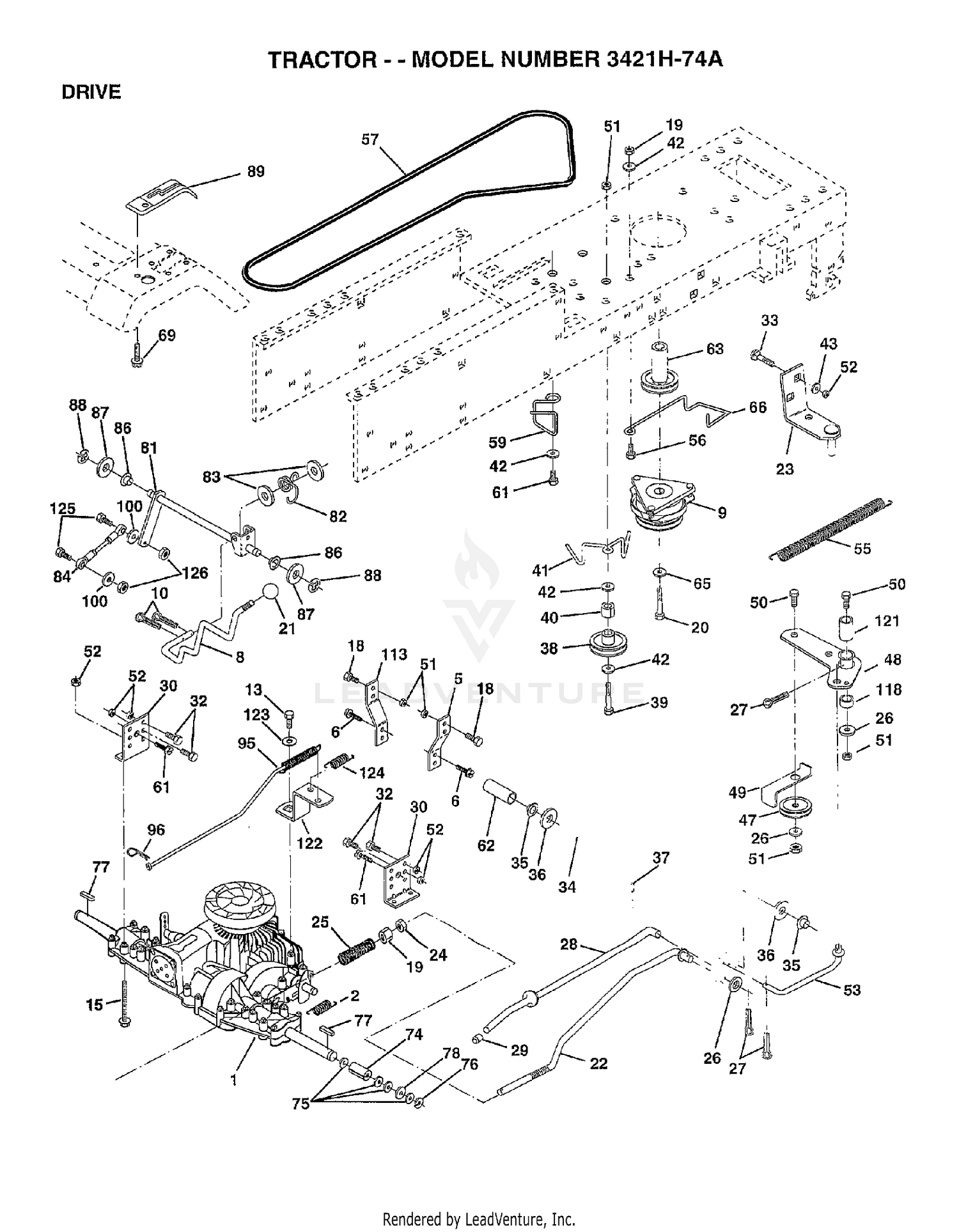

| Ref | Part Number | Description |
|---|
| 1 |
36-9450 |
DISCONTINUED Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 3 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 4 |
3219-3 |
NUT-HEX Price: $0.34 |
| 5 |
19-8510 |
DISCONTINUED Price: Call Us |
| 5 |
532121520 |
STRAP TORQUE Price: $3.99 |
| 6 |
323-5 |
SCREW-HH Price: $0.41 |
| 6 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 7 |
19-7440 |
MUFFLER U-BOLT Price: $54.98 |
| 8 |
532141003 |
Rod Shift Fender YT (AYP part number) Price: $10.40 |
| 8 |
65-4790 |
EXHAUST MUFFLER This part replaces 19-3860. Price: $496.23 |
| 9 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 9 |
532137140 |
Clutch, Electric (AYP part number) Price: $279.99 |
| 10 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 10 |
876020416 |
PIN COTTER Price: $3.99 |
| 13 |
871040412 |
BOLT LT Price: $3.99 |
| 15 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 17 |
532126197 |
WASHER Price: $4.99 |
| 18 |
874780616 |
BOLT Price: $3.99 |
| 19 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 20 |
501606501 |
Speed Clip This part replaces 871170768. Price: $1.99 |
| 21 |
532106933 |
KNOB T (1/2-HOLE) Price: $3.99 |
| 22 |
532130804 |
ROD BRAKE Price: $17.99 |
| 23 |
532137141 |
BRACKET ASM MTG Price: $3.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
819131316 |
WASHER Price: $2.99 |
| 27 |
876020412 |
COTTER PIN Price: $3.99 |
| 28 |
532145204 |
Rod Brake Parking LT/YT (AYP part number) Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $3.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 33 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $17.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 36 |
819211616 |
WASHER LT Price: $3.99 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) Price: $3.99 |
| 38 |
532123674 |
Idler, Flat (AYP part number) This part replaces 532004859. Price: $17.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T This part replaces 532004470. Price: $3.99 |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT This part replaces 532154777. Price: $4.99 |
| 42 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 43 |
819111012 |
WASHER T Price: $3.99 |
| 47 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 48 |
532154604 |
BELLCRANK ASSEMBLY Price: $11.99 |
| 49 |
532123205 |
RETAIN BELT Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 51 |
873680600 |
LOCKNUT Price: $1.99 |
| 52 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 56 |
874760620 |
BOLT Price: $3.99 |
| 57 |
584448801 |
V-BELT,GRD DRIVE This part replaces 532156971. Price: $34.99 |
| 59 |
532136715 |
Keeper Belt Chassis Span Ctr (AYP part number) This part replaces 532104777. Price: $6.79 |
| 61 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 62 |
532008883 |
PEDAL COVER Price: $3.99 |
| 63 |
532140189 |
PULLEY CLU ELEC Price: $29.99 |
| 65 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 66 |
532154778 |
KEEPER BELT ENGINE Price: $8.99 |
| 69 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 74 |
532156972 |
SPACER, AXLE PVST Price: $3.99 |
| 75 |
532121749 |
WASHER Price: $1.99 |
| 76 |
812000001 |
E-RING LT Price: $2.99 |
| 77 |
532123583 |
SQUARE KEY Price: $2.99 |
| 78 |
532121748 |
WASHER Price: $1.99 |
| 81 |
532156969 |
SHAFT ASM CROSS HYDRO Price: $14.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $2.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532156962 |
Price: $34.90 |
| 86 |
532071208 |
BUSHING.STEERING.ROD Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $3.99 |
| 88 |
812000008 |
KLIP RING Price: $3.99 |
| 89 |
532151147 |
Price: $26.78 |
| 95 |
532156970 |
Price: $7.99 |
| 96 |
532004497 |
RETAINER M Price: $5.99 |
| 100 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 113 |
532127285 |
STRAP TORQUE LH LT Price: $3.99 |
| 118 |
532154774 |
Price: $4.99 |
| 121 |
532154419 |
NYLINER CLUTCHING Price: $3.99 |
| 122 |
532156963 |
PLATE BYPASS PVST Price: $2.99 |
| 123 |
TBD |
Price: Call Us |
| 124 |
532156967 |
RETURN SPRING Price: $3.99 |
| 125 |
874780516 |
BOLT.FIN.HEX.5/16-18UNC X 1.00 Price: $3.99 |
