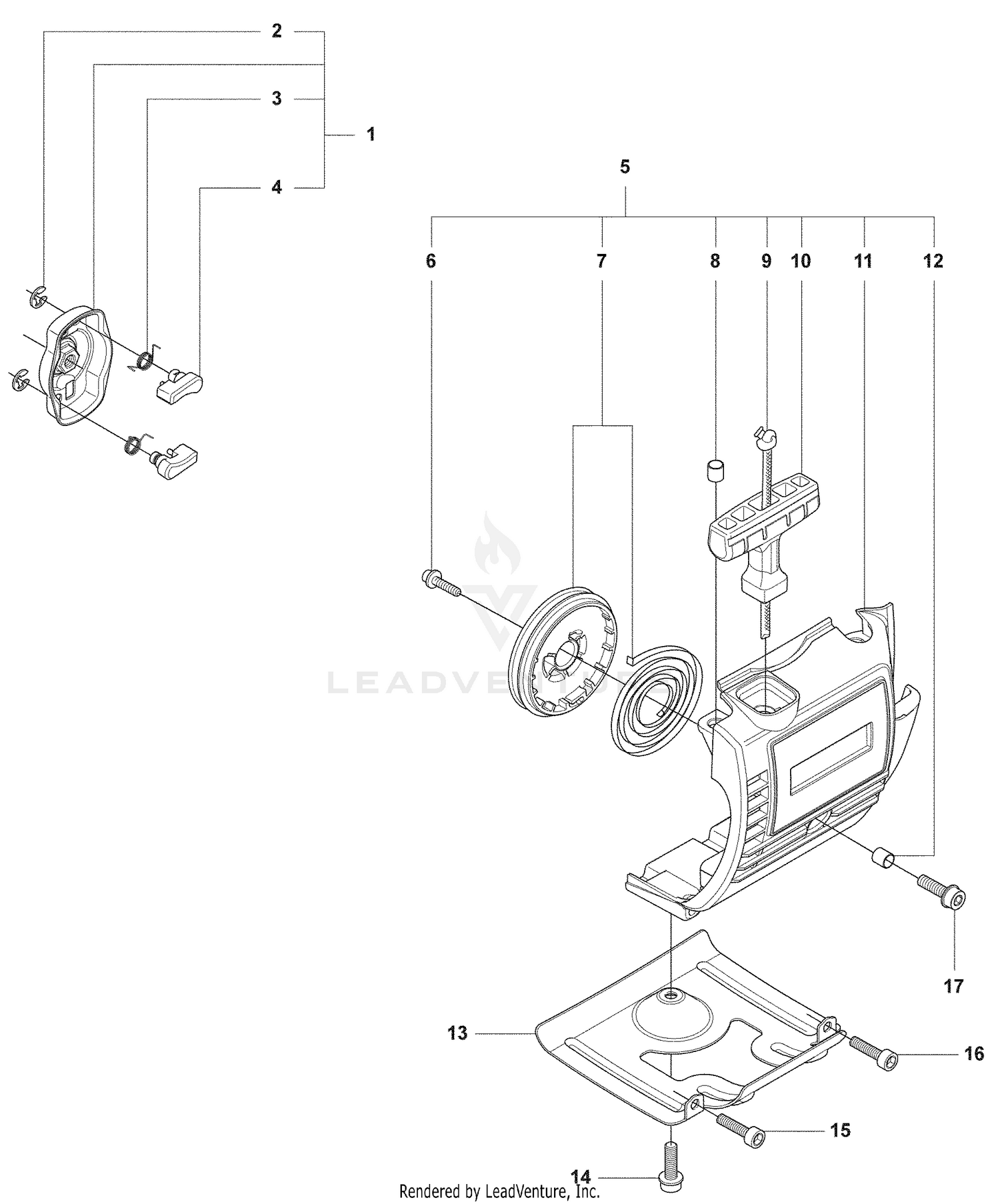

Starter
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 1 | 503873305 | STARTER PAWL BRIDGE Price: $22.99 |
| 2 | 237-42 | O-RING Price: $2.78 |
| 2 | 735310820 | E-RING 4 Price: $2.99 |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 3 | 503873601 | SPRING Price: $3.99 |
| 4 | 22-8350 | BALL Price: $12.28 |
| 4 | 544011401 | STARTER PAWL This part replaces 503873502. Price: $9.99 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 5 | 503852807 | STARTER ASSY This part replaces 503852806. Price: $64.99 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 6 | 503217716 | SCREW Price: $2.99 |
| 7 | 503964901 | STARTER PULLEY ASSY. Price: $14.99 |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 537379302 | SPACING SLEEVE Price: $4.99 |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 9 | 503858901 | STARTER ROPE Price: $8.99 |
| 10 | 22-8380 | RETAINER Price: $17.86 |
| 10 | 537008401 | STARTER HANDLE Price: $9.99 |
| 11 | 22-8410 | SPRING Price: $17.61 |
| 11 | 503858703 | STARTER HOUSING This part replaces 503858702. Price: $22.99 |
| 12 | 22-8390 | RETAINER Price: $56.56 |
| 12 | 537379302 | SPACING SLEEVE Price: $4.99 |
| 13 | 22-8400 | SPACER Price: $42.41 |
| 13 | 537034101 | PLATE Price: $17.99 |
| 14 | 22-8480 | RING-SNAP Price: $49.87 |
| 15 | 503216618 | SCREW Price: $3.99 |
| 16 | 503216618 | SCREW Price: $3.99 |
