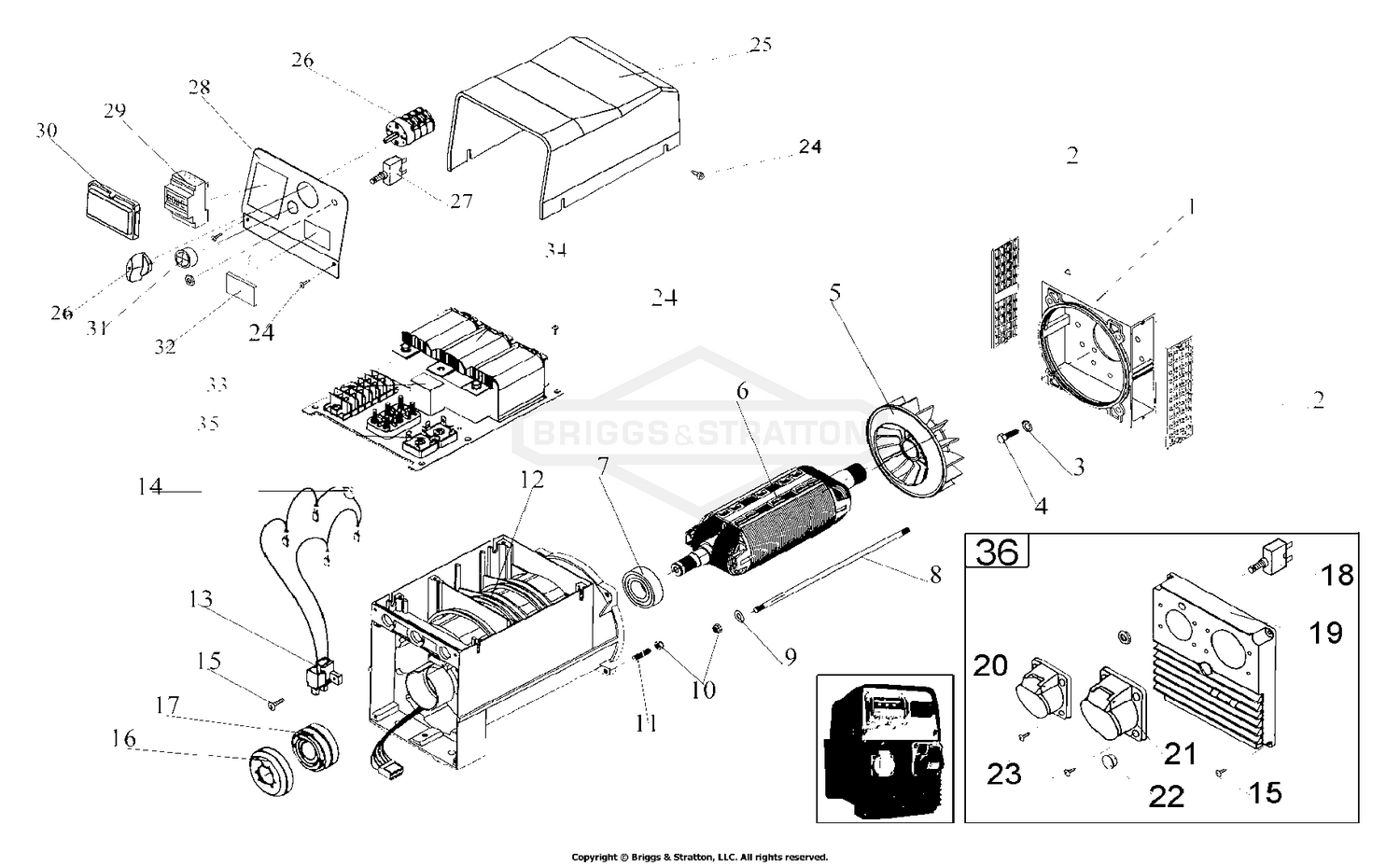

Alternator

Alternator

Parts (35)

RefPart NumberDescription
1 102271GS Flange Plate Price: Call Us
2 102139GS Side Grill (Plastic) Price: Call Us
3 ~NSP Washer Lock M10/ 3/8 OXY Black Price: Call Us
4 ~NSP Screw Cap 3/8" UNC x 1" Price: Call Us
5 102355GS Rotor Fan Sincro Price: Call Us
6 102356GS Rotor Assembly AK14 Alternator 3 Ph Price: Call Us
7 102038GS Rotor Bearing Price: Call Us
8 102160GS Rotor Bolt 225mm M8-1.25 Price: Call Us
9 ~NSP Washer Flat M8 Price: Call Us
10 ~NSP Nut Nylock M8-1.25 Price: Call Us
11 102131GS Stud M8*30mm Price: Call Us
12 102357GS Stator Assy ET4 3Phase Price: Call Us
13 102240GS Brush Assembly Price: Call Us
14 102338GS Varistor, Sincro 3Ph For Bridge Rectifier Price: Call Us
15 ~NSP Screw Machine M5*10mm Price: Call Us
16 102243GS Slip Ring Cover Price: Call Us
17 102242GS Slip Ring Assembly Price: Call Us
18 102133GS Circuit Breaker 15A Price: Call Us
19 102339GS Outlet Panel Blank Sincro 3 Phase Price: Call Us
20 102418GS Socket Outlet 16A 230V Price: Call Us
21 102341GS Socket Outlet 16A 230/415V Price: Call Us
22 102085GS End Cap Plastic (Outlet Panel) Price: Call Us
23 ~NSP Screw Self Tap #10*15mm Price: Call Us
24 ~NSP Screw Machine M5*8mm Price: Call Us
25 102287GS Cover Top Box Price: Call Us
26 102342GS Switch Rotory Sincro 3Phase Price: Call Us
27 102358GS Circuit Breaker 7A Price: Call Us
28 102344GS Panel Assy Top Box (Aluminium) Price: Call Us
29 103005GS Circuit Breaker Assy Sincro 3Phase 10A Price: Call Us
30 102346GS Cover Clear Plastic (Circuit Breakers) Price: Call Us
31 102347GS Lamp Holder Assy Sincro 3 Phase Price: Call Us
32 102348GS Voltmeter 360-440V L.E.D. Type Price: Call Us
33 102349GS Filter Assy (Wave Form) Price: Call Us
34 102350GS Transformer Assy Compound Sincro 3Phase Price: Call Us
35 102161GS Bridge Rectifier Price: Call Us
