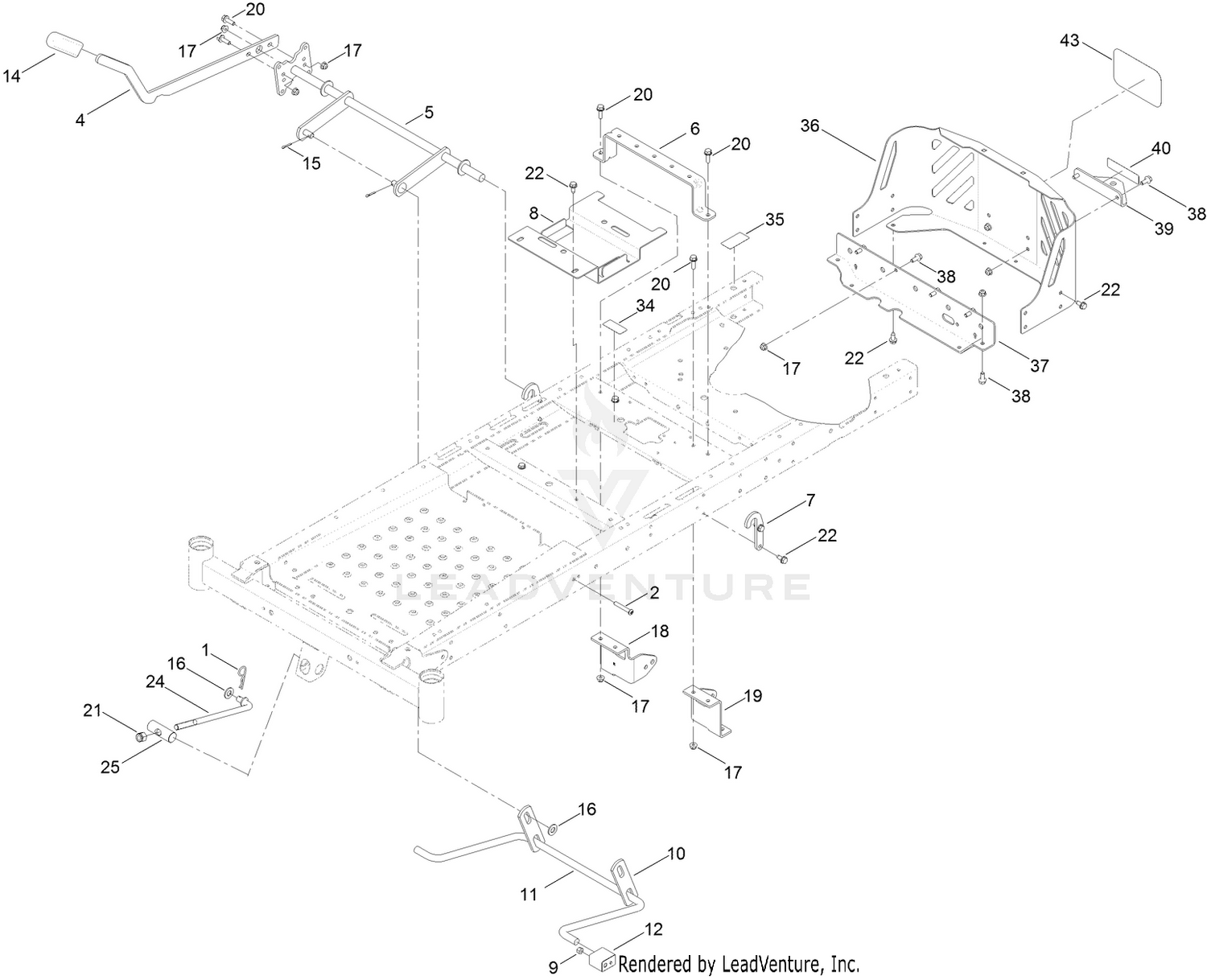

| Ref | Part Number | Description |
|---|
| 1 |
1-806005 |
PIN-COTTER Price: $2.39 |
| 2 |
120-5499 |
SCREW-HSBH Price: $1.27 |
| 4 |
119-3427-03 |
LEVER-LIFT Price: $15.92 |
| 5 |
132-6872-03 |
LIFT-DECK, NARROW Price: $34.67 |
| 6 |
119-3435-03 |
BRACE-SEAT, REAR (NARROW) Price: $14.45 |
| 7 |
138-7233 |
BRACKET-LIFT This part replaces 119-8875. Price: $3.78 |
| 8 |
131-0914-03 |
BRACKET-BATTERY Price: $21.32 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
138-7235 |
LINK-LIFT This part replaces 108-7840. Price: $4.88 |
| 11 |
138-7234 |
ARM-LIFT, REAR This part replaces 108-7839. Price: $22.72 |
| 12 |
108-7845 |
BLOCK-PIVOT Price: $11.42 |
| 14 |
1-633268 |
GRIP-LEVER Price: $13.99 |
| 15 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 18 |
137-7020-01 |
MOUNT-HYDRO, FRONT (RIGHT) This part replaces 131-0901-01. Price: $10.68 |
| 19 |
139-3211-01 |
MOUNT-HYDRO, FRONT (LEFT) This part replaces 131-0902-01. Price: $10.06 |
| 20 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 21 |
3296-19 |
NUT-HEX Price: $0.65 |
| 22 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 24 |
131-3945 |
ROD-MOUNT, DECK Price: $28.01 |
| 25 |
119-8810 |
PIN-PIVOT Price: $11.11 |
| 34 |
121-5684 |
DECAL-LOCATION, SERVICE DEALER Price: $1.19 |
| 35 |
121-2989 |
DECAL-BYPASS Price: $2.26 |
| 36 |
127-3353-03 |
GUARD-ENGINE, NARROW Price: $69.99 |
| 37 |
130-6950-01 |
CROSSMEMBER-REAR, NARROW Price: $26.67 |
| 38 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 39 |
117-1232-03 |
BRACKET-HITCH Price: $19.74 |
| 40 |
131-4036 |
DECAL Price: $1.99 |
