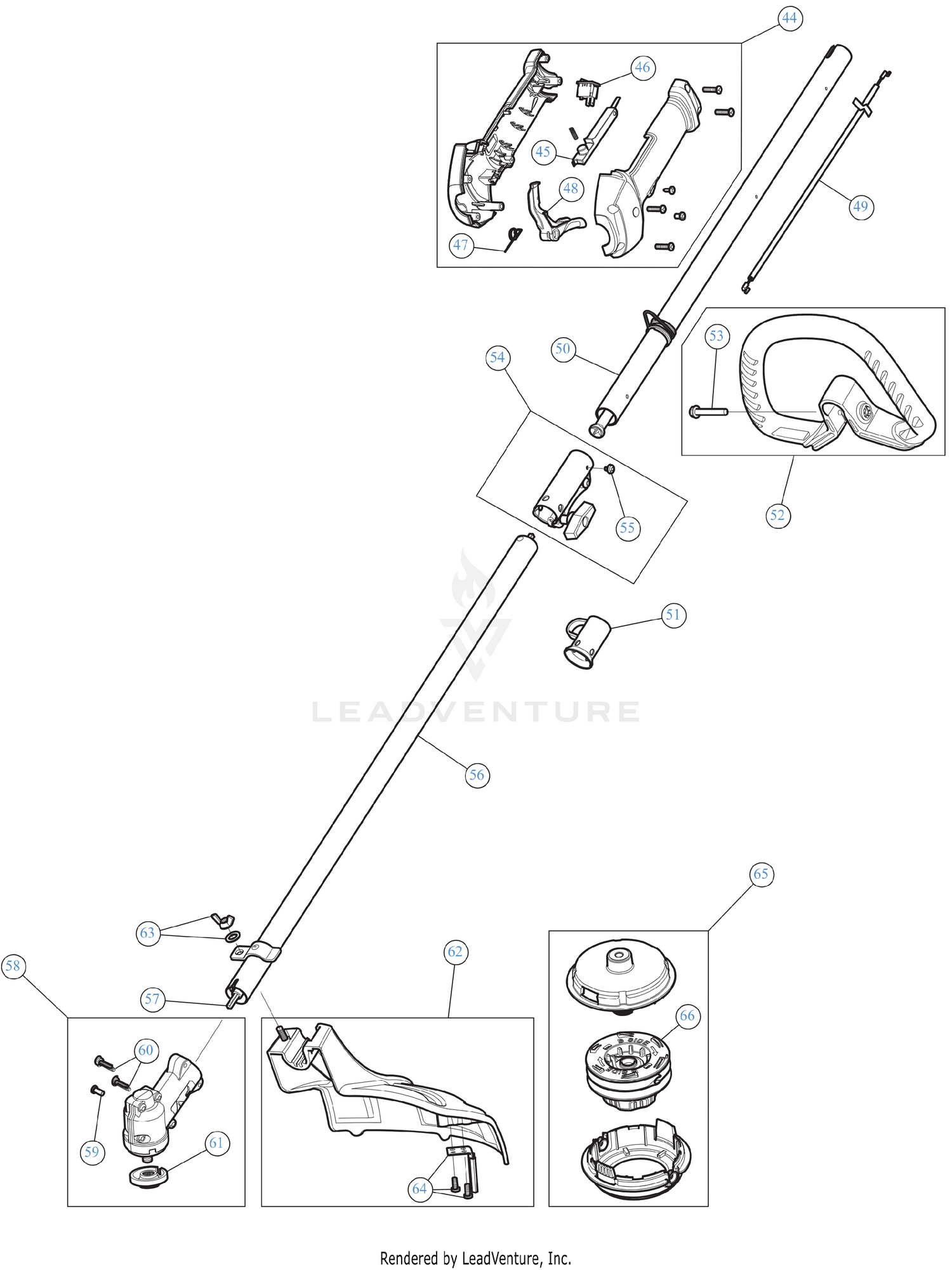

General Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 45 | 731-08433C-10 | LEVER LOCK OUT Price: $2.72 |
| 46 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 47 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 48 | 731-04970B-10 | THROTTLE TRIGGER Price: $8.16 |
| 49 | 746P04758 | THROTTLE CABLE Price: $6.86 |
| 50 | 753-06880 | BOOM ASSEMBLY UPR Price: $17.42 |
| 51 | 731-08926 | HANGER Price: $2.32 |
| 53 | 753-06040 | BOLT 1/4-20X1 1/2 Price: $6.01 |
| 55 | 791-182057 | SCREW, 10-32X.250 TA Price: $3.93 |
| 56 | 753-08356 | BOOM ASSEMBLY LOWER Price: $21.68 |
| 57 | 753-05267 | LOWER DRIVE SHAFT Price: $37.46 |
| 59 | 791-182519 | SCREW, 8-32 x .312 P Price: $4.37 |
| 60 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 61 | 748-05052 | CUTTING HEAD SPACER Price: $2.83 |
| 63 | 753-04282 | BLADE GUARD MOUNTING HARDWARE Price: $23.73 |
| 64 | 753-08355 | BLADE ASSEMBLY W/HDW Price: $3.61 |
