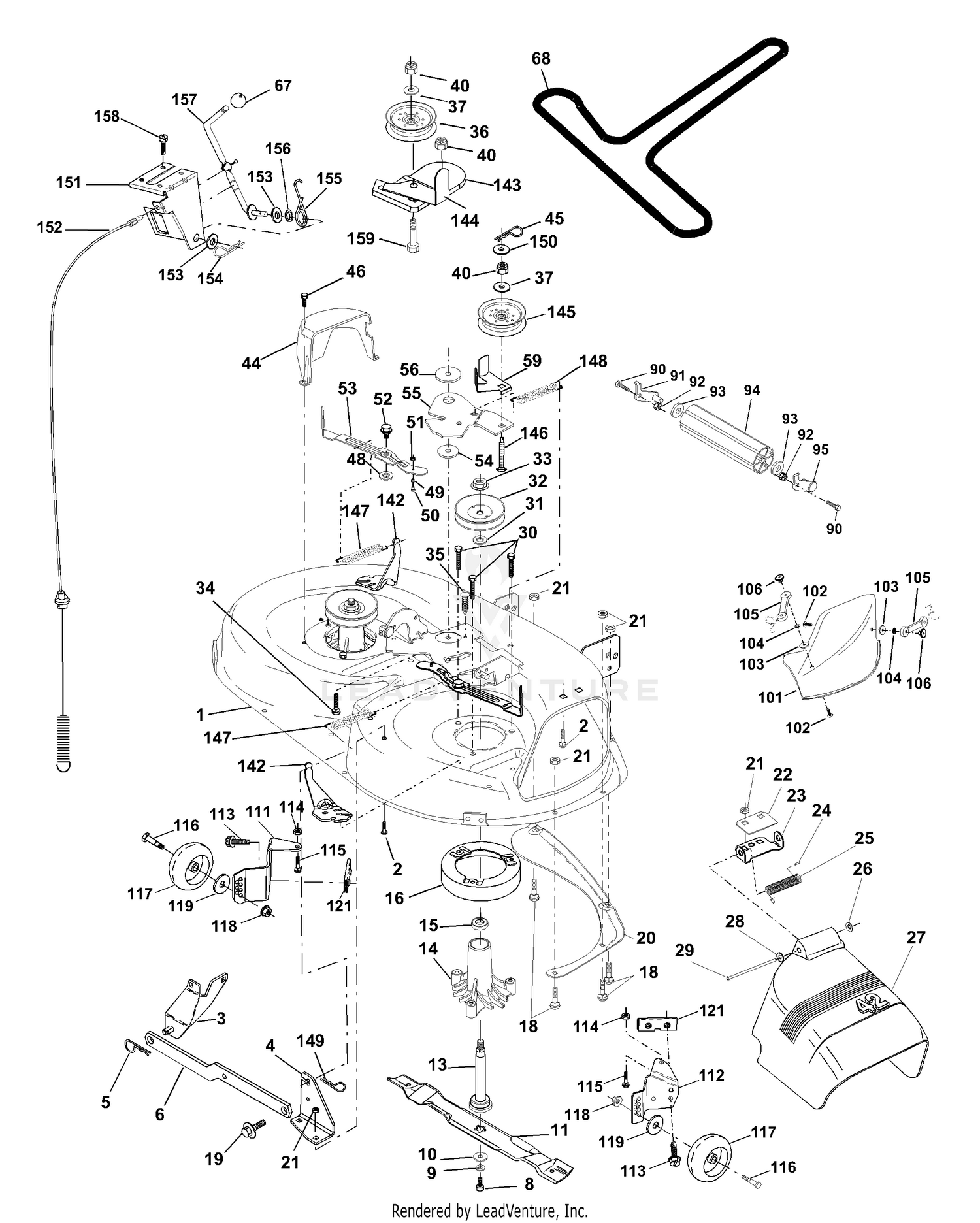

| Ref | Part Number | Description |
|---|
| 1 |
165892X421 |
Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460X421 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
130832 |
Arm, Suspension, Rear Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 25 Grade 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 10 |
140296 |
Washer,Hardened Price: Call Us |
| 10 |
98-9614 |
CYLINDER HEAD COVER ASM Price: $256.63 |
| 11 |
134149 |
Blade, Mulching 42" Std Price: Call Us |
| 11 |
138498 |
Blade Mower 42" Hi-Lift Std Price: Call Us |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
98-9615 |
GASKET-COVER, HEAD Price: $20.34 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
134753 |
Stiffener Bracket Price: Call Us |
| 23 |
131267 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
157722 |
Screw Thdrol Washer Head Price: Call Us |
| 30 |
98-9492 |
JOINT-PIPE, BREATHER Price: $9.68 |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
137266 |
Nut, Toplock 9/16 Price: Call Us |
| 34 |
72110614 |
Bolt Price: Call Us |
| 35 |
133835 |
Fastener, Christmas Tree Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: Call Us |
| 40 |
73680600 |
Nut Price: Call Us |
| 40 |
98-9488 |
PLATE-ELEMENT, BREATHER Price: $1.33 |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer,Hardened Price: Call Us |
| 49 |
174284 |
Roller Assembly, Cam Follower Price: Call Us |
| 50 |
131340 |
Bolt, Shoulder #10-24 Grade 5 Price: Call Us |
| 50 |
98-9489 |
PLATE-ELEMENT, BREATHER Price: $7.89 |
| 51 |
69180 |
Locknut Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 UNC Price: Call Us |
| 53 |
131845 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
133943 |
Washer,Hardened Price: Call Us |
| 55 |
155046X421 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard TUV Idler Price: Call Us |
| 60 |
98-9493 |
ELEMENT-BREATHER Price: $6.10 |
| 67 |
171598 |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 70 |
98-9490 |
SHIELD-OIL, BREATHER Price: $1.28 |
| 80 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 90 |
74760616 |
Bolt Fin Hex 3/8-16 Unc x 1 Price: Call Us |
| 90 |
98-9455 |
NUT-CAP Price: $4.77 |
| 91 |
132274 |
Bracket Asm Noseroller LH Price: Call Us |
| 92 |
73800600 |
Nut, Lock, Hex W/Ins 3/8-16 UNC Price: Call Us |
| 93 |
19171416 |
Washer 17/3 x 7/8 x 6 Ga. Price: Call Us |
| 94 |
132264 |
Roller Nose 38 & 42 Price: Call Us |
| 95 |
132273 |
Bracket Asm Noseroller RH Price: Call Us |
| 100 |
98-9454 |
GASKET Price: $1.43 |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw Price: Call Us |
| 103 |
19061216 |
Washer, Flat Price: Call Us |
| 104 |
10071000 |
Washer, Lock Price: Call Us |
| 105 |
160793 |
Latch Assembly Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 110 |
107-9075 |
PLUG-FILLER, OIL Price: $7.25 |
| 111 |
155197X421 |
Bracket, Gauge, Wheel LH Price: Call Us |
| 112 |
155198X421 |
Bracket, Gauge, Wheel RH Price: Call Us |
| 113 |
17060514 |
Screw 5/16 - 18 Price: Call Us |
| 114 |
73510500 |
Nut, Keps 5/16 - 18 UNC Price: Call Us |
| 115 |
72110504 |
Bolt, Carriage 5/16-18 x 1/2 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
165746 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
99-3446 |
O-RING Price: $7.11 |
| 121 |
173986 |
Bracket, Extruded Price: Call Us |
| 130 |
99-8349 |
EXTENSION-FILL, OIL Price: $107.00 |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720410 |
Screw Hex Thd Cut 1/4-20 x 5/8 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4 Price: Call Us |
