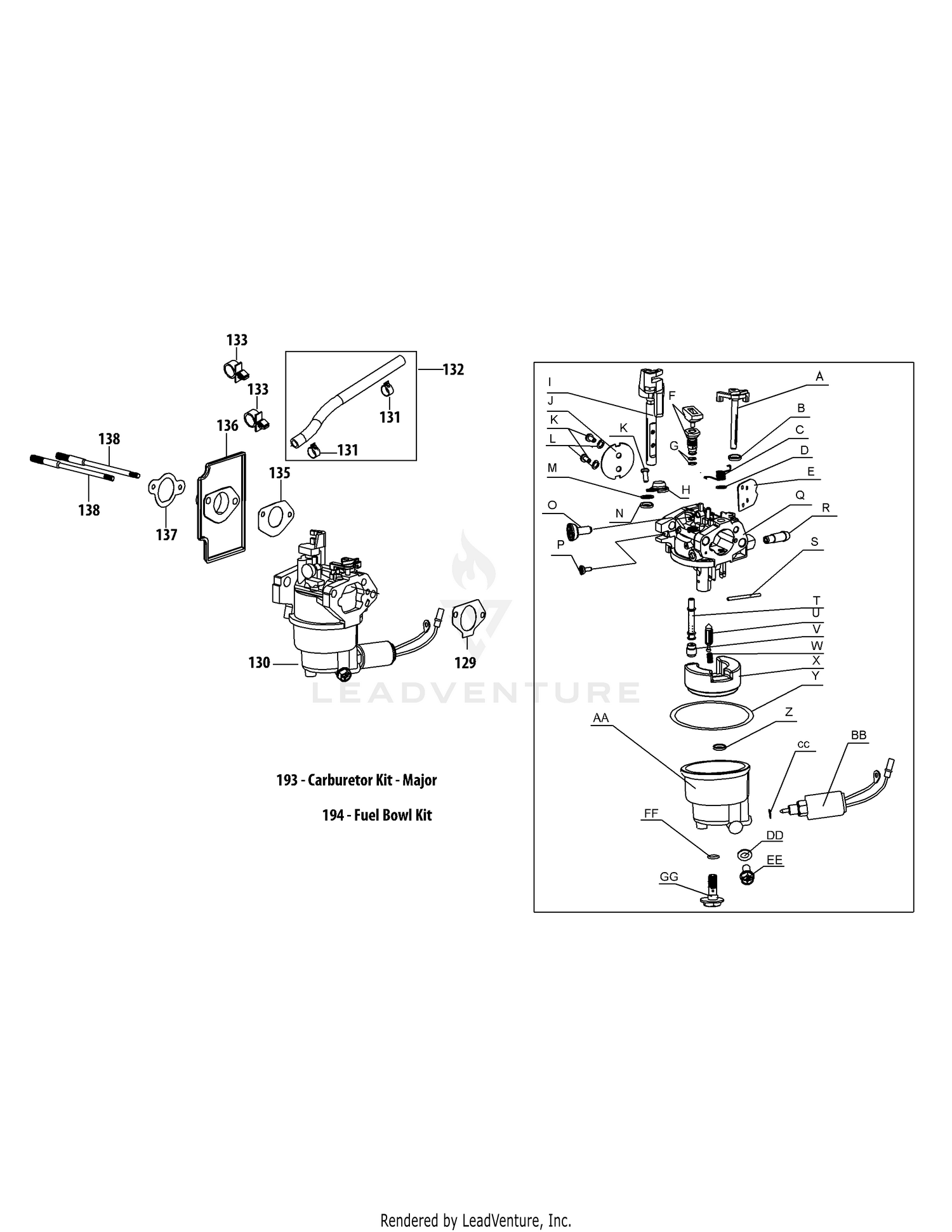

| Ref | Part Number | Description |
|---|
| A |
None |
Choke Shaft |
| AA |
619P05093 |
FLOAT BOWL Price: $9.41 |
| B |
None |
Choke Shaft Fiber O-Ring |
| BB |
951-14676 |
FUEL SOLENOID Price: $35.82 |
| C |
None |
Choke Return Spring |
| CC |
None |
Solenoid Valve Washer |
| D |
None |
Flat Steel Washer |
| DD |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| E |
None |
Choke Plate |
| EE |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| F |
None |
Idle Jet Assembly |
| FF |
None |
O-Ring |
| G |
None |
Idle Jet O-Ring |
| H |
None |
Sheetmetal Housing |
| I |
None |
Throttle Shaft |
| J |
None |
Throttle Plate |
| K |
None |
Screw M3x5 |
| L |
None |
Lock Washer |
| M |
None |
Nylon/Plastic O-Ring |
| N |
None |
Fiber O-Ring |
| O |
710P06038A |
SPEED IDLE SCREW Price: $2.45 |
| P |
None |
Idle Mixture Screw |
| Q |
None |
Carburetor Body |
| R |
None |
Fuel Inlet |
| S |
711-06036 |
HINGE FLOAT PIN Price: $0.60 |
| T |
None |
Emulsion Tube |
| U |
751P14036A |
NEEDLE VALVE Price: $5.16 |
| V |
None |
Main Jet |
| W |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| X |
731P09131 |
CARBURETOR FLOAT Price: $2.89 |
| Y |
951-12304 |
FUEL BOWL O-RING Price: $6.17 |
| Z |
None |
Square-Ring |
| 129 |
951-12258A |
Manifold Gasket/Add Air Hole Price: $3.60 |
| 130 |
951-05149 |
Carburetor Assembly (Hy-4P90F) Price: $118.80 |
| 131 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11731. Price: $3.60 |
| 132 |
951-11336 |
Fuel Line Kit Price: $29.36 |
| 133 |
723-04071A |
FUEL LINE SUPPORT CLAMP This part replaces 723-04071. Price: $2.77 |
| 135 |
951-12261 |
Carburetor Gasket Price: $3.60 |
| 136 |
951-12262 |
Carburetor Insulator Price: $9.02 |
| 137 |
951-12263 |
Carburetor Insulator Gasket Price: $3.60 |
| 138 |
951-12264 |
Carb Stud Price: $5.48 |
