| Ref | Part Number | Description |
|---|
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 3 |
32136-2 |
NUT-SHH Price: $3.55 |
| 4 |
21-3020-01 |
MOUNT-BALLJOINT, RH This part replaces 21-3020. Price: $178.87 |
| 5 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 8 |
3217-8 |
NUT-HEX Price: $1.34 |
| 9 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 10 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 11 |
24-9510 |
PIN Price: $77.49 |
| 12 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
46-8840-01 |
SPRING-LIFT ARM This part replaces 46-8840. Price: $35.71 |
| 15 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 16 |
256-126 |
BUSHING Price: $9.36 |
| 17 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 18 |
93-7040-01 |
SUPPORT-REINFORCEMENT This part replaces 93-7040. Price: $85.37 |
| 19 |
324-4 |
SCREW-HH Price: $0.95 |
| 20 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 21 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 22 |
324-11 |
SCREW-HH Price: $3.05 |
| 23 |
21-3750 |
SUPPORT PLT Price: $14.42 |
| 24 |
21-2860-01 |
PUSH ARM BRACKET ASM This part replaces 21-2860. Price: $154.46 |
| 25 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 26 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 27 |
32128-42 |
NUT-HF Price: $0.98 |
| 28 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 29 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 30 |
21-2900-01 |
SPRING-TORSION, LH This part replaces 21-2900. Price: $566.83 |
| 31 |
21-2890-01 |
SPRING-TORSION, RH This part replaces 21-2890. Price: $566.83 |
| 32 |
21-3050-01 |
LH BALL JOUNT MOUNT ASM This part replaces 21-3050. Price: $153.41 |
| 33 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 36 |
3-1365 |
CHAIN Price: $72.97 |
| 37 |
68-3270 |
BUMPER-RUBBER This part replaces 67-9800. Price: $37.99 |
| 38 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 39 |
5-2942 |
SHACKLE Price: $16.99 |
| 40 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 41 |
93-7650-01 |
LEVER-LOCKING This part replaces 93-7650. Price: $33.03 |
| 42 |
93-7644 |
PIN-HITCH, COTTERLESS Price: $9.14 |
| 43 |
28-8070 |
LANYARD Price: $13.85 |

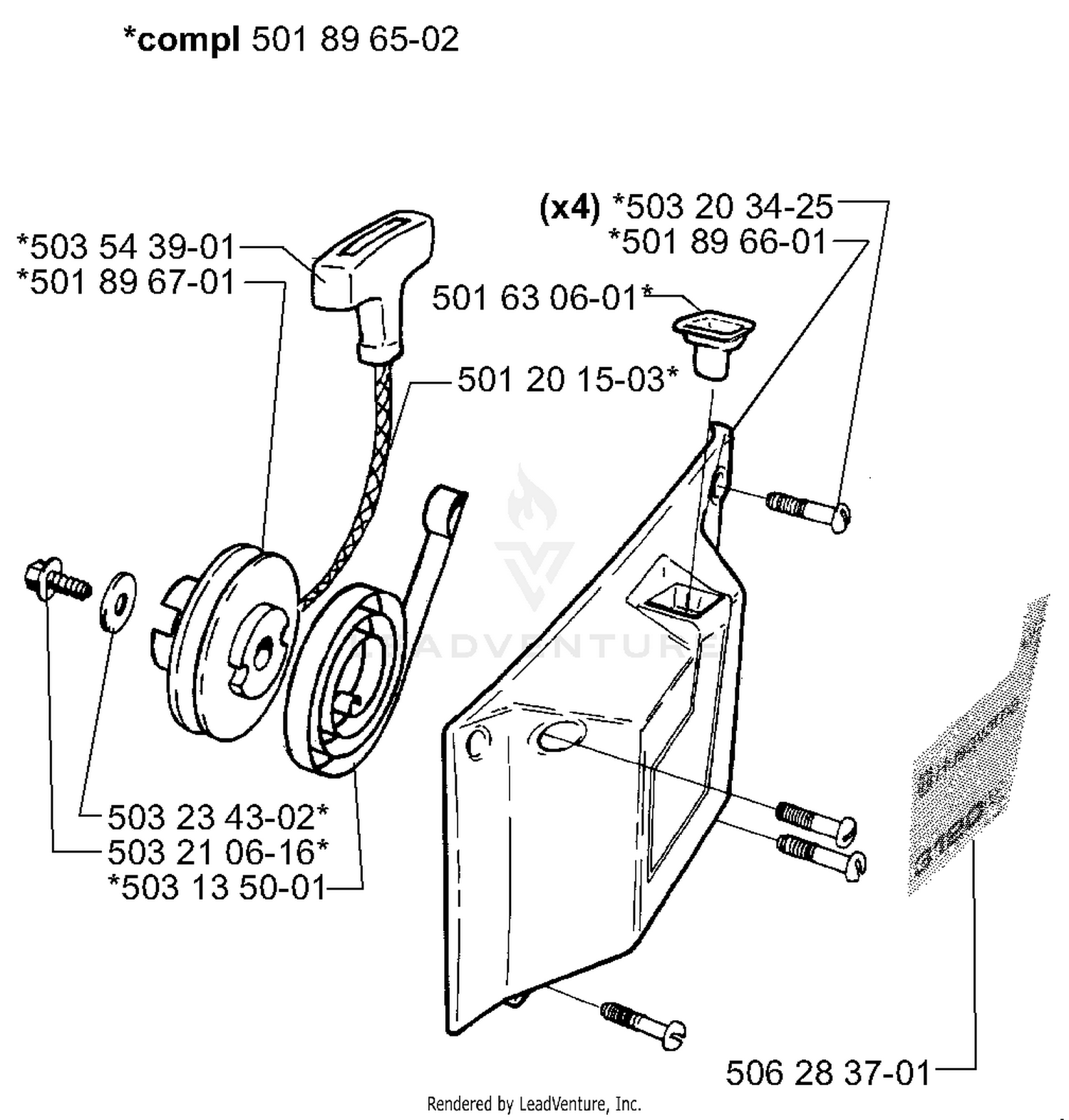

| 501201503 |
503432903 |
STARTER ROPE This part replaces 501201503. Price: $8.99 |
| 501630601 |
501630601 |
SLEEVE Price: $6.99 |
| 501896502 |
501896502 |
STARTER ASSY Price: $69.99 |
| 501896601 |
501896601 |
STARTER HOUSING Price: $22.99 |
| 501896701 |
501896701 |
PULLEY Price: $27.99 |
| 503135001 |
503135001 |
RECOIL SPRING Price: $17.99 |
| 503203425 |
525887001 |
SCREW CITXPANMO This part replaces 503203425. Price: $3.99 |
| 503210616 |
503214972 |
SCREW IHSCFT PW5.5X16 8.8 ZN/ This part replaces 503210616. Price: $4.99 |
| 503234302 |
503234302 |
WASHER Price: $3.99 |
| 503543901 |
503543901 |
STARTER HANDLE Price: $9.99 |
