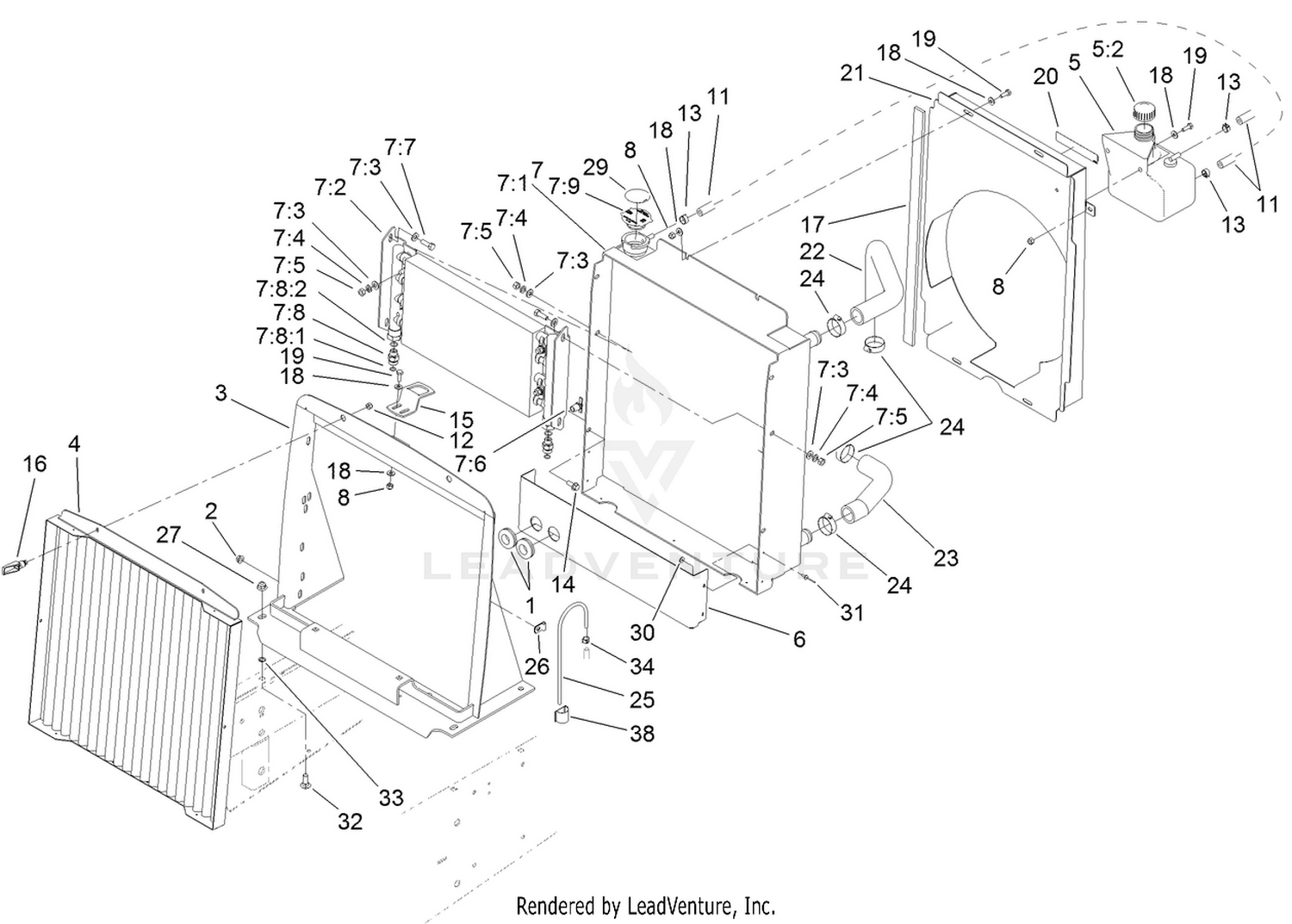

| Ref | Part Number | Description |
|---|
| 1 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 2 |
32128-20 |
NUT-HF Price: $0.99 |
| 3 |
120-6550-03 |
FRAME-RADIATOR Price: $521.87 |
| 4 |
108-2062-03 |
SCREEN ASM Price: $402.89 |
| 5 |
120-5572 |
COOLANT RESERVOIR ASM This part replaces 93-5975. Price: $164.90 |
| 6 |
110-9663-03 |
SHIELD-RADIATOR, BOTTOM Price: $61.11 |
| 8 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
109-0308 |
HOSE-FUEL Price: $10.99 |
| 12 |
1-804254 |
NUT-LOCK, HH Price: $1.29 |
| 13 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 14 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 15 |
98-9316 |
LATCH-HOOD Price: $61.25 |
| 16 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 17 |
108-9683 |
STRIP-FOAM Price: $10.49 |
| 18 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 19 |
321-4 |
SCREW-HH Price: $0.99 |
| 20 |
93-7272 |
DECAL-WARNING Price: $6.37 |
| 21 |
108-9678-03 |
FAN SHROUD ASM Price: $826.89 |
| 22 |
104-3443 |
HOSE-RADIATOR, UPPER Price: $125.95 |
| 23 |
104-3442 |
HOSE-RADIATOR, LOWER Price: $79.76 |
| 24 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 25 |
66-3180 |
TUBE-VENT Price: $18.60 |
| 26 |
2412-103 |
CLAMP Price: $2.51 |
| 27 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
117-3276 |
DECAL-DANGER This part replaces 106-5976. Price: $10.70 |
| 30 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 31 |
3269-13 |
RIVET-POP Price: $0.25 |
| 32 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 33 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 34 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
