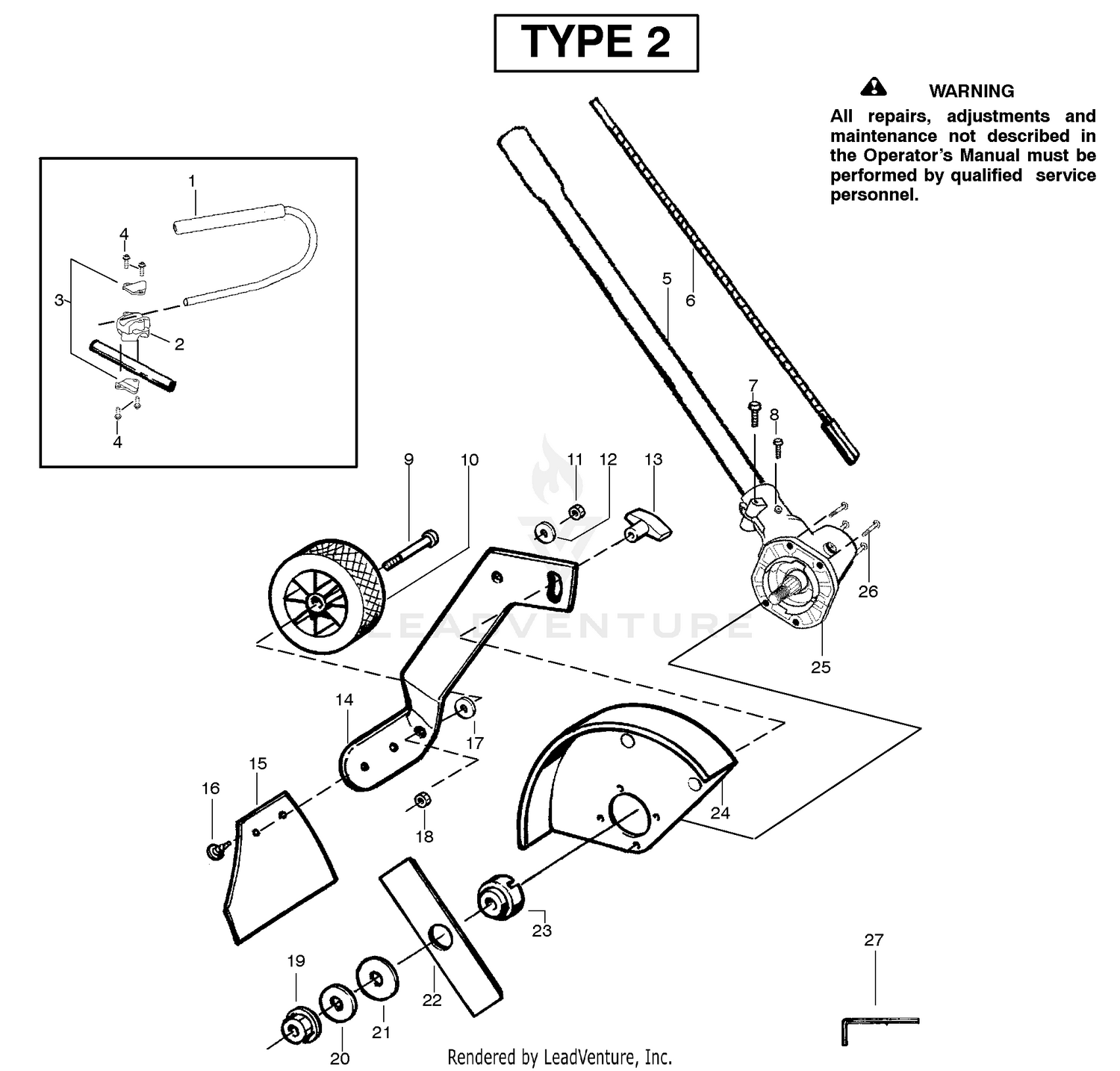

Edger Attachment Assembly Type 2
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 530058563 | Bracket - Clamp Price: $2.99 |
| 4 | 530015886 | Screw Price: $1.99 |
| 5 | 530071863 | Assy. - Driveshaft Price: $17.99 |
| 6 | 530096183 | Flexshaft - Split boom Price: $2.99 |
| 7 | 530016014 | Screw Price: $1.99 |
| 8 | 530016224 | Screw - Alignment Price: $1.99 |
| 9 | 530015981 | Bolt - Shoulder Axle Price: $1.99 |
| 11 | 530015515 | Locknut Price: $1.99 |
| 12 | 530092062 | Washer Price: $1.99 |
| 13 | 530092059 | Knob Price: $6.99 |
| 14 | 530053009 | Bracket - Adj. Wheel Price: $8.99 |
| 16 | 530053012 | Fastener - Mud Flap Price: $1.99 |
| 17 | 530092062 | Washer Price: $1.99 |
| 18 | 530015515 | Locknut Price: $1.99 |
| 20 | 530016240 | Washer - Belleville Price: $1.99 |
| 21 | 530015792 | Washer - Flat Price: $1.99 |
| 23 | 530054623 | Dustcup Price: $6.99 |
| 24 | 530071930 | Kit - Edger Guard This part replaces 530071384. Price: $12.99 |
| 25 | 530071586 | Kit - Gearbox Price: $49.99 |
| 26 | 530016312 | Screw Price: $1.99 |
