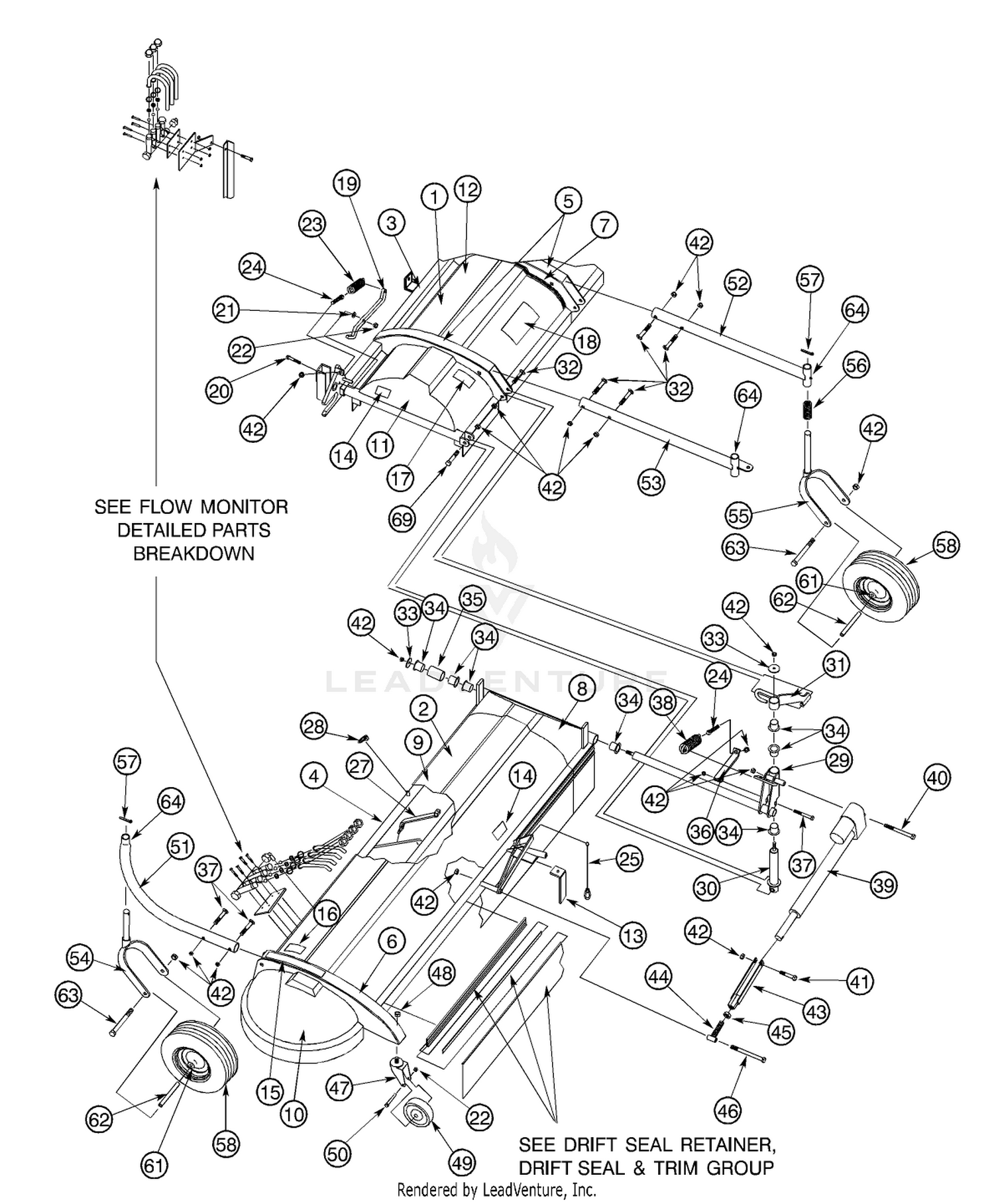

| Ref | Part Number | Description |
|---|
| 1 |
94-8645 |
BOOM CENTER SECTION Price: $10,019.75 |
| 2 |
94-8647 |
DISCONTINUED Price: Call Us |
| 3 |
95-2058 |
FRAME-MAIN, CENTER Price: $4,120.13 |
| 4 |
95-2060 |
DISCONTINUED Price: Call Us |
| 5 |
94-8711 |
STRIP-BUMPER, CENTER SECTION Price: $65.45 |
| 6 |
94-8712 |
STRIP-BUMPER, BOOM EXTENSION Price: $59.62 |
| 7 |
95-2080 |
SEAL-JOINT Price: $55.10 |
| 8 |
94-8684 |
DISCONTINUED Price: Call Us |
| 9 |
94-8686 |
DISCONTINUED Price: Call Us |
| 10 |
94-8688 |
DISCONTINUED Price: Call Us |
| 11 |
94-8698 |
CAP-SHROUD, CENTER, LEFT Price: $234.87 |
| 12 |
94-8687 |
SHROUD-CENTER Price: $372.00 |
| 13 |
95-2004 |
STOP-DRIFT SEAL Price: $13.95 |
| 14 |
120-0625 |
DECAL-WARNING, PINCH POINT This part replaces 94-8701. Price: $4.10 |
| 15 |
94-8702 |
DECAL-INSTRUCTION, FORWARD FOLD Price: $71.99 |
| 16 |
94-8703 |
DISCONTINUED Price: Call Us |
| 17 |
94-8609 |
DECAL-GVW Price: $39.18 |
| 18 |
62-5550 |
DECAL Price: $9.32 |
| 19 |
94-8649 |
LATCH-BREAKAWAY Price: $69.93 |
| 20 |
323-9 |
SCREW-HH Price: $1.29 |
| 21 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 23 |
94-8675 |
DISCONTINUED Price: Call Us |
| 24 |
95-2061 |
DISCONTINUED Price: Call Us |
| 25 |
94-8708 |
CABLE W/CLIPS Price: $13.81 |
| 27 |
94-8668 |
HOOD SUPPORT ASM Price: $125.13 |
| 28 |
133-0616 |
PANEL-SIDE, LH This part replaces 92-1248. Price: $452.44 |
| 29 |
94-8678 |
PIVOT-LEFT Price: $351.35 |
| 30 |
94-8680 |
PIN-PIVOT Price: $219.20 |
| 31 |
94-8681 |
SUPPORT-PIVOT, LEFT Price: $167.20 |
| 32 |
3233-6 |
SCREW-CARR Price: $1.89 |
| 33 |
94-8664 |
WASHER Price: $13.87 |
| 34 |
94-8650 |
BUSHING Price: $11.55 |
| 35 |
94-8683 |
DISCONTINUED Price: Call Us |
| 36 |
94-8690 |
BRACKET-PUSHOUT, BOOM Price: $58.17 |
| 37 |
325-18 |
SCREW-HH Price: $3.19 |
| 38 |
94-8675 |
DISCONTINUED Price: Call Us |
| 39 |
94-8556 |
ACTUATOR - ELEC Price: $1,365.96 |
| 40 |
325-19 |
SCREW-HH Price: $2.57 |
| 41 |
325-8 |
SCREW-HH Price: $3.52 |
| 42 |
32146-13 |
NUT-HEX Price: $3.49 |
| 43 |
94-8648 |
LINK-ACTUATOR ADJUSTMENT Price: $137.49 |
| 44 |
94-8651 |
DISCONTINUED Price: Call Us |
| 45 |
3218-7 |
NUT-JAM Price: $3.86 |
| 46 |
95-2134 |
SCREW Price: $27.50 |
| 47 |
94-8652 |
DISCONTINUED Price: Call Us |
| 48 |
32146-7 |
NUT-LOCK, INSERT Price: Call Us |
| 49 |
94-8677 |
WHEEL Price: $32.90 |
| 50 |
323-12 |
SCREW-HH Price: $1.14 |
| 51 |
94-8653 |
MOUNT-CASTOR Price: $341.51 |
| 52 |
94-8655 |
DISCONTINUED Price: Call Us |
| 53 |
94-8667 |
MOUNT-CASTOR Price: $267.32 |
| 54 |
94-8654 |
DISCONTINUED Price: Call Us |
| 55 |
94-8656 |
DISCONTINUED Price: Call Us |
| 56 |
94-8709 |
DISCONTINUED Price: Call Us |
| 57 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 58 |
94-8693 |
WHEEL ASM Price: $146.85 |
| 61 |
94-8696 |
BUSHING Price: $3.60 |
| 62 |
94-8697 |
DISCONTINUED Price: Call Us |
| 63 |
325-36 |
SCREW-HH Price: $7.20 |
| 64 |
302-19 |
FITTING-GREASE Price: $0.61 |
| 69 |
325-10 |
SCREW-HH Price: $1.82 |
| 42046 |
ELBOW-90 |
DEG Price: $2.61 42046 |
| 96609 |
CLAMP-HOSE |
NO. M6H Price: $2.45 96609 |
