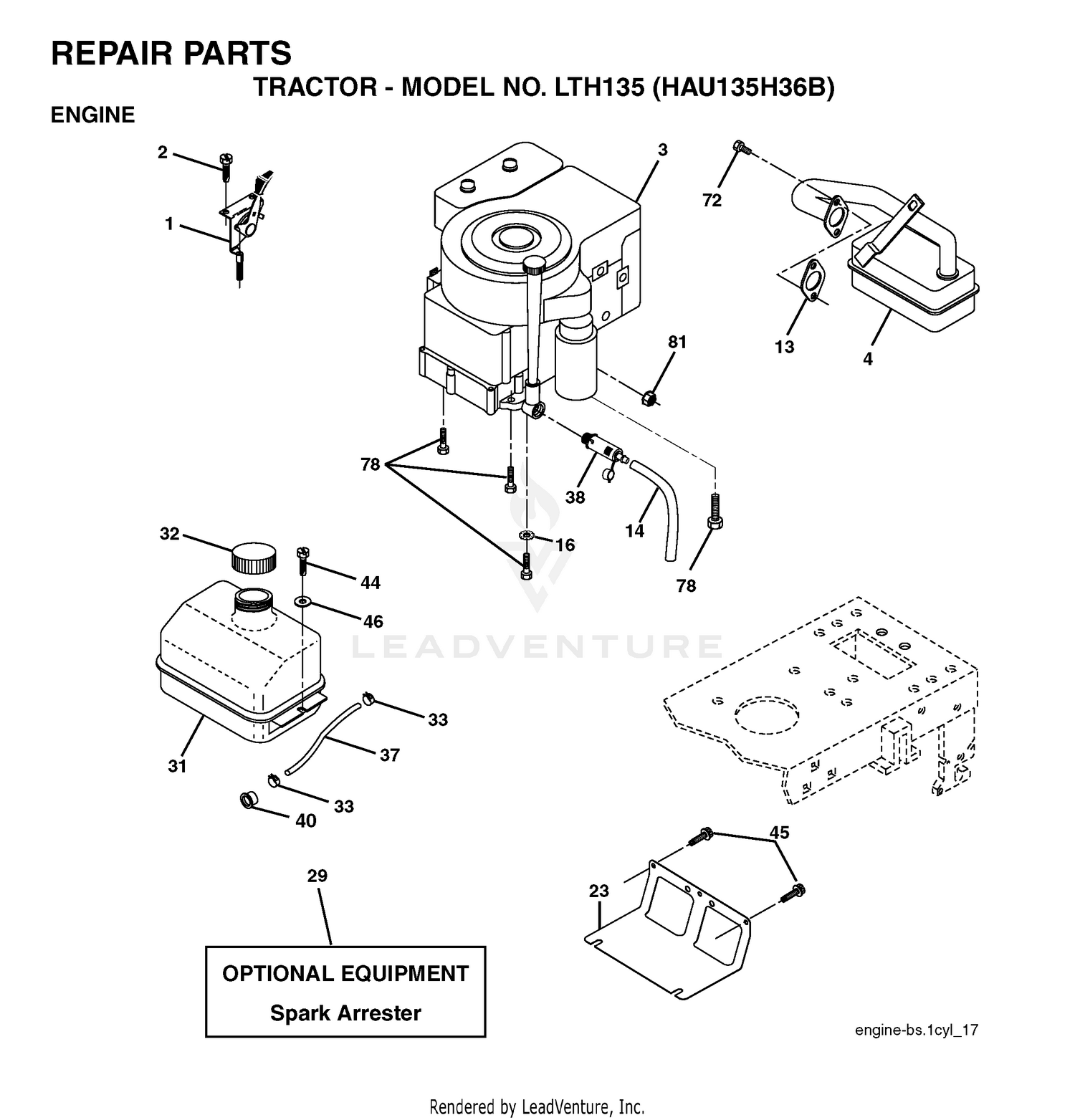

| Ref | Part Number | Description |
|---|
| 1 |
325-5 |
SCREW-HH Price: $1.20 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 2 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
53-5250-01 |
HANDLE - LIFT, LONG Price: $58.10 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 5 |
62-9130 |
GRIP-HANDLE Price: $7.92 |
| 6 |
53-5260-01 |
HANDLE - LIFT, SHORT Price: $107.16 |
| 7 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 8 |
5-4693 |
CHAIN Price: $30.29 |
| 9 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 10 |
282-13 |
DISCONTINUED Price: Call Us |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 13 |
53-5100-01 |
CENTER FRAME Price: $2,251.94 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
32153-5 |
NUT-HEX Price: $1.59 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
12-0010 |
U BOLT W.A. Price: $81.76 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 22 |
5-1091 |
SPACER Price: $4.98 |
| 23 |
325-10 |
SCREW-HH Price: $1.82 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
53-4910-01 |
DRAWBAR Price: $939.13 |
| 25 |
3272-38 |
PIN-COTTER Price: $3.05 |
| 26 |
53-5230-01 |
SUPPORT-FRAME Price: $157.68 |
| 27 |
327-23 |
SCREW-HH Price: $3.60 |
| 28 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 29 |
3296-24 |
NUT-HEX Price: $4.44 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 31 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550-01. Price: $161.64 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP Price: $39.99 |
| 32 |
53-4970-01 |
HITCH EXTENSION Price: $164.85 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 72 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
