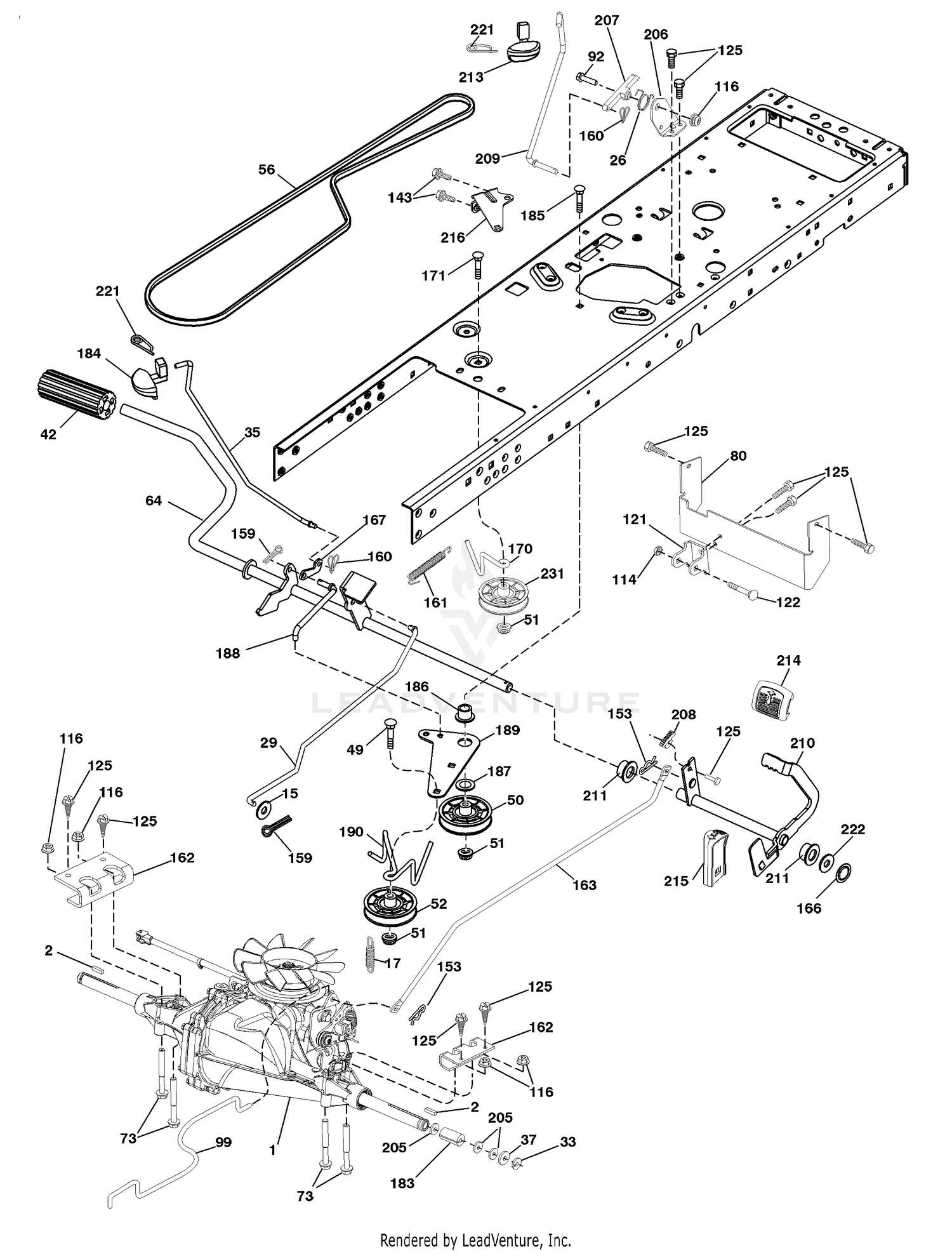

Drive

Drive

Parts (69)

RefPart NumberDescription
1 532418220 TRANSAXLE.T2.TEX.PCH.HYDRO-GEA This part replaces 532410043. Price: $1,099.99
1 92-5082 HOSE-HYD Price: $25.51
2 532123583 SQUARE KEY Price: $3.99
2 92-5083 HOSE-HYD Price: $25.27
3 66-8190 HYDRAULIC HOSE ASM Price: $85.54
4 66-8640 HYDRAULIC HOSE ASM Price: $104.12
5 66-8180 HYDRAULIC HOSE ASM Price: $119.78
6 66-8150 HOSE-HYDRAULIC Price: $15.32
7 66-8630 TUBE-HYDRAULIC Price: $104.22
8 66-8500 HYD HOSE ASM Price: $89.96
9 66-8620 TUBE-HYDRAULIC Price: $125.76
10 66-8490 HOSE-HYD Price: $140.41
11 66-8140 HOSE-HYDRAULIC Price: $55.60
12 92-5080 DISCONTINUED Price: Call Us
15 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
17 532197296 SPRING.BRAKE.HG3000/3500 Price: $5.99
26 532199679 SPRING.RETURN.CRUISE Price: $3.99
29 532423239 ROD.BRAKE.T2.TEX This part replaces 532408391. Price: $39.99
33 812000001 E-RING LT Price: $3.99
35 583864502 Rods This part replaces 532199591. Price: $6.99
37 532121749 WASHER Price: $2.99
42 510089501 PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99
49 596136201 Bolts This part replaces 872110614. Price: $3.99
50 532194327 IDLER.FLAT.910.OFFSET Price: $17.99
51 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99
52 532194326 IDLER.V-GROOVE.910.OFFSET Price: $19.99
56 532125907 BELT Price: $34.99
64 532197865 SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99
73 595316601 Bolts This part replaces 874490544. Price: $3.99
80 581550701 STRAP.TORQUE.T2 This part replaces 532408393. Price: $22.99
92 595305701 Screws This part replaces 874760520. Price: $3.99
99 532408418 ROD.ASM.BYPASS.SPRING.T2.FS Price: $7.99
114 596040501 Hardware This part replaces 873800500. Price: $2.99
116 596135701 GSPW Nuts This part replaces 873900500. Price: $2.99
121 532175611 BRACKET STRAP TORQUE Price: $6.99
122 872010520 BOLT.5/16-18X2.5 Price: $4.99
125 532428867 BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99
143 596030701 Screws This part replaces 817490508. Price: $2.99
153 532004497 RETAINER M This part replaces 532124788. Price: $4.99
159 596029501 Pins This part replaces 876020412. Price: $2.99
160 596029401 GSPW Retainers This part replaces 532169484. Price: $3.99
161 532105709 SPRING, RETURN LT Price: $9.99
162 532408784 ADAPTER.TRANSAXLE.T2.TLT.DRWBR Price: $6.99
163 594007201 Rods This part replaces 532413322. Price: $22.99
166 532429164 NUT.PUSH.625 This part replaces 532197290. Price: $4.99
167 531152901 SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99
170 532413430 KEEPER.CENTER SPAN.1.688 Price: $5.99
171 872110622 BOLT Price: $3.99
183 532156972 SPACER, AXLE PVST Price: $5.99
184 532196439 HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99
185 596435101 Bolts This part replaces 872110620. Price: $2.99
186 532194321 SPACER.RETAINER Price: $7.99
187 596135501 Washers This part replaces 819133210. Price: $4.99
188 582217001 LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99
189 531169001 SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99
190 532194318 KEEPER.BELLCRANK.DRIVE Price: $5.99
205 532121748 WASHER Price: $3.99
206 532448596 BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99
207 587031402 Latch This part replaces 532197868. Price: $5.99
208 596564101 Gears This part replaces 532197869. Price: $4.99
209 596869801 Rods This part replaces 532199592. Price: $5.99
210 532400980 ROCKER.ASM.PEDAL.CONTR Price: $32.99
211 532120183 BEARING.NYLON Price: $5.99
213 532403119 KNOB.CONTROL.CRUSIE.HU Price: $8.99
214 532421263 PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99
215 532401723 PEDAL.REVERSE.TEX.GT.4 Price: $12.99
216 532196131 BRACKET.PULLEY.IDLER.W/TEX Price: $6.99
221 532403187 RETAINER.SPRING.CLIP.H Price: $3.99
222 879212010 WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99
