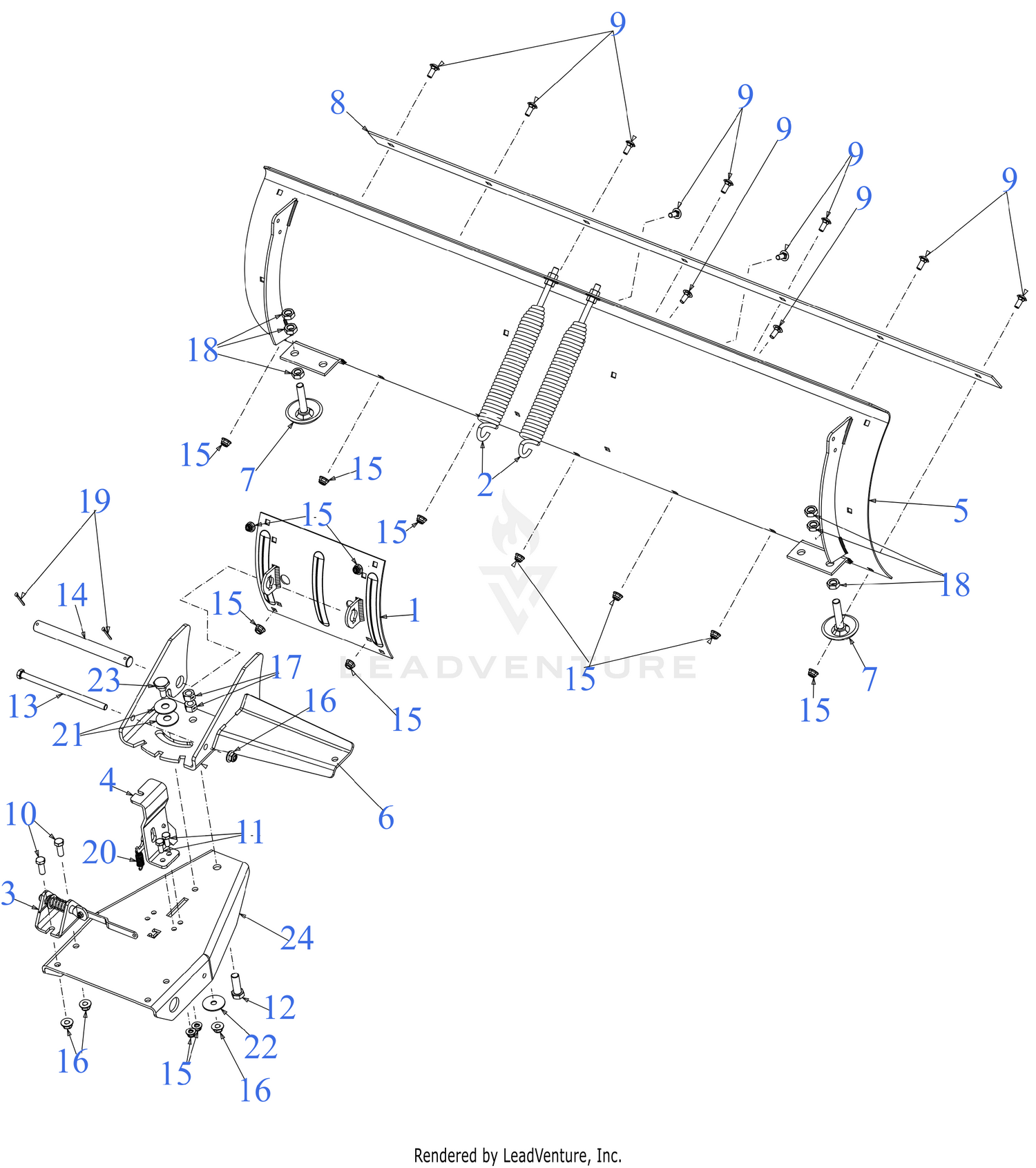

| Ref | Part Number | Description |
|---|
| 2 |
989-00662 |
TRIP SPRING KIT Price: $29.87 |
| 3 |
989-00663A |
LOCKING ASSEMBLY Price: $51.17 |
| 4 |
N/A |
LOCK LEVER ASSEMBLY |
| 7 |
703-0650 |
BLADE SKID SHOE Price: $43.77 |
| 9 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 10 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 11 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 12 |
710-3181 |
SCREW 1/2-13X1.50 GR5 Price: $6.01 |
| 13 |
710-3261 |
SCREW 3/8-16 x 7.00 GR5 Price: $12.57 |
| 14 |
711-06173 |
PIVOT SHAFT Price: $12.27 |
| 15 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 16 |
712-04065 |
NUT Price: $3.68 |
| 17 |
712-3022 |
HEX NUT CTR LK 1/2-13 Price: $3.61 |
| 18 |
712-3048 |
HEX NUT Price: $4.08 |
| 19 |
714-0470 |
COTTER PIN Price: $3.90 |
| 20 |
732-04345 |
EXTENSION SPRING Price: $9.09 |
| 21 |
736-0208 |
WASHER .51 x 1.5 x .07 Price: $4.02 |
| 22 |
736-0234 |
FLAT WASHER .390 ID x 1.50 OD x .075 Price: $5.29 |
| 23 |
738-0507B |
SHOULDER SCREW Price: $3.86 |
