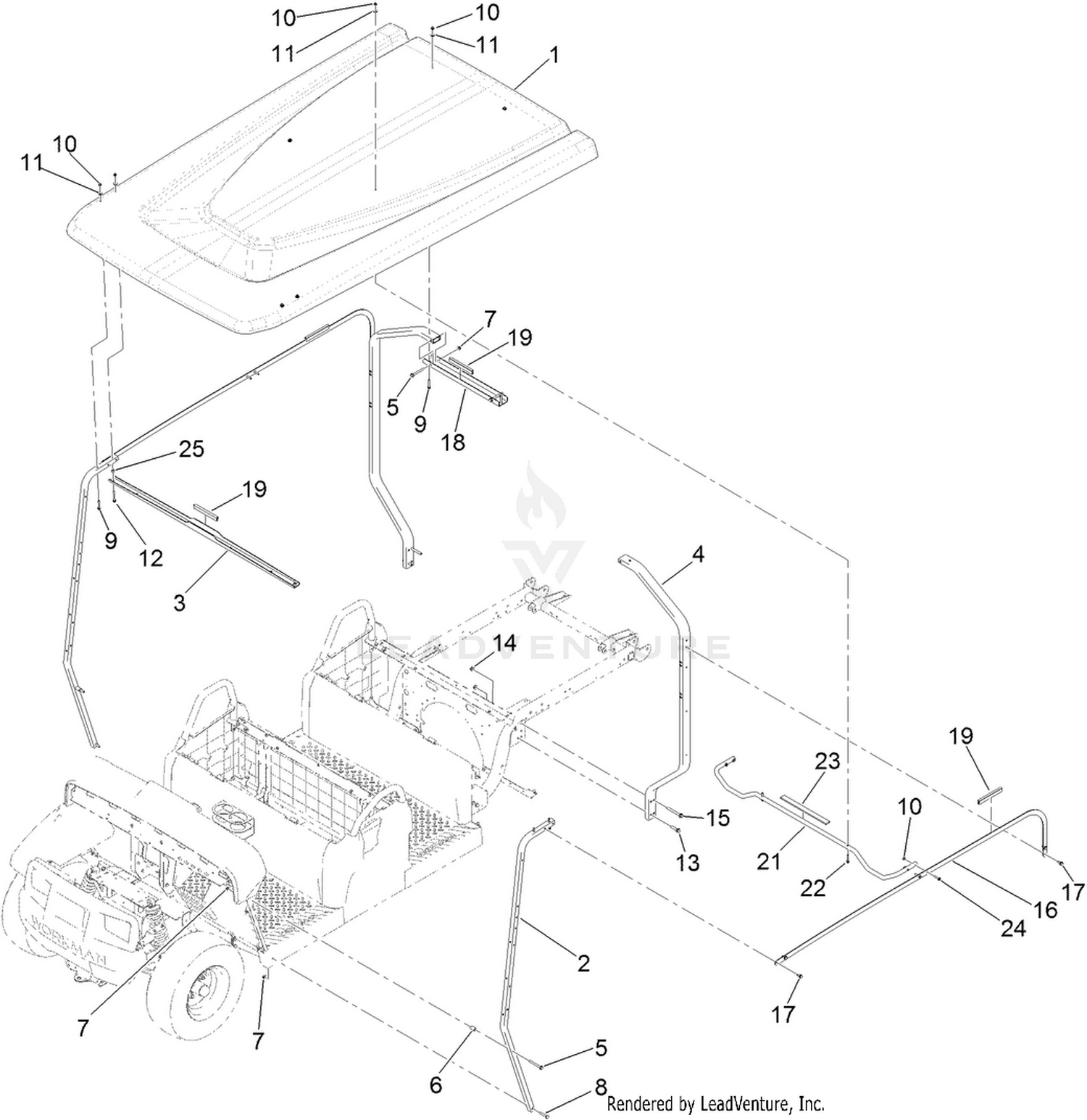

4 Person Canopy Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 138-3319 | CANOPY-EXTENDED Price: $906.55 |
| 2 | 138-3307-03 | TUBE-MOUNT, FRONT Price: $113.48 |
| 3 | 138-3309-03 | BRACKET-SUPPORT Price: $72.04 |
| 4 | 138-3321-03 | TUBE-MOUNT, REAR Price: $126.13 |
| 5 | 126-4687 | SCREW-HHF Price: $1.02 |
| 6 | 138-3324 | SPACER Price: $5.90 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 3230-6 | BOLT-CARR Price: $0.59 |
| 9 | 32105-18 | SCREW-HHF Price: $0.47 |
| 10 | 104-7201 | NUT-HF Price: $0.69 |
| 11 | 119-0872 | WASHER-SEALING, BONDED Price: $0.88 |
| 12 | 138-3326 | SCREW-HHF Price: $2.88 |
| 13 | 3234-19 | SCREW-HHF Price: $1.73 |
| 14 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 15 | 115-7660 | SCREW-HHF Price: $3.53 |
| 16 | 138-3327-03 | BRACKET-SUPPORT, LONG CANOPY Price: $81.02 |
| 17 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 18 | 138-3323-03 | BRACKET-MOUNT, TUBE Price: $43.23 |
| 19 | 138-3598 | TRIM-SEAL, BULB Price: $4.22 |
| 21 | 138-3558-03 | TUBE-SUPPORT, CANOPY Price: $135.12 |
| 22 | 94-5781 | SCREW-HHF Price: $4.47 |
| 23 | 136-2211 | FOAM-PAD Price: $3.79 |
| 24 | 3234-21 | SCREW-HHF Price: $2.19 |
