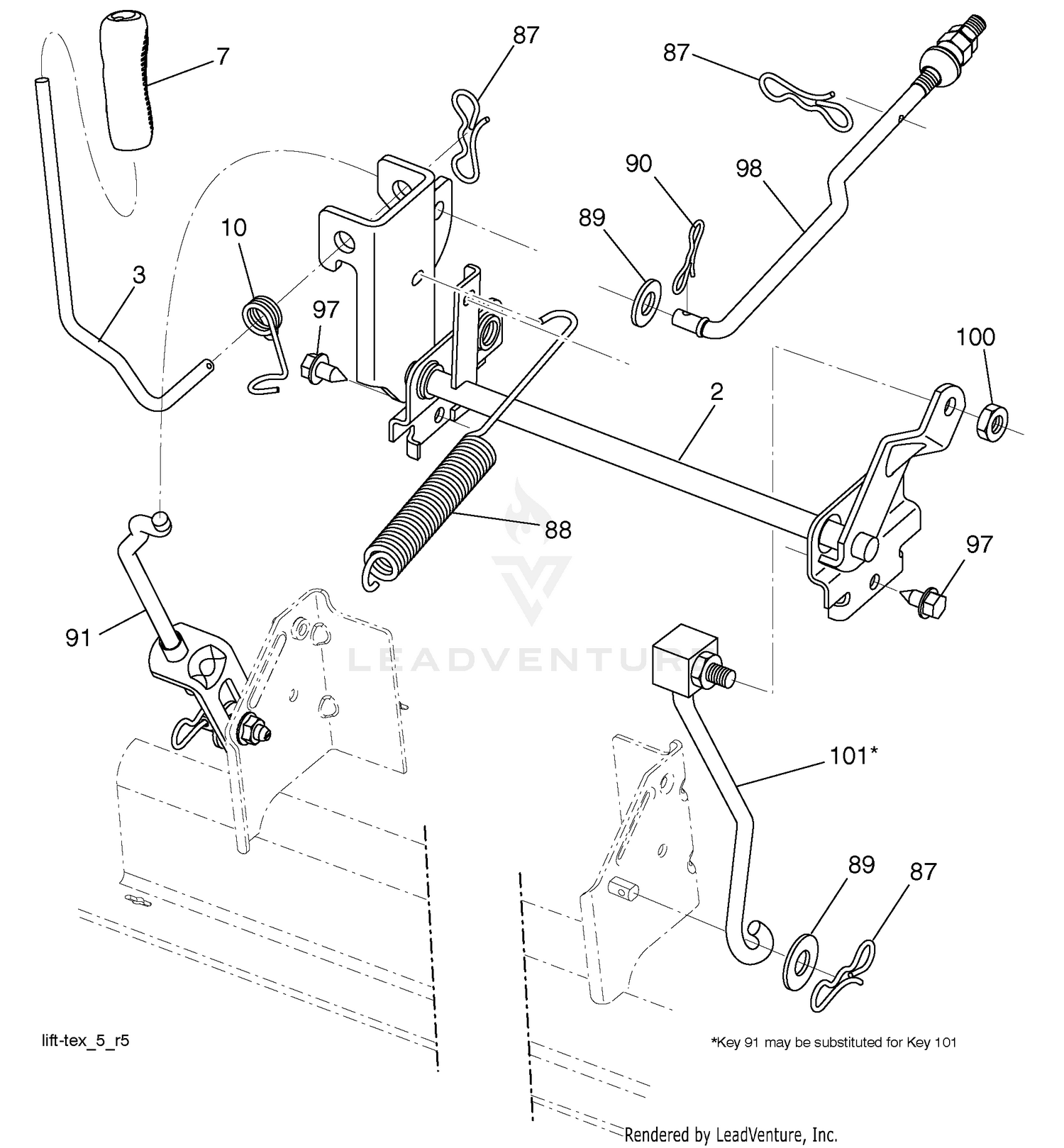

| Ref | Part Number | Description |
|---|
| 1 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT Price: $69.99 |
| 3 |
594018001 |
Levers This part replaces 532195231. Price: $17.99 |
| 3 |
94-5033-03 |
BRACKET-SUPPORT, CYLINDER This part replaces 61-2420. Price: $182.59 |
| 4 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 5 |
3217-6 |
NUT-HEX Price: $1.19 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 7 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $7.99 |
| 8 |
61-3260 |
REAR LIFT CABLE Price: $57.92 |
| 9 |
323-16 |
SCREW-HH Price: $2.89 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 10 |
61-3240 |
DISCONTINUED Price: Call Us |
| 11 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 12 |
61-3210 |
PULLEY ASM Price: $45.48 |
| 13 |
256-1 |
BUSHING Price: $21.99 |
| 14 |
61-3230 |
SPACER Price: $18.93 |
| 15 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 16 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 17 |
5-2656 |
CABLE KEEPER Price: $27.15 |
| 18 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 19 |
61-1940 |
CABLE ROLLER Price: $28.57 |
| 20 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 21 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 22 |
61-3830 |
CHAIN Price: $14.52 |
| 23 |
282-4 |
SHACKLE Price: $32.98 |
| 24 |
283-6 |
PIN-CLEVIS This part replaces 282-6. Price: $1.70 |
| 25 |
84-8440 |
BUSHING This part replaces 256-289. Price: $49.87 |
| 26 |
72-4190 |
PIN-GUIDE, CYLINDER Price: $79.12 |
| 27 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 28 |
71-1370 |
SPRING Price: $8.21 |
| 29 |
71-1380 |
PIN - SWITCH ACTUATOR Price: $51.88 |
| 30 |
17-0980 |
NUT-SPECIAL Price: $9.99 |
| 31 |
76-0020 |
DISCONTINUED Price: Call Us |
| 32 |
3214-13 |
DISCONTINUED Price: Call Us |
| 33 |
237-42 |
O-RING Price: $2.78 |
| 34 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 35 |
237-22 |
O-RING Price: $2.43 |
| 36 |
61-2490 |
HOSE ASM Price: $109.21 |
| 37 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 38 |
61-2500 |
HOSE ASM Price: $76.84 |
| 39 |
5-2655 |
CABLE KEEPER Price: $28.04 |
| 40 |
5-2653 |
PULLEY ASM Price: $38.12 |
| 41 |
61-2430 |
LIFT HUB WA Price: $116.98 |
| 42 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 43 |
283-42 |
PIN-CLEVIS Price: $40.05 |
| 44 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 45 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 46 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 47 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 48 |
61-2990 |
SPACER Price: $33.75 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $9.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
