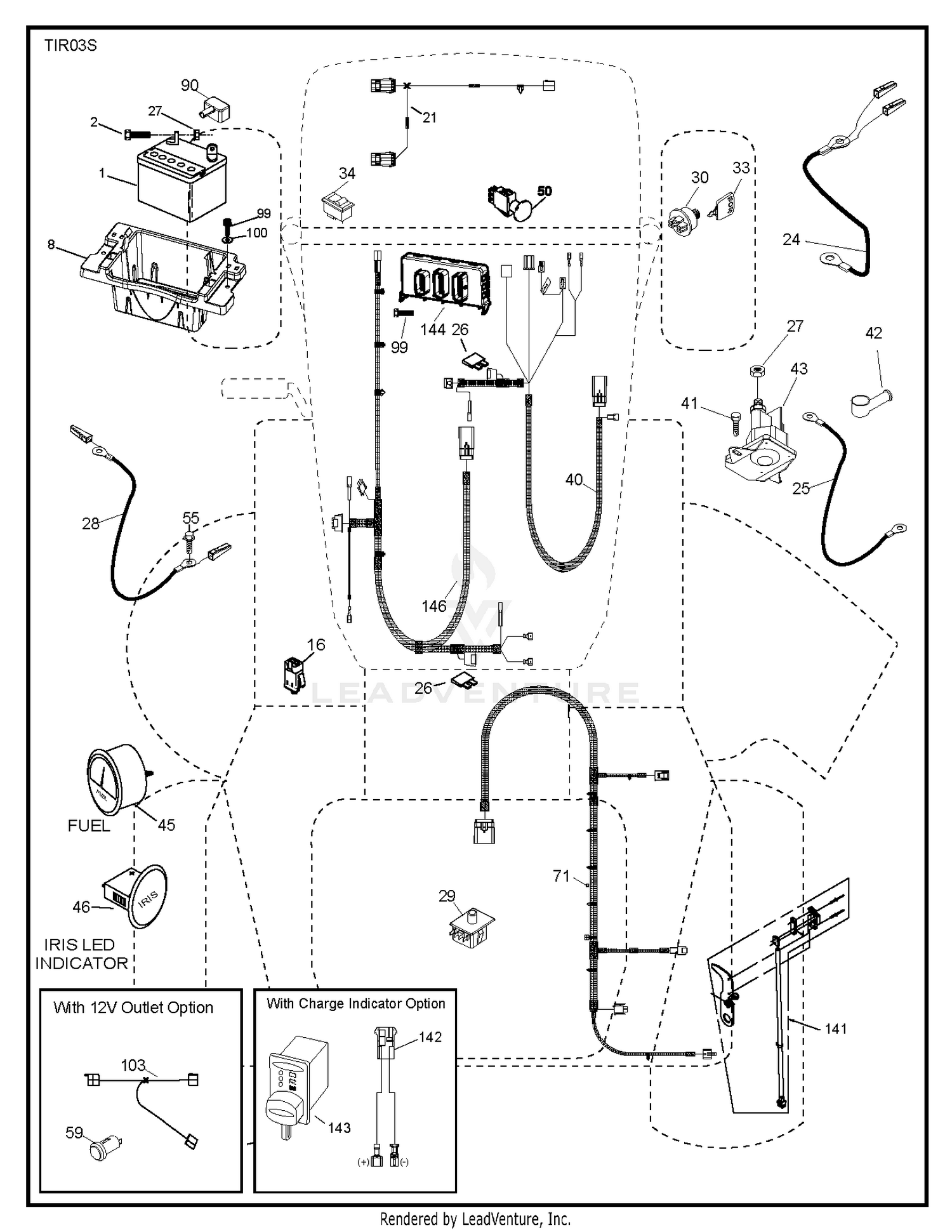

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 8 |
532414126 |
TRAY.ASM.BATTERY.FRT.TEX.CARB Price: $32.99 |
| 10 |
98-9596 |
JOINT-EYE Price: $18.69 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 20 |
105-3727 |
INJECTION PUMP ASM Price: $2,972.62 |
| 21 |
585436401 |
HARNESS LIGHT ASSY TRACTOR, Price: $22.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
590223701 |
GROUND CABLE TWO HARNESS TAPS, Price: $14.99 |
| 29 |
587648401 |
SWITCH SEAT, 4 PIN NC/NO Price: $14.99 |
| 30 |
105-3728 |
SHIM-PUMP, INJECTION (.20MM) Price: $7.35 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
105-3729 |
SHIM-PUMP, INJECTION (.25MM) Price: $8.68 |
| 40 |
590193201 |
WIRING ASSY DASH, IRIS, 300, T Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 45 |
590645901 |
GAUGE.FUEL.LEVEL. ROUND.2" Price: $49.99 |
| 46 |
594721501 |
GAUGE.INDCTR.RND.2"FARIA.6ICNS Price: $109.99 |
| 50 |
105-3730 |
SHIM-PUMP, INJECTION (.30MM) Price: $10.39 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK Price: $24.99 |
| 53 |
115-3016 |
SHIM-PUMP, INJECTION (.350MM) Price: $17.57 |
| 55 |
115-3017 |
SHIM-PUMP, INJECTION (.175MM) Price: $13.64 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 60 |
98-9361 |
BOLT-HSH Price: $0.76 |
| 70 |
98-9438 |
STUD Price: $1.33 |
| 71 |
590193301 |
WIRING ASSY CHASSIS, IRIS, 300 Price: $84.99 |
| 80 |
98-9440 |
NUT-CAP Price: $18.34 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 90 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 100 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 110 |
98-9445 |
GASKET Price: $1.84 |
| 120 |
98-9430 |
SCREW Price: $19.45 |
| 141 |
532421225 |
KIT.G700/G730.ROS 71750 Price: $149.99 |
| 144 |
590568002 |
Controls This part replaces 590568001. Price: $199.99 |
| 146 |
590193401 |
WIRING ASSY ENGINE, IRIS, 300, Price: $49.99 |
