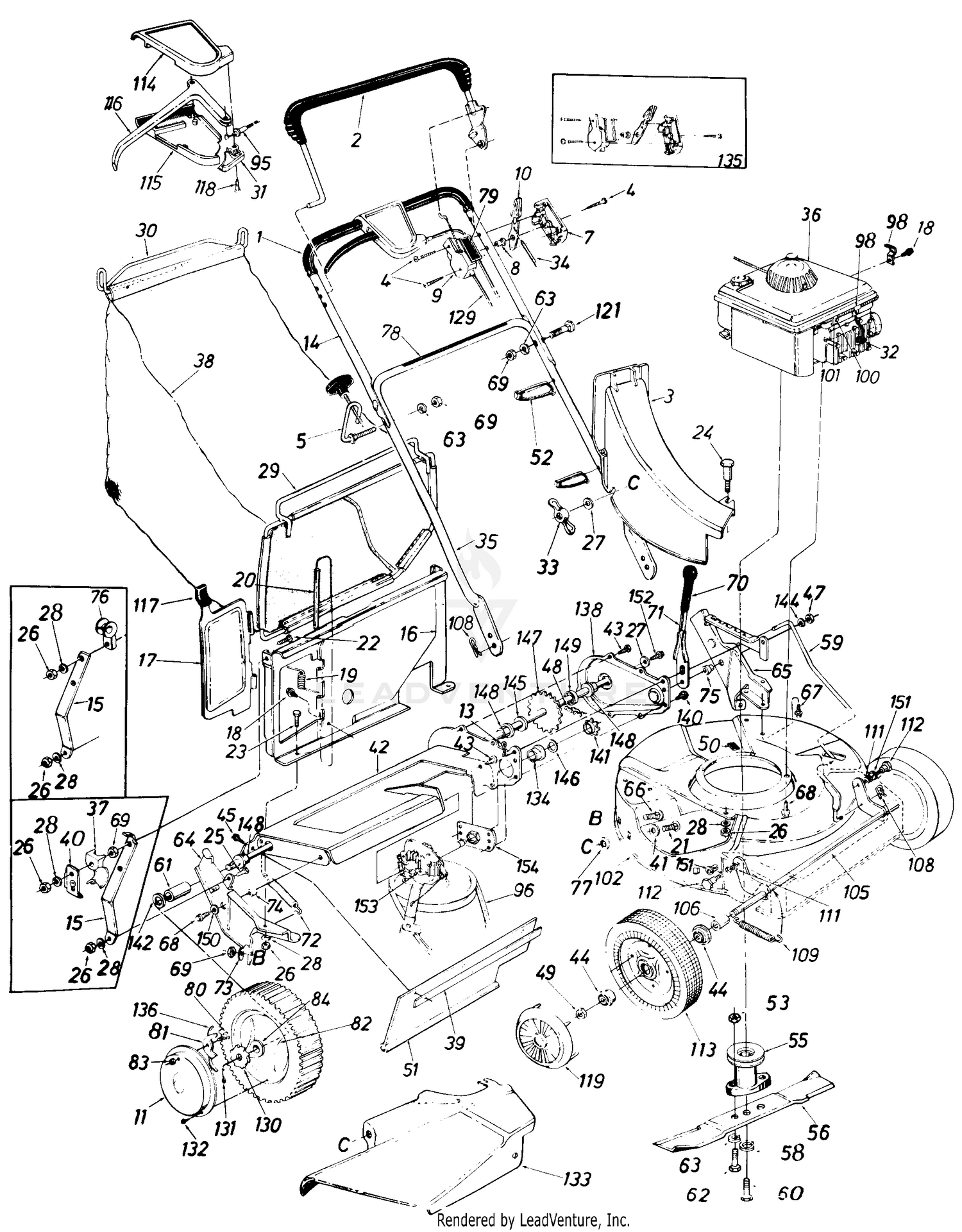

| Ref | Part Number | Description |
|---|
| 1 |
718-0145 |
Grip Price: Call Us |
| 2 |
731-0609 |
BAIL (LH) Not Available Price: |
| 3 |
731-0733 |
CHUTE ASSY-TOP DISCH Not Available Price: |
| 4 |
710-0796 |
Truss Mach. Scr. #12 x 1.50" Lg. Price: $4.75 |
| 5 |
710-0842 |
OPE GUIDE BOLT Not Available Price: |
| 7 |
731-0817 |
PANEL Not Available Price: |
| 8 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 9 |
731-0816 |
CIUTCH PANEL HALF Not Available Price: |
| 10 |
931-0972 |
Throttle Control Lever This part replaces 731-0528. Price: $8.84 |
| 13 |
714-0507 |
Cotter Pin 3/32" Dia. x .75"* Price: $3.93 |
| 14 |
749-0437 |
Upper Handle-Chrome Price: Call Us |
| 21 |
710-0134 |
Carriage Bolt 1/4-20 x .62"* Price: $3.71 |
| 23 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 24 |
738-0704 |
Shoulder Bolt .312 Dia. x .18 Lg. Special Price: $15.13 |
| 25 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg.* Price: $3.63 |
| 26 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 27 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 28 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 31 |
731-0619 |
CABLE MOUNTING CAP Not Available Price: |
| 32 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 33 |
712-0109 |
WING NUT 1/4-20 Not Available Price: |
| 34 |
946-0674A |
Throttle Wire-58" Lg. Not Available This part replaces 746-0633. Price: |
| 35 |
749-0907B |
Lower Handle This part replaces 749-0505. Price: $43.95 |
| 36 |
N/A |
Engine |
| 39 |
14835 |
STRIP-RETA Not Available Price: |
| 41 |
736-0204 |
Fl-Wash. .344" I.D. x .62" Price: $3.89 |
| 42 |
17055B |
AXLE ASSEMBLY-CHAIN Not Available This part replaces 17055. Price: |
| 43 |
710-0352 |
Hex B-Tap Scr. 1/4" x .38" Lg. Price: $4.05 |
| 44 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 45 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 47 |
912-0296 |
HEX LOCK NUT 3/8-2 Not Available This part replaces 712-0296. Price: |
| 49 |
712-0346 |
Hex L-Nut 1/2-20 Thd. Price: $3.95 |
| 50 |
731-0564 |
PLUG Not Available Price: |
| 51 |
731-0672A |
FLAP-REAR Not Available This part replaces 731-0672. Price: |
| 52 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 53 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 55 |
756-0511 |
Blade Adapter w/Pulley Price: Call Us |
| 58 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 59 |
747-0510 |
ROD-HGT ADJ 1.50 x 19.42 Not Available Price: |
| 60 |
710-0331 |
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) Price: $6.01 |
| 61 |
748-0190 |
Spacer .513" I.D. x .703" O.D. x .69" Lg. Price: $5.48 |
| 62 |
710-0888 |
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Price: $3.86 |
| 63 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 64 |
16136 |
BRACKET ASSEMBLY (RH) Not Available Price: |
| 65 |
16137 |
BRACKET ASSEMBLY (LH) Not Available Price: |
| 66 |
710-0260A |
Carriage Bolt 5/16-18 x.62 This part replaces 710-0260. Price: $3.71 |
| 67 |
710-0603 |
Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8 Price: $4.19 |
| 68 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 69 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 70 |
720-0143 |
GRIP Not Available Price: |
| 71 |
732-0473B |
HEIGHT ADJUSTMENT LEVER Not Available This part replaces 732-0473. Price: |
| 72 |
732-0481 |
EXTENSION SPRING Not Available Price: |
| 73 |
736-0242 |
Bell-Wash. 5/16" I.D. Price: $3.75 |
| 74 |
750-0526 |
Spacer .385" I.D. x .502" O.D. x .270" Lg. Price: $3.96 |
| 75 |
750-0624 |
SHOULDER SPACER Not Available Price: |
| 76 |
719-0279 |
Rope Guidet Price: $14.02 |
| 77 |
726-0233 |
Bolt Retainer 1/4 x .50" O.D. Price: $3.93 |
| 78 |
777-5776 |
LABEL Price: Call Us |
| 79 |
777-5774 |
Control Label Price: Call Us |
| 80 |
738-0137 |
BOLT, SHOULDER, 1/4-20 x 2.65 LG Not Available Price: |
| 81 |
948-0188B |
PAWL - (LH) Not Available This part replaces 748-0188. Price: |
| 82 |
734-1411 |
GEAR TREAD (8 x 1.75") Not Available Price: |
| 83 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. Price: $3.38 |
| 84 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 95 |
946-0650 |
CLUTCH CABLE 50" Not Available This part replaces 746-0650. Price: |
| 96 |
954-0343 |
V-Belt This part replaces 754-0343. Price: $27.46 |
| 98 |
12894 |
CABLE CLAMP Not Available Price: |
| 100 |
710-0651 |
Hex Wash. Hd. Self-Tap Scr. This part replaces 710-0436. Price: $3.15 |
| 101 |
751-0442 |
CASING CLAMP Not Available Price: |
| 102 |
17075 |
DECK ASSEMBLY-21IN Not Available Price: |
| 105 |
10662 |
Front Axle Ass'y. Price: Call Us |
| 106 |
711-0313 |
SLEEVE Not Available Price: |
| 108 |
714-0104 |
Intern. Cotter Pin 5/16" Dia. Price: $3.90 |
| 109 |
732-0482 |
EXTENSION SPRING Not Available Price: |
| 111 |
736-0221 |
LOCK WASHER 3/8 X.56 OD Not Available Price: |
| 112 |
938-0705 |
SHOULDER SCREW Not Available This part replaces 738-0705. Price: |
| 113 |
734-0922 |
WHEEL ASSEMBLY W/TIRE Not Available Price: |
| 114 |
731-0617A |
HALF COVER Not Available This part replaces 731-0617. Price: |
| 115 |
753-0833 |
Control Cover Half-Lower This part replaces 731-0618. Price: $47.34 |
| 116 |
731-0620A |
Drive Control This part replaces 731-0620. Price: $13.59 |
| 118 |
710-0841 |
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. Price: $3.95 |
| 119 |
N/A |
Hub Cap-Plastic |
| 121 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 129 |
946-0477A |
CONTROL CABLE Not Available This part replaces 746-0477. Price: |
| 130 |
948-0318 |
Wheel Ratchet This part replaces 748-0318. Price: $8.90 |
| 131 |
714-0115 |
Cotter Pin 1/8" Dia. x 1.00" Lg.* Price: $3.48 |
| 132 |
710-0748 |
SCREW #12-14 x .500 Not Available Price: |
| 133 |
16559 |
DEFLECTOR ASSY Not Available Price: |
| 134 |
748-0249 |
BUSHING-FL Not Available Price: |
| 135 |
753-0360 |
CONTROL HOUSING COMP. Not Available Price: |
| 136 |
10622B |
Spring - Nylon Not Available This part replaces 10622. Price: |
| 138 |
17053 |
COVER-CHAI Not Available Price: |
| 140 |
710-0599 |
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. Price: $3.86 |
| 141 |
713-0400 |
SPROCKET-7T Not Available Price: |
| 142 |
736-0326 |
Fl-Wash. .510" I.D. x 1.0" O.D. Price: $3.89 |
| 144 |
736-0300 |
Fl-Wash. .385" I.D. x .87" O.D. Price: $3.93 |
| 145 |
736-0326 |
Fl-Wash. .51" I.D. x 1.0" O.D. Price: $3.89 |
| 146 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 147 |
738-0719 |
REAR SHAFT ASSEMBLY Not Available Price: |
| 148 |
741-0324A |
Flge Bearing .506 ID x .590 Lg This part replaces 741-0324. Price: $7.07 |
| 149 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 150 |
736-0179 |
Fl-Wash. .531" I.D. x 1.25" O.D. Price: $4.02 |
| 151 |
741-0491 |
Flanged Nyliner Brg. Price: $4.39 |
| 152 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 154 |
16500A-0637 |
CUP BEARING HEX Not Available This part replaces 16500. Price: |
