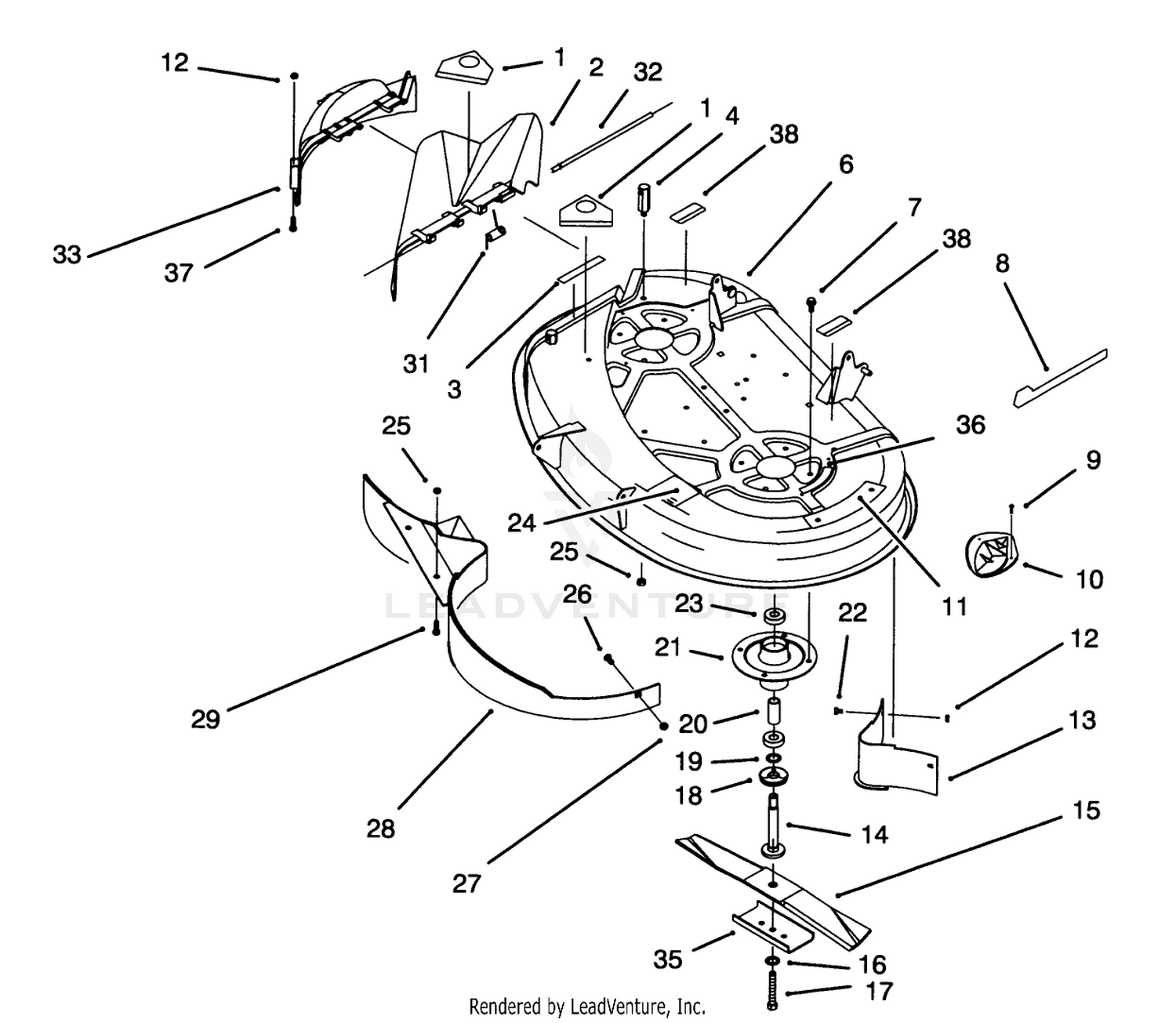

| Ref | Part Number | Description |
|---|
| 1 |
93-1122 |
DECAL-DANGER Price: $8.99 |
| 2 |
93-0317 |
DEFLECTOR ASM Price: $47.57 |
| 3 |
68-3650 |
DECAL-DANGER, DEFLECTOR Price: $8.85 |
| 4 |
57-4360 |
REAR PIVOT POST (PLTD) Price: $37.26 |
| 6 |
16-9469 |
WA-38" DECK *R This part replaces 88-5780-01. Price: $476.01 |
| 7 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 8 |
92-9520 |
DECAL-RECYCLER DECK 38" Price: $25.47 |
| 9 |
32144-111 |
SCREW-PPH Price: $0.66 |
| 10 |
76-2160 |
PLATE-KICKER Price: $10.37 |
| 11 |
79-3140 |
DECAL-DANGER Price: $10.11 |
| 12 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 13 |
79-1640-03 |
BAFFLE ASM This part replaces 79-1640. Price: $39.67 |
| 14 |
80-4341 |
SHAFT-SPINDLE Price: $40.48 |
| 15 |
14-7799 |
BLADE KIT This part replaces 79-3061. Price: $54.71 |
| 16 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 17 |
26-0671 |
SCREW-HH Price: $7.99 |
| 18 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 19 |
80-4380 |
SPACER Price: $4.08 |
| 20 |
62-3661 |
SPACER Price: $10.41 |
| 21 |
88-4510 |
HOUSING-SPINDLE Price: $71.13 |
| 22 |
321-4 |
SCREW-HH Price: $0.99 |
| 23 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 24 |
117-0033 |
DECAL-ROUTING, BELT This part replaces 117137. Price: $4.18 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 27 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 28 |
79-1600-03 |
BAFFLE ASM This part replaces 79-1600. Price: $62.12 |
| 29 |
323-5 |
SCREW-HH Price: $0.41 |
| 31 |
57-6950 |
SPRING Price: $16.98 |
| 32 |
57-4380 |
ROD-HINGE DEFLECTOR Price: $22.21 |
| 33 |
88-4430 |
COVER-RECYCLER Price: $47.93 |
| 35 |
80-0510-03 |
STIFFENER-BLADE This part replaces 80-0510. Price: $10.93 |
| 36 |
68-3660 |
DECAL-DANGER, SHIELD Price: $6.93 |
| 37 |
321-14 |
SCREW-HH Price: $0.55 |
