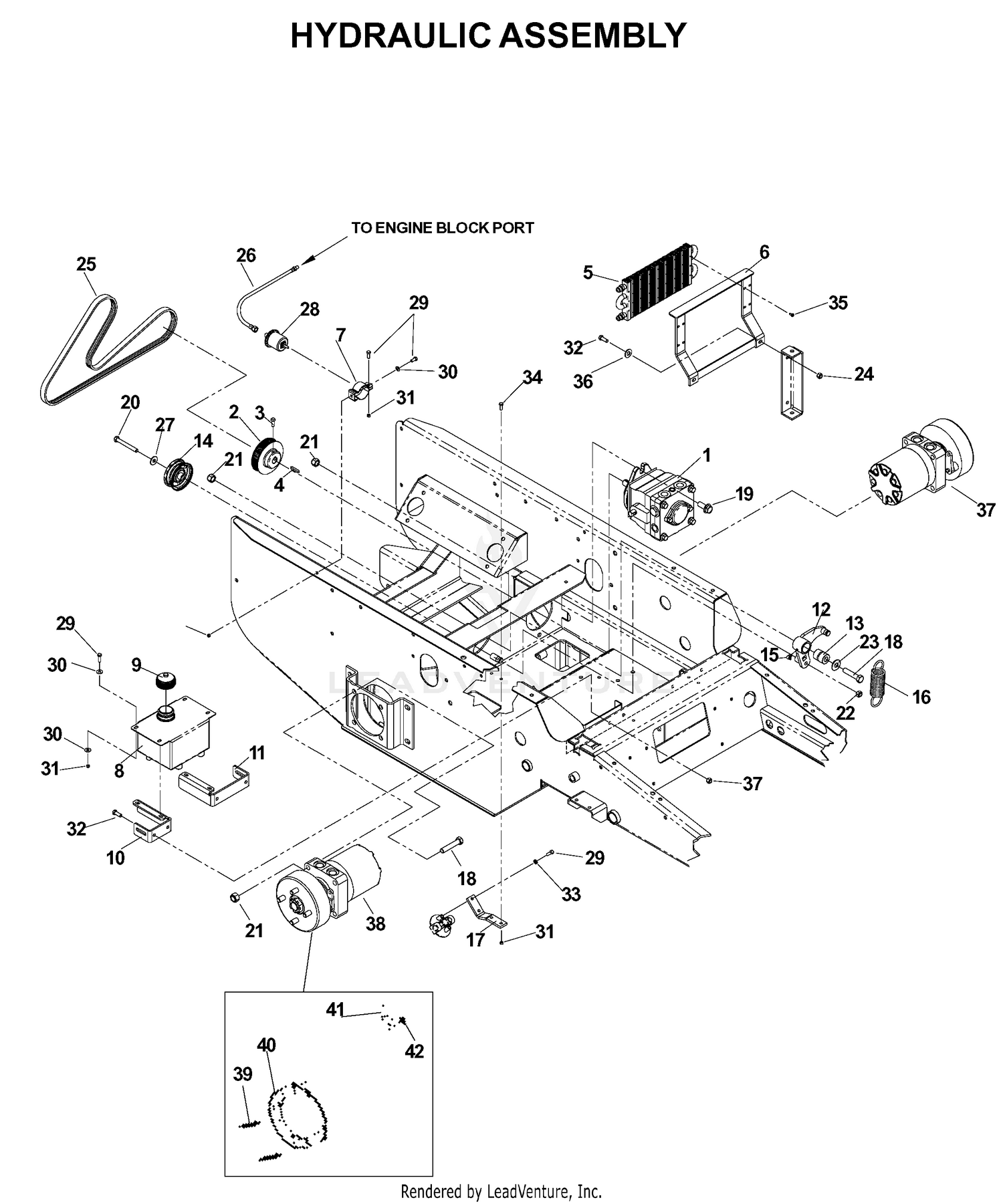

| Ref | Part Number | Description |
|---|
| 1 |
120-5573 |
COOLANT RESERVOIR ASM Price: $134.92 |
| 1 |
539106333 |
HG_PUMP CCW RH Price: $1,499.99 |
| 2 |
539106334 |
PUMP SHEAVE Price: $99.99 |
| 2 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 3 |
3274-55 |
SCREW-HSBH Price: $3.19 |
| 3 |
539102749 |
SCREW, HEAD SET 5/16C X 3/4 SQ Price: $0.99 |
| 4 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 4 |
539101177 |
KEY 5 MM SQ X 25 MM Price: $4.99 |
| 5 |
121-5554 |
SEAL-FOAM Price: $13.39 |
| 5 |
539106356 |
COOLER Price: $109.99 |
| 6 |
110-5310-01 |
BRACKET-MOUNTING Price: $55.86 |
| 6 |
539107810 |
COOLER WLDMT MT Price: $37.99 |
| 7 |
110-5276 |
SEAL-FOAM Price: $16.24 |
| 7 |
539107844 |
CLAMP-OIL SENDER Price: $1.98 |
| 8 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
539105891 |
TANK, OIL = PAINTED Price: $169.99 |
| 9 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 9 |
539101202 |
HYDRAULIC CAP Price: $19.99 |
| 10 |
120-3840 |
OIL COOLER AND RADIATOR ASM Price: $2,427.80 |
| 10 |
539105026 |
TANK MOUNT RT Price: $20.99 |
| 11 |
120-3815-03 |
FRAME-RADIATOR Price: $638.73 |
| 11 |
539105027 |
TANK MOUNT LT Price: $20.99 |
| 12 |
3234-30 |
SCREW-HHF Price: $0.41 |
| 12 |
539106425 |
ARM WELDMENT Price: $159.99 |
| 13 |
121-5568-0P |
BRACKET-RESEVOIR This part replaces 121-5568-03. Price: $22.62 |
| 13 |
539106417 |
BUSHING Price: $69.99 |
| 14 |
133-2994 |
HOSE-FORMED Price: $36.26 |
| 14 |
539919078 |
IDLER PULLEY Price: $27.99 |
| 15 |
121-5558 |
HOSE-RADIATOR, LOWER Price: $50.96 |
| 15 |
539912758 |
ZERK Price: $3.99 |
| 16 |
125-2901 |
SHROUD-FAN, TURBO DIESEL Price: $264.73 |
| 16 |
539102666 |
SPRING Price: $27.99 |
| 17 |
3269-15 |
RIVET-POP Price: $0.54 |
| 17 |
539106290 |
FILTER MOUNT - PAINTED Price: $7.99 |
| 18 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 18 |
539108346 |
HEX SCREW 1/2-13 X 2.5" GR 5 Price: $4.99 |
| 19 |
115-1554 |
LATCH-DRAW Price: $38.46 |
| 19 |
539990622 |
HCS 1/2C X 1 1/4 SERRATED HEAD Price: $3.99 |
| 20 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 20 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 21 |
121-5575 |
SEAL-FOAM Price: $3.07 |
| 21 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 22 |
121-5576 |
SEAL-FOAM Price: $4.11 |
| 22 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 23 |
120-3844-03 |
SCREEN Price: $1,127.09 |
| 23 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 24 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 24 |
93-6028 |
PLATE-LOGO Price: $13.70 |
| 25 |
138-6996 |
NUT-PUSH Price: $0.34 |
| 25 |
539106341 |
PUMP BELT Price: $27.99 |
| 26 |
115-1556 |
PIN-BALL, DETENT Price: $8.01 |
| 26 |
539108053 |
HOSE Price: $12.99 |
| 27 |
110-8752 |
HOSE-FUEL Price: $9.32 |
| 27 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 28 |
110-0969 |
SEAL-FOAM Price: $2.48 |
| 28 |
539106382 |
SENDER,OIL PRESS Price: $109.99 |
| 29 |
125-2905 |
CAP-SHROUD, DIESEL Price: $114.82 |
| 29 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 30 |
125-8767 |
SEAL-FOAM Price: $12.86 |
| 30 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 31 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 31 |
93-7272 |
DECAL-WARNING Price: $6.37 |
| 32 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 34 |
539990548 |
HCS 1/4 X 1 Price: $2.99 |
| 35 |
539106289 |
HSMS #10 X 5/8 Price: $0.65 |
| 36 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 37 |
539106266 |
WHEEL MTR ASM Price: $1,199.99 |
| 38 |
539106267 |
WHEEL MTR ASM, RT Price: $1,199.99 |
| 39 |
539108523 |
RETURN SPRING Price: $4.99 |
| 40 |
539108524 |
SHOE ASSY Price: $37.99 |
| 41 |
539108525 |
LEVER Price: $14.99 |
| 42 |
539108526 |
CLIP Price: $3.99 |
