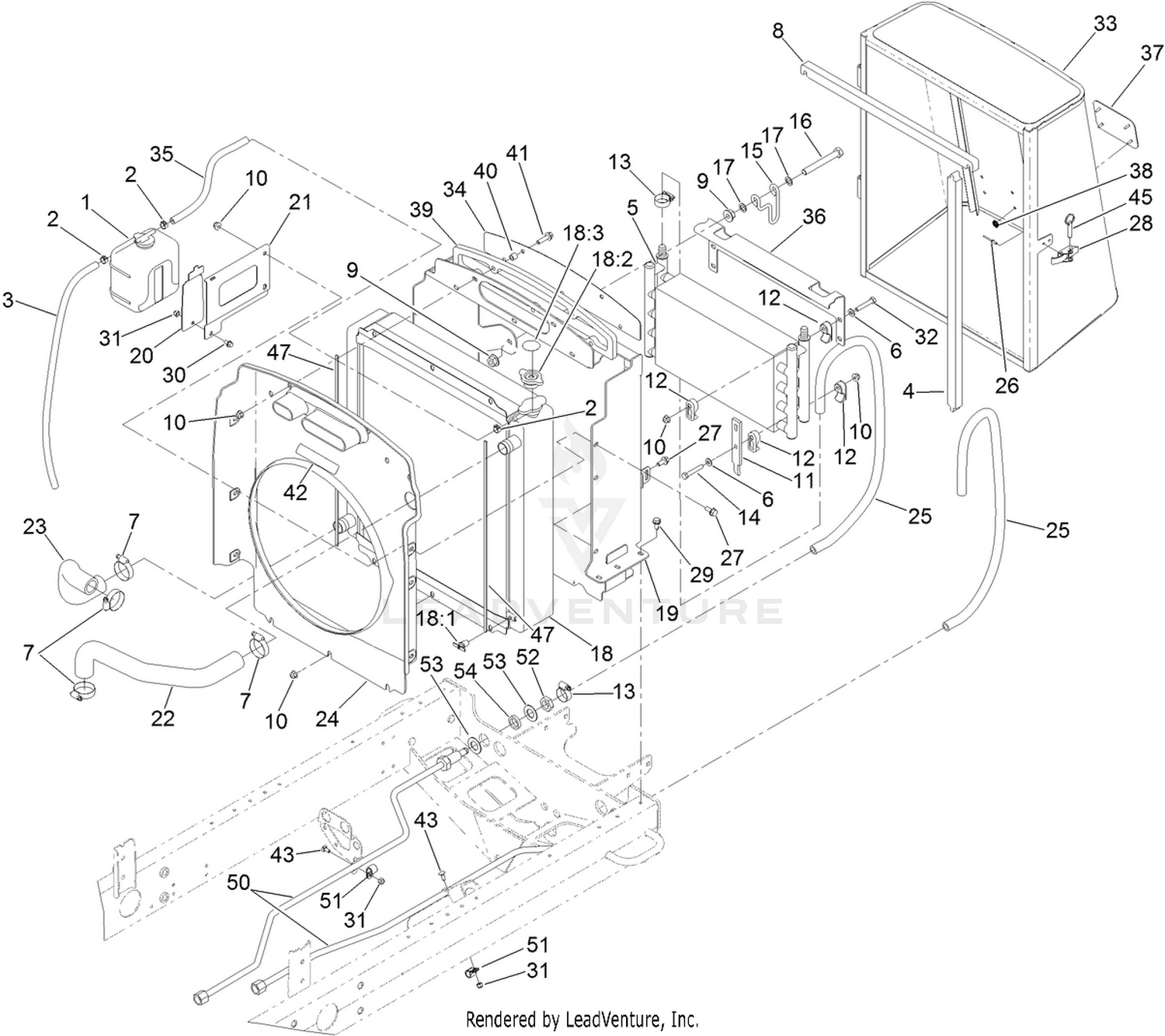

| Ref | Part Number | Description |
|---|
| 1 |
108-0638 |
BOTTLE-OVERFLOW Price: $33.20 |
| 2 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 3 |
110-3257 |
HOSE-FUEL Price: $17.26 |
| 4 |
110-0967 |
SEAL-FOAM Price: $14.99 |
| 5 |
127-2480 |
COOLER-OIL Price: $953.51 |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 8 |
110-0968 |
SEAL-FOAM Price: $12.29 |
| 9 |
32128-49 |
NUT-HHF Price: $1.04 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
104-5460-03 |
PLATE-MOUNT, OIL COOLER Price: $19.12 |
| 12 |
105-3943 |
CLAMP-COOLER, OIL Price: $8.70 |
| 13 |
2412-119 |
CLAMP-HOSE, WORM DRIVE Price: $1.83 |
| 14 |
322-10 |
SCREW-HH Price: $0.70 |
| 15 |
104-5429 |
CLAMP-FORM, WIRE Price: $11.80 |
| 16 |
325-17 |
SCREW-HH Price: $2.90 |
| 17 |
41-8440 |
WASHER Price: $1.49 |
| 18 |
119-6956 |
RADIATOR ASM Price: $1,856.53 |
| 19 |
127-2665-03 |
FRAME-SUPPORT, RADIATOR Price: $573.73 |
| 20 |
108-1665-0P |
BRACKET - RESERVIOR Price: $13.72 |
| 21 |
108-1666-0P |
BRACKET - RESERVOIR Price: $20.32 |
| 22 |
108-1696 |
HOSE-FORMED Price: $35.18 |
| 23 |
108-1697 |
HOSE-FORMED Price: $38.62 |
| 24 |
127-2474 |
SHROUD-FAN Price: $335.97 |
| 25 |
127-2346 |
HOSE Price: $20.39 |
| 26 |
3269-15 |
RIVET-POP Price: $0.54 |
| 27 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 28 |
115-1554 |
LATCH-DRAW Price: $38.46 |
| 29 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 30 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 31 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
322-21 |
SCREW-HH Price: $4.29 |
| 33 |
110-0952-03 |
SCREEN ASM Price: $1,010.39 |
| 34 |
108-1843-0P |
SCREEN - AIR INTAKE Price: $35.29 |
| 35 |
110-4104 |
HOSE-FUEL Price: $8.95 |
| 36 |
107-2043-03 |
BRACKET-OIL COOLER, TOP Price: $51.21 |
| 37 |
93-6028 |
PLATE-LOGO Price: $13.70 |
| 38 |
138-6996 |
NUT-PUSH Price: $0.34 |
| 39 |
110-5324 |
SEAL-FOAM Price: $16.15 |
| 40 |
1-603903 |
SPACER Price: $4.99 |
| 41 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 42 |
93-7272 |
DECAL-WARNING Price: $6.37 |
| 43 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 45 |
115-1556 |
PIN-BALL, DETENT Price: $8.01 |
| 47 |
110-0971 |
SEAL-FOAM Price: $3.71 |
| 50 |
127-2475 |
TUBE ASM Price: $146.43 |
| 51 |
2412-73 |
CLAMP-R Price: $2.56 |
| 52 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 53 |
69-8930 |
WASHER Price: $0.81 |
