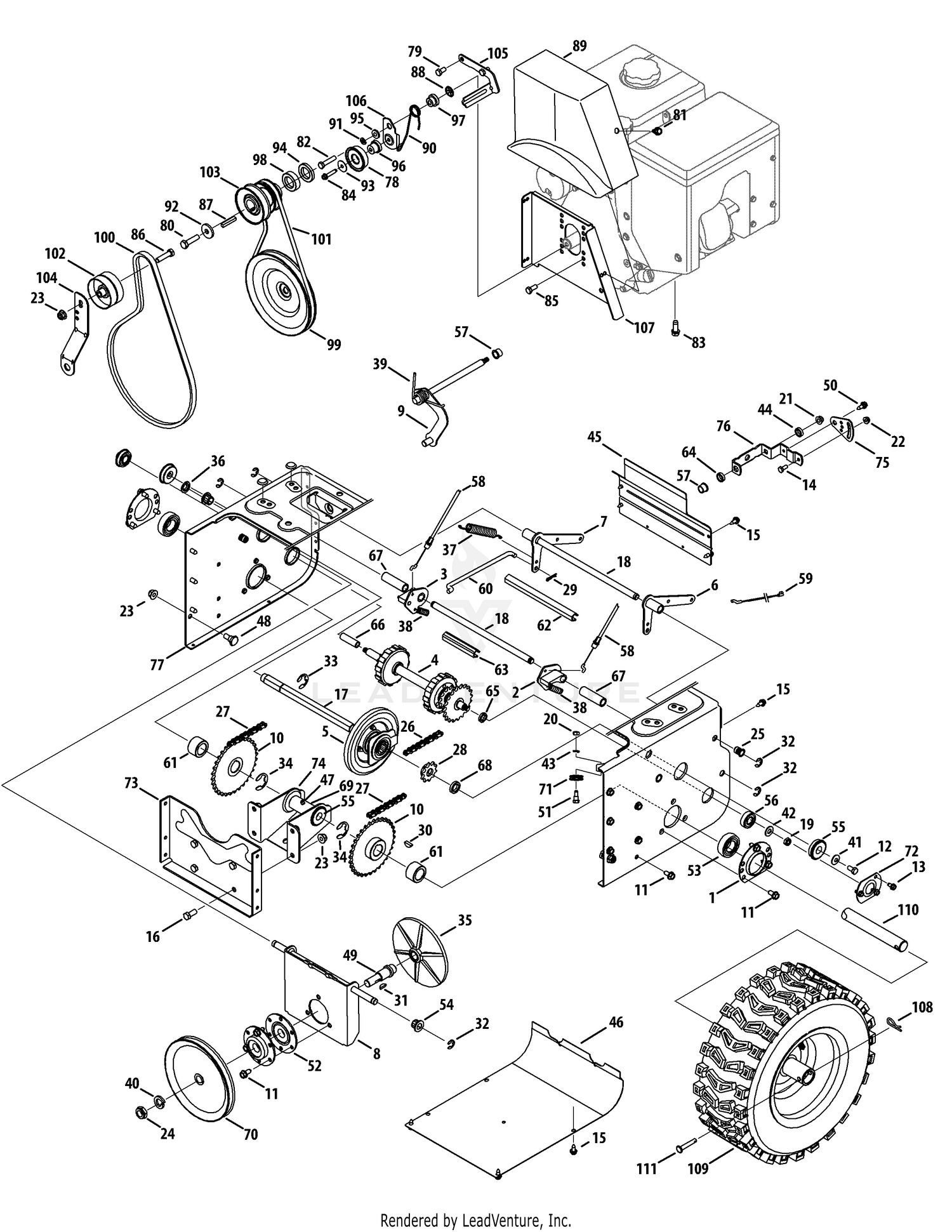

| Ref | Part Number | Description |
|---|
| 1 |
05244B |
Housing, Bearing Not Available Price: |
| 2 |
918-0279A |
LEFT DRIVE DOGG ASSEMBLY Not Available This part replaces 618-0279P. Price: |
| 3 |
918-0280A |
Dogg, Steering Drive, RH Not Available This part replaces 618-0280P. Price: |
| 4 |
918-0282E |
Shaft Assembly, Steering Price: $491.62 |
| 5 |
710-0896 |
Screw, Hex Wash Price: $3.86 |
| 5 |
718-04034 |
BONDED FRICTION WHEEL Not Available Price: |
| 5 |
918-07239 |
Wheel Ass’y Bearing 6.0" OD This part replaces 918-04178. Price: $145.52 |
| 6 |
684-0118B-0637 |
AUGER ACTUATOR BRACKET (POWDER BLACK) Not Available Price: |
| 7 |
684-0119B-0637 |
ACTUATOR BRACKET (POWDER BLACK) Not Available Price: |
| 8 |
684-04212-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 9 |
684-04229 |
SHIFT ROD ASSEMBLY Not Available Price: |
| 10 |
684-04235 |
Sprocket, 32T Price: $109.41 |
| 11 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 12 |
710-0538 |
Screw, Hex Cap Lock, Price: $4.02 |
| 13 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500 Price: $3.86 |
| 14 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 15 |
710-1652 |
Screw, Hex Wash. Price: $3.86 |
| 16 |
710-3001 |
Screw, Hex Cap, 3/8-16 Price: $6.20 |
| 17 |
911-04279 |
HEX SHAFT DRIVE Not Available Price: |
| 18 |
711-04605 |
ACTUATOR SHAFT Not Available Price: |
| 19 |
712-0116 |
Jam Nut This part replaces 912-0116. Price: $3.95 |
| 20 |
712-0138 |
Hex Nut 1/4-28 Thd. This part replaces 912-0138. Price: $5.99 |
| 21 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 22 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 23 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 24 |
712-0413 |
Hex Jam Nut, 5/8-18 This part replaces 912-0413. Price: $5.50 |
| 25 |
712-0717 |
INSERT NUT 3/8-16 Not Available Price: |
| 26 |
713-0284 |
Chain, Endless, #41 x 36L Not Available Price: |
| 27 |
713-0286 |
Chain, #420 x 40L Price: $58.49 |
| 28 |
913-04015 |
Sprocket, #41 x 10T Price: $10.58 |
| 29 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 30 |
714-0135 |
Key This part replaces 914-0135. Price: $4.05 |
| 31 |
914-0388 |
Key, Hi-Pro, 3/16 x 5/8 Price: $6.75 |
| 32 |
916-0104 |
E-Ring Price: $3.37 |
| 33 |
716-0136 |
Ring, Retaining Price: $7.56 |
| 34 |
716-04048 |
Ring, Retainer Price: $1.58 |
| 35 |
917-0302 |
Plate, Drive Not Available Price: |
| 36 |
726-0221 |
Speed Nut, .500 Price: $5.34 |
| 37 |
932-0121 |
Spring, Extension Price: $13.21 |
| 38 |
932-0209 |
Spring, Extension Price: $7.01 |
| 39 |
732-04385 |
Torsion Spring, .750 I.D. x .968 Lg. Price: $5.20 |
| 40 |
936-0158 |
Washer, Lock, 5/8 Price: $3.90 |
| 41 |
736-0242 |
Wsh, Bell., .34 x .872 x .06 Price: $3.75 |
| 42 |
936-0864 |
Wash, .375 x .812 x .060 Price: $3.71 |
| 43 |
936-0329 |
Washer, Lock, 1/4 Price: $3.90 |
| 44 |
936-3015 |
Flat Washer, .469 x .875 x .105 Price: $3.89 |
| 45 |
790-00257 |
UPPER FRAME COVER Not Available This part replaces 790-00257-4033. Price: |
| 46 |
790-00259 |
LOWER FRAME COVER Not Available This part replaces 790-00259-4033. Price: |
| 47 |
937-3000 |
Fitting, Lube, 3/16 Drive Price: $4.04 |
| 48 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 49 |
738-0279 |
Spindle, Drive Plate Price: $50.80 |
| 50 |
738-04184A |
Shoulder Screw, .368 x .113 Price: $5.99 |
| 51 |
738-0924A |
Screw, Hex Shldr., 1/4-28 Price: $5.94 |
| 52 |
741-0163A |
BEARING HOUSING ASSEMBLY Not Available Price: |
| 53 |
941-04025 |
Bearing, Self Aligning Price: $32.04 |
| 54 |
741-04108 |
Bearing, Hex Flange Price: $5.20 |
| 55 |
941-0563 |
Bearing, Ball Price: $33.84 |
| 56 |
741-0747 |
Bush, Flg, .5625 x 1.375 x .4375 Price: $16.53 |
| 57 |
741-0748 |
Bush, Flg, .5 ID x .627 OD Price: $10.38 |
| 58 |
946-04337A |
Steering Cable, 35.97" Long Price: $29.89 |
| 59 |
946-0951A |
Cable, Auger Idler Price: $41.91 |
| 60 |
747-0973 |
DRIVE CLUTCH ROD Not Available Price: |
| 61 |
750-04703 |
Spacer, 1.0 ID x 1.50 OD Not Available Price: |
| 62 |
750-04717 |
SPACER Not Available Price: |
| 63 |
750-04718 |
SPACER Not Available Price: |
| 64 |
750-04719 |
Spacer, .5151 ID x .750 OD x .220 Price: $3.91 |
| 65 |
750-05342 |
Spacer, .566 ID x .87 OD x .190 Price: $2.86 |
| 66 |
750-05343 |
Spacer, .566 ID x .87 OD x 1.25 Price: $3.77 |
| 67 |
750-0903B |
SPLIT SPACER Not Available Price: |
| 68 |
950-0997 |
Spacer, .675 x 1.0 x .23 Price: $6.07 |
| 69 |
750-1302B |
Spacer, .6725 x 1.125 x 2.48 Price: $41.80 |
| 70 |
756-0344 |
Pulley, Auger Price: $71.48 |
| 71 |
756-0625 |
Roller, Cable Price: $8.52 |
| 72 |
784-0404 |
Bearing Retaining Bracket Price: $7.18 |
| 73 |
784-0406A-0637 |
FRAME SUPPORT BRACKET Not Available Price: |
| 74 |
784-0407-0637 |
AXLE SUPPORT BRACKET Not Available Price: |
| 75 |
790-00217A |
Speed Selector Pivot Bracket This part replaces 790-00217A-0637. Price: $8.22 |
| 76 |
790-00218A |
Speed Selector Shift Bracket This part replaces 790-00218A-0637. Price: $41.84 |
| 77 |
790-00349A |
FRAME Not Available This part replaces 790-00349-4033. Price: |
| 78 |
684-04169 |
Idler Pulley Assembly Price: $29.87 |
| 79 |
710-0627 |
Screw, Hex Cap, 5/16-24 Price: $3.68 |
| 80 |
710-0191 |
Hex Hd. Screw, 3/8-24 x 1.25 GR8 Price: $4.02 |
| 81 |
710-0607 |
Screw, Hx Wash Hd Tapp Price: $6.06 |
| 82 |
710-0624 |
Screw, Hex Cap, 5/16-24 x 1.50 Price: $5.37 |
| 83 |
710-0654A |
Screw, 3/8-16 x 1.00 Price: $3.75 |
| 84 |
710-0809 |
Screw, 1/4-20 x 1.25 Price: $6.37 |
| 85 |
738-04439 |
SHOULDER SCREW Price: $3.49 |
| 86 |
710-0347 |
Hex Head Screw, 3/8-16 x 1.75 Price: $4.39 |
| 87 |
914-0105 |
Square Key, 3/16 x 1.00 Price: $3.22 |
| 88 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 89 |
931-2531 |
Cover, Belt Price: $45.06 |
| 90 |
732-04308C |
Torsion Spring, .850 dia. x .333 lg. This part replaces 732-04308A. Price: $4.42 |
| 91 |
936-0119 |
Washer, Lock, 5/16 Price: $4.29 |
| 92 |
736-3082A |
Washer, Flat, .45 x 1.5 Price: $9.09 |
| 93 |
736-3092 |
Washer, Flat, .265 x 1.0 x .030 Price: $3.68 |
| 94 |
750-05316 |
Spacer, 1.155 ID x 1.50 OD x .15 Not Available Price: |
| 95 |
748-04112B |
Shoulder Spcr., .3175 x .500 x.094 Price: $3.60 |
| 96 |
750-04571 |
Shoulder Spacer, .260 x .785 x .538 Price: $6.01 |
| 97 |
750-04821 |
Shoulder Spacer, .340 x 1.00 Not Available Price: |
| 98 |
750-05318 |
SPACER 1.004 x 1.625 x .35 Not Available Price: |
| 99 |
756-0344 |
Pulley, Drive Price: $71.48 |
| 100 |
954-04194A |
V-Belt, 4L x 44.60 Lg. Price: $20.88 |
| 101 |
954-04202 |
V Belt, 3/8 x 36.68 Price: $17.39 |
| 102 |
756-04224 |
Pulley, Flat Idler, 2.75 OD Price: $24.80 |
| 103 |
756-04351 |
Double Pulley, 3.25 x 2.75 Price: $41.35 |
| 104 |
784-0385D |
Bracket, Auger Idler Price: $26.17 |
| 105 |
790-00167A-0637 |
BELT KEEPER BRACKET Not Available Price: |
| 106 |
790-00208D |
Wheel Drive Idler Bracket This part replaces 790-00208C. Price: $7.85 |
| 107 |
790-00254A-0637 |
BELT COVER BRACKET Not Available Price: |
| 108 |
714-0149B |
Internal Cotter Pin This part replaces 914-0149B. Price: $3.95 |
| 109 |
634-0225A-0911 |
WHEEL ASSEMBLY (16 x 6.5 x 8) (LH) (OYSTER-CARLISLE) Not Available Price: |
| 109 |
634-0226A-0911 |
WHEEL ASSEMBLY (16 x 6.5 x 8) (RH) (OYSTER-CARLISLE) Not Available Price: |
| 110 |
711-04607A |
Axle, Wheel, 33" Price: $98.43 |
