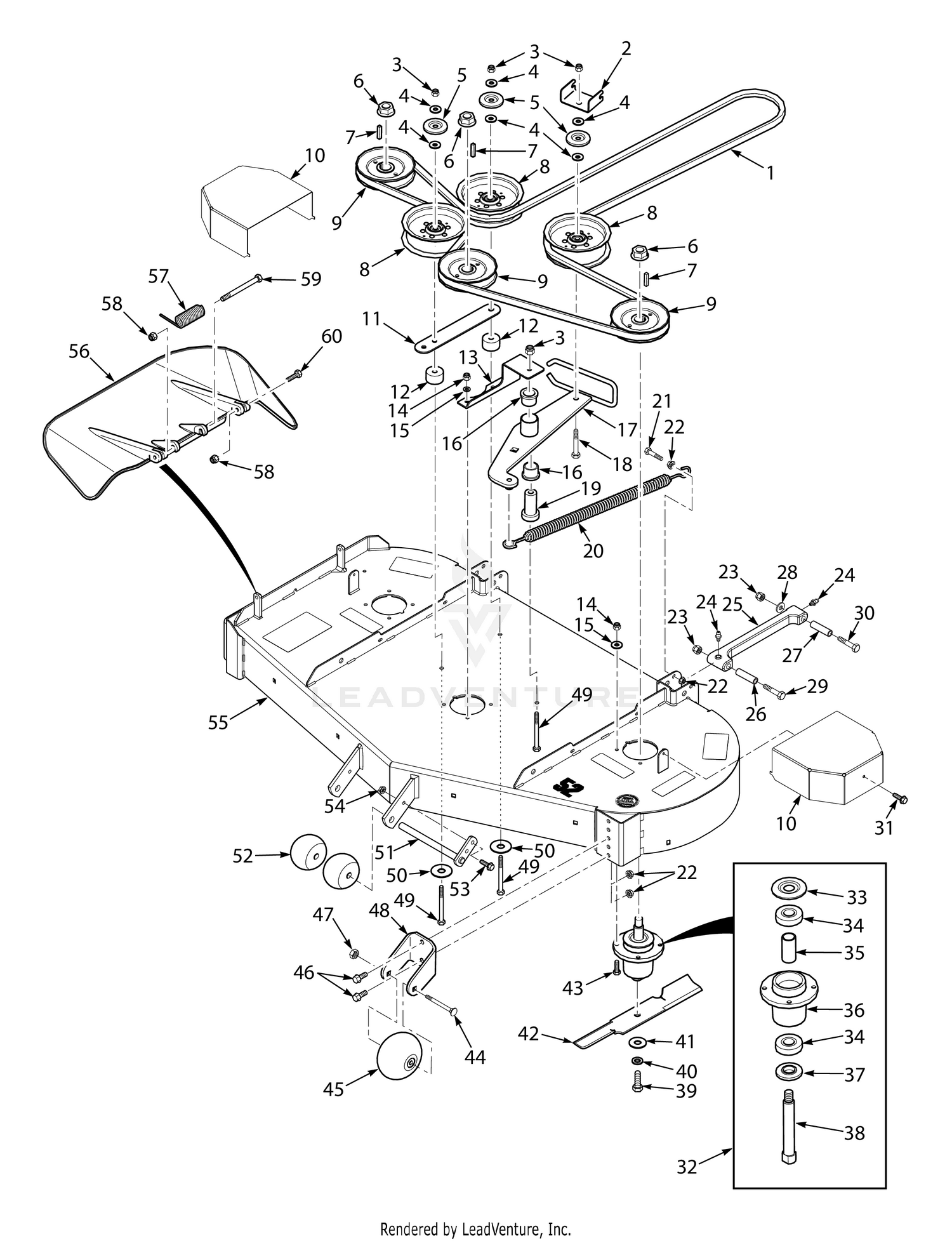

| Ref | Part Number | Description |
|---|
| 1 |
3-7444 |
DISCONTINUED Price: Call Us |
| 1 |
485350 |
Belt, Cutter Deck -48 Price: Call Us |
| 2 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 2 |
95-1829 |
GRASS SHIELD This part replaces 3-4002. Price: $37.93 |
| 3 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 3 |
3279-2 |
DISCONTINUED Price: Call Us |
| 4 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 4 |
23-2560 |
End Spider (5 Blade) Price: Call Us |
| 5 |
3262-4 |
DISCONTINUED Price: Call Us |
| 5 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 6 |
04112-06 |
Nut, 3/4-16 Spriral Lock Price: Call Us |
| 6 |
3-3898 |
DISCONTINUED Price: Call Us |
| 7 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 7 |
23-2550 |
Spider (5 Blade) Price: Call Us |
| 8 |
483422 |
Pulley, 5" Idler Price: Call Us |
| 8 |
5-2946 |
DISCONTINUED Price: Call Us |
| 9 |
483323 |
Pulley, 5.13" OD - 25mm Bore Price: Call Us |
| 9 |
8-3970 |
DISCONTINUED Price: Call Us |
| 10 |
426729 |
Belt Cover (52H) Price: Call Us |
| 10 |
8-1750 |
SPRING ARM Price: $16.98 |
| 11 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 11 |
424479 |
Brace, Pulley Price: Call Us |
| 12 |
329-2 |
SCREW-HH Price: $3.68 |
| 12 |
43711 |
Spacer, Idler Pulley Price: Call Us |
| 13 |
424548 |
Support, Idler Pivot - 48 Price: Call Us |
| 13 |
8-2570 |
THRUST BEARING Price: $6.99 |
| 14 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 14 |
3290-274 |
RIVET-POP Price: $0.25 |
| 15 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 15 |
21-4090 |
DISCONTINUED Price: $2.00 |
| 16 |
12-0430 |
DISCONTINUED Price: Call Us |
| 16 |
483453-03 |
Bearing, Plastic Price: Call Us |
| 17 |
324-5 |
SCREW-HH Price: $0.54 |
| 18 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 18 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 19 |
3210-4 |
SCREW-HH Price: $0.81 |
| 19 |
43708 |
Pivot, Idler Price: Call Us |
| 20 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 20 |
483375 |
Spring, Cutter Deck Idler Price: Call Us |
| 21 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 21 |
12-1800 |
DISCONTINUED Price: Call Us |
| 22 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 22 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 23 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 23 |
20-0480 |
PIVOT ROD Price: $8.61 |
| 24 |
3273-14 |
SCREW-HSH Price: $0.81 |
| 24 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 25 |
11-5770 |
DISCONTINUED Price: Call Us |
| 26 |
43985 |
Spacer, Pusharm - Deck Price: Call Us |
| 26 |
5-6040 |
DISCONTINUED Price: $2.00 |
| 27 |
12-9650 |
DISCONTINUED Price: Call Us |
| 27 |
43986 |
Spacer, Pusharm - Axle Price: Call Us |
| 28 |
04040-07 |
Flatwasher, 1/2 - .531 x 1.062 x .095 Price: Call Us |
| 28 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 29 |
04001-145 |
Bolt, Hex Head 1/2-13 x 3-1/2" Price: Call Us |
| 29 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 30 |
04001-52 |
Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower) Price: Call Us |
| 30 |
254-78 |
BEARING-CONE Price: $12.22 |
| 31 |
04011-29 |
Screw, 1/4-20 x .375" (52H) Price: Call Us |
| 31 |
237-58 |
O-RING Price: $2.18 |
| 32 |
461950 |
Spindle Assembly Price: Call Us |
| 32 |
5-3820 |
OIL SEAL Price: $8.69 |
| 33 |
2-4219 |
DISCONTINUED Price: Call Us |
| 33 |
483304 |
Debris Shield Price: Call Us |
| 34 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 34 |
483303 |
Bearing Price: Call Us |
| 35 |
43693 |
Spacer, Bearing Price: Call Us |
| 35 |
5-2673 |
AXLE SHAFT Price: $85.85 |
| 36 |
5-3137 |
SPACER TUBE BUSHING Price: $15.86 |
| 37 |
43694 |
Protector, Bearing Price: Call Us |
| 37 |
5-3889 |
AXLE SPACER TUBE ASM *R Price: $305.40 |
| 38 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 38 |
43695 |
Shaft, Spindle Price: Call Us |
| 39 |
04001-121 |
Bolt, Hex Head 5/8-11 x 1-1/2" Price: Call Us |
| 39 |
3219-5 |
NUT-HEX Price: $1.22 |
| 40 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 40 |
32121-12 |
PIN-ROLL Price: $0.70 |
| 41 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 41 |
19-9820 |
BED BAR PIVOT Price: $33.18 |
| 42 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 42 |
482877 |
Cutter Blade, 16-1/2" Price: Call Us |
| 43 |
04001-175 |
Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8 Price: Call Us |
| 43 |
5-4373 |
SPRING Price: $29.24 |
| 44 |
04003-26 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 44 |
11-5820 |
DISCONTINUED Price: Call Us |
| 45 |
481632 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 45 |
8-2490 |
SPHERICAL WASHER Price: $8.50 |
| 46 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 47 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 48 |
427865 |
Bracket, Anti-Scalp, (Black) Price: Call Us |
| 49 |
04001-77 |
Bolt, Hex Head, 3/8-16 x 3-1/2" Price: Call Us |
| 50 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 51 |
451926 |
Shaft Weldment, Guide Roller Price: Call Us |
| 52 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 53 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 54 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 55 |
463263 |
CUTTER DECK W/ DECALS, SMZL-48H This part replaces 463334. Price: Call Us |
| 56 |
462031 |
Discharge Chute Assy. SFZ48 Price: Call Us |
| 57 |
482245 |
Spring, Discharge Chute Price: Call Us |
| 58 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 59 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
