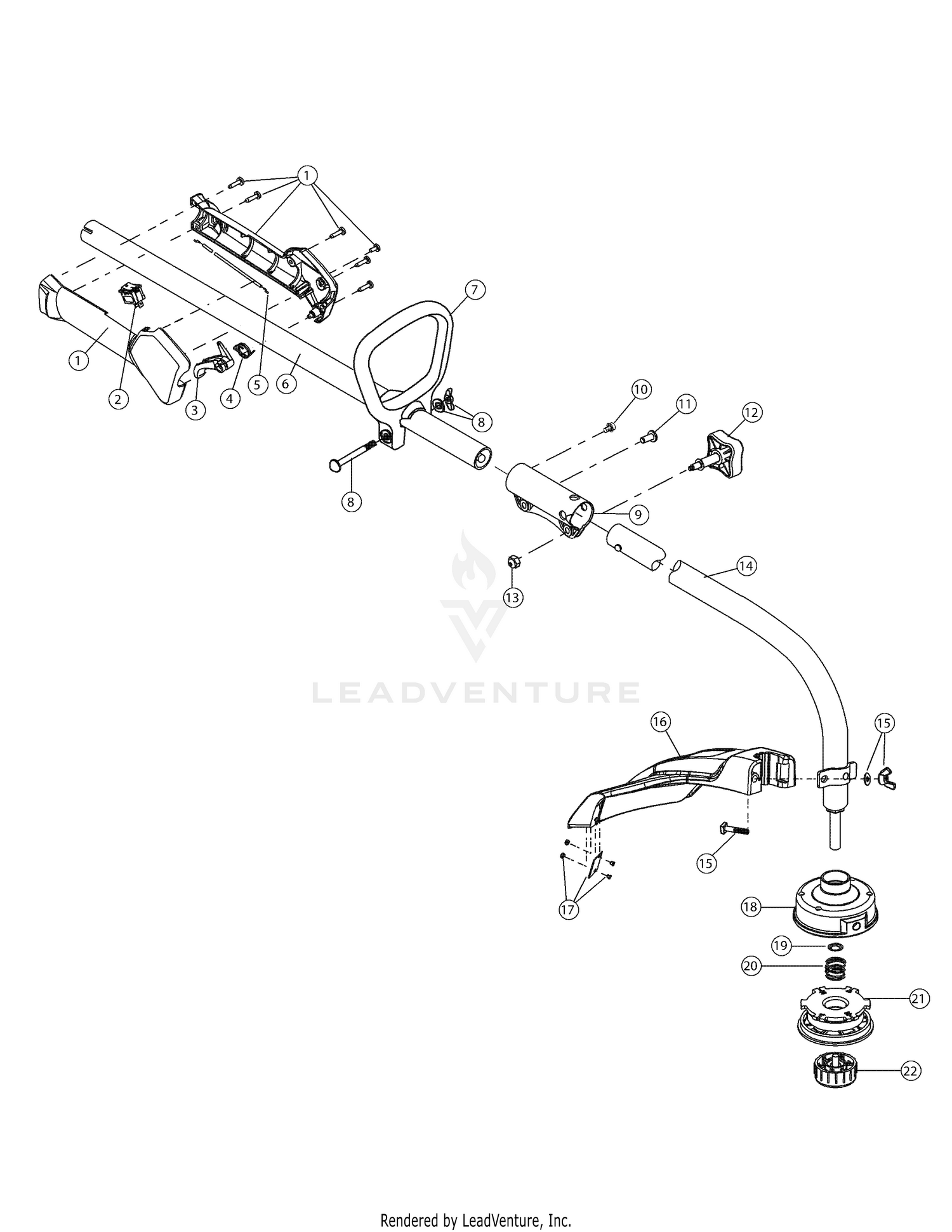

General Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 791-182405 | Switch Price: $9.29 |
| 3 | 753-04119 | Throttle Trigger Price: $6.56 |
| 4 | 791-182690 | Throttle Trigger Spring Price: $7.01 |
| 5 | 753-04405 | Throttle Cable Not Available Price: |
| 6 | 753-04344 | Upper Drive Shaft Housing Assembly Price: $79.57 |
| 8 | 791-181587 | D-Handle Hardware Price: $17.15 |
| 10 | 791-182057 | Screw Price: $3.93 |
| 11 | 791-181617 | Bolt Price: $4.59 |
| 13 | 712-04018A | Knob Retaining Nut This part replaces 753-04386. Price: $3.78 |
| 14 | 753-04508 | Lower Drive Shaft Housing Assembly Price: $75.02 |
| 15 | 753-04282 | Guard Mounting Hardware Price: $23.73 |
| 17 | 791-180553 | Blade Assembly Price: $12.96 |
| 19 | 791-610660 | Retainer Price: $4.29 |
| 20 | 791-610317B | Spring Price: $9.47 |
| 21 | 753-1155 | Inner Reel Price: $21.18 |
| 22 | 791-153066B | Bump Head Knob Assembly Price: $11.65 |
