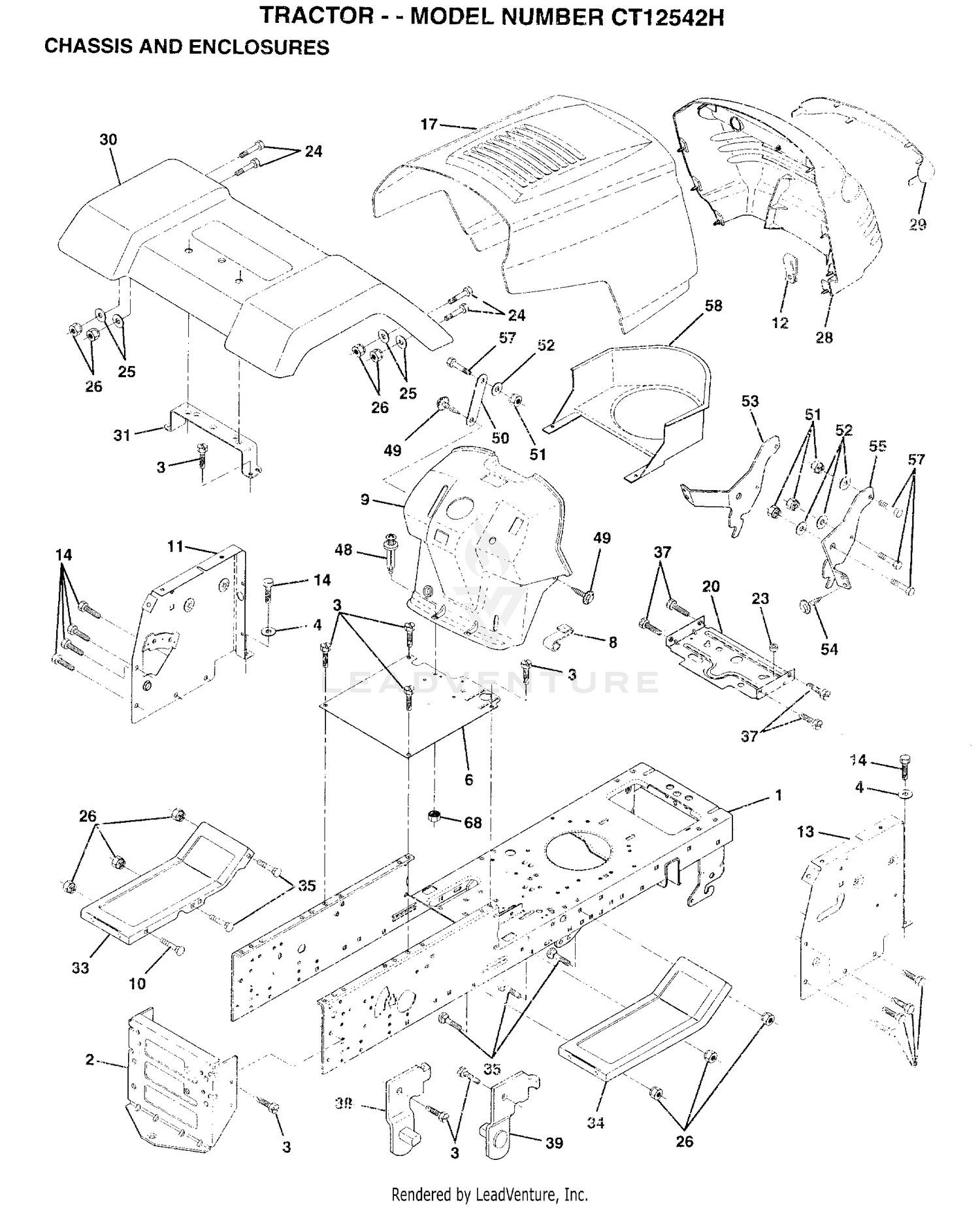

| Ref | Part Number | Description |
|---|
| 1 |
145501 |
CHASSIS.WLD.11GA Price: Call Us |
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 2 |
3220-2 |
NUT-JAM Price: $0.50 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
282-2 |
YOKE Price: $30.04 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 4 |
283-61 |
PIN-YOKE Price: $1.56 |
| 5 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 6 |
145208X016 |
SUB= 155924X015 Price: Call Us |
| 6 |
47-5320-01 |
LEVER Price: $84.02 |
| 7 |
44-0870 |
CAM SHAFT ASM Price: $213.32 |
| 8 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 9 |
140072 |
SUB= 532142465 Price: Call Us |
| 9 |
27-2320 |
BEARING Price: $15.22 |
| 10 |
57-6220 |
LINK-CONNECTING Price: $6.01 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
146965 |
PANEL.DASH.LH. Price: Call Us |
| 11 |
233-48 |
KNOB Price: $10.92 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
93-9934 |
TRACTION HANDLE ASM Price: $86.68 |
| 13 |
146959 |
PANEL.DASH.RH Price: Call Us |
| 13 |
283-57 |
PIN-CLEVIS Price: $1.15 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
49-6220 |
BRACKET-ARM, CONTROL Price: $28.06 |
| 15 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 16 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 17 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 17 |
139394X550 |
SUB= 159639X550 Price: Call Us |
| 18 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
49-6250 |
BRACKET-PIVOT Price: $22.09 |
| 20 |
145210 |
PLATE.MTG.BTRY.TK Price: Call Us |
| 20 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 21 |
3211-2 |
SCREW-HH Price: $2.17 |
| 22 |
49-6260 |
PIVOT ASM Price: $79.73 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 23 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 24 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 25 |
83-0540-01 |
TRACTION PEDAL ASM Price: $70.97 |
| 26 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 28 |
140141 |
SUB= 157373 Price: Call Us |
| 28 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 29 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 30 |
109872X550 |
FENDER.PNT. Price: Call Us |
| 30 |
32128-20 |
NUT-HF Price: $0.99 |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 31 |
2411-42 |
JOINT-BALL, LH Price: $19.07 |
| 32 |
83-0630 |
ARM-PIVOT, TRACTION Price: $25.47 |
| 33 |
105476X550 |
FOOTREST.LH.PERF. Price: Call Us |
| 33 |
3220-20 |
NUT-JAM Price: $0.92 |
| 34 |
105475X550 |
FOOTREST.RH.PERF. Price: Call Us |
| 34 |
83-0580 |
ROD-CONTROL, TRACTION Price: $53.72 |
| 35 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 35 |
72110606 |
BOLT Price: Call Us |
| 36 |
2411-43 |
JOINT-BALL Price: $21.40 |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 37 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 38 |
12-3270 |
SCREW Price: $3.09 |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 39 |
49-6290 |
PIVOT SHAFT ASM Price: $25.43 |
| 40 |
32121-51 |
PIN-ROLL Price: $0.70 |
| 41 |
93-9936 |
BRACKET-RETURN, TRACTION Price: $6.79 |
| 42 |
93-9937 |
TRACTION CABLE ASM Price: $28.43 |
| 43 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 44 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 48 |
138096 |
RIVET.PUSH.PLATE Price: Call Us |
| 49 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 50 |
142779 |
BRACE SUPT DASH Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 68 |
73510400 |
NUT Price: Call Us |
| 5479J |
PLUG |
BUTTON T Price: Call Us 5479J |
