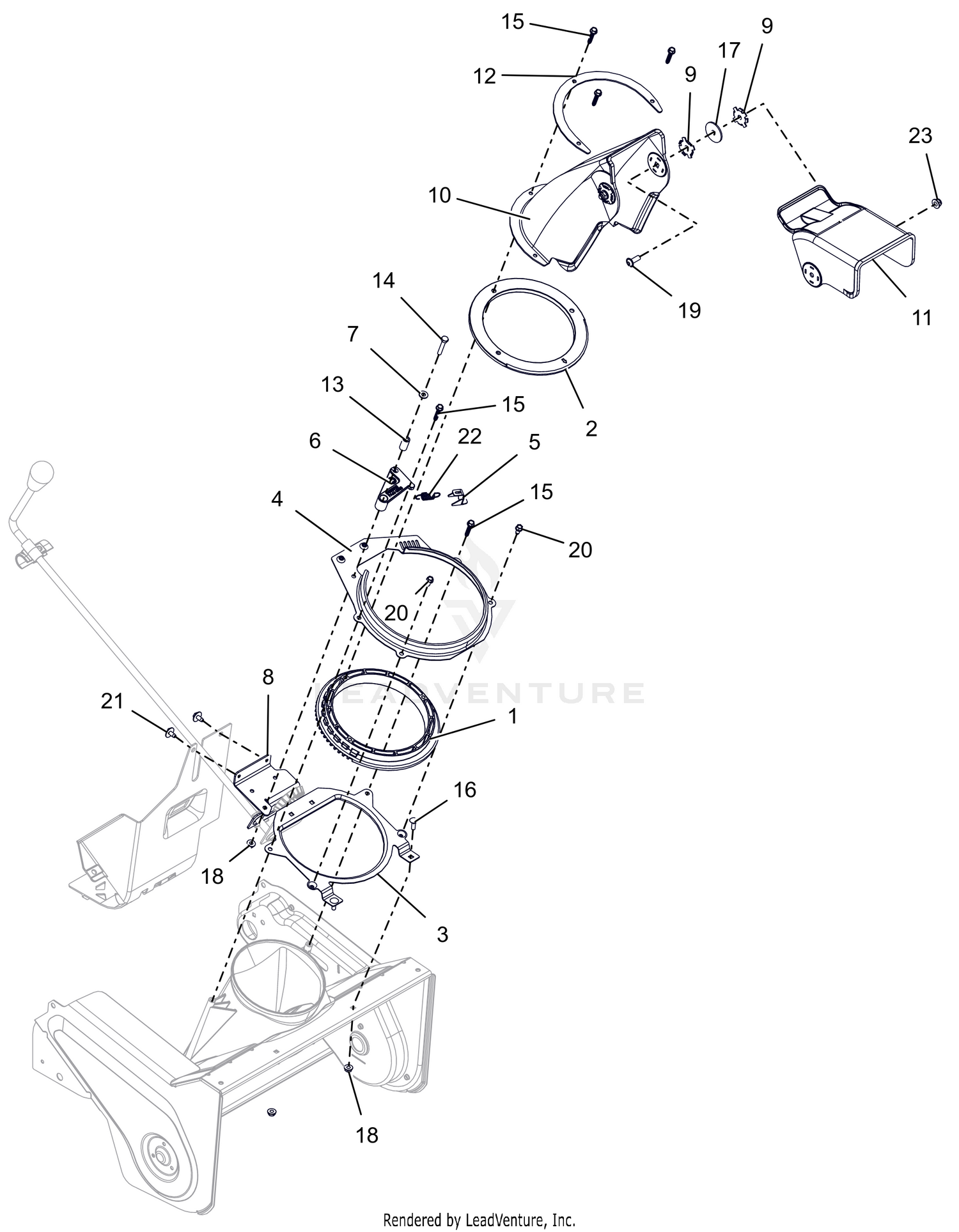

| Ref | Part Number | Description |
|---|
| 1 |
05150600 |
GEAR, CHUTE RING Price: $21.45 |
| 2 |
04550000 |
GUARD, WATER Price: $3.45 |
| 3 |
04552651 |
RING, CHUTE MOUNT - LOWER Price: $14.95 |
| 4 |
04552751 |
RING, CHUTE MOUNT - UPPER Price: $27.95 |
| 5 |
04553751 |
BRKT, SPRG Price: $11.45 |
| 6 |
04583900 |
ARM, PAWL Price: $13.45 |
| 7 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC Price: $0.45 |
| 8 |
05123151 |
BRKT, CHUTE ROTATION - REAR Price: $11.45 |
| 9 |
05123400 |
PLATE, FRICTION Price: $3.45 |
| 10 |
05192600 |
CHUTE, DISCHARGE-SINGLE STAGE Price: $16.45 |
| 11 |
53804400 |
CAP, CHUTE - W/DECAL This part replaces 05192700. Price: $36.45 |
| 12 |
05163451 |
BRKT, ROTATION - MANUAL Price: $20.45 |
| 13 |
05501131 |
BSHG, SLV .265X.505X.995 Price: $3.45 |
| 14 |
05901739 |
BLT, HEX .25-20X1.50 G5 ZCC Price: $1.45 |
| 15 |
06100237 |
SCR,PLASTITE .25-10X1.25 ZCC Price: $3.45 |
| 16 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC Price: $0.95 |
| 17 |
06401040 |
WSHR,FRICTION-.332X1.525X.094 Price: $3.45 |
| 18 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC Price: $0.95 |
| 19 |
06100233 |
SCR,BTN-FLG .31-18X0.875 Price: $3.45 |
| 20 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 21 |
07400138 |
SCR, TAP .25-20X.50 LG HWH ZCC Price: $1.45 |
| 22 |
08300532 |
SPRG, TENSION .052X.520X1.74 Price: $3.45 |
