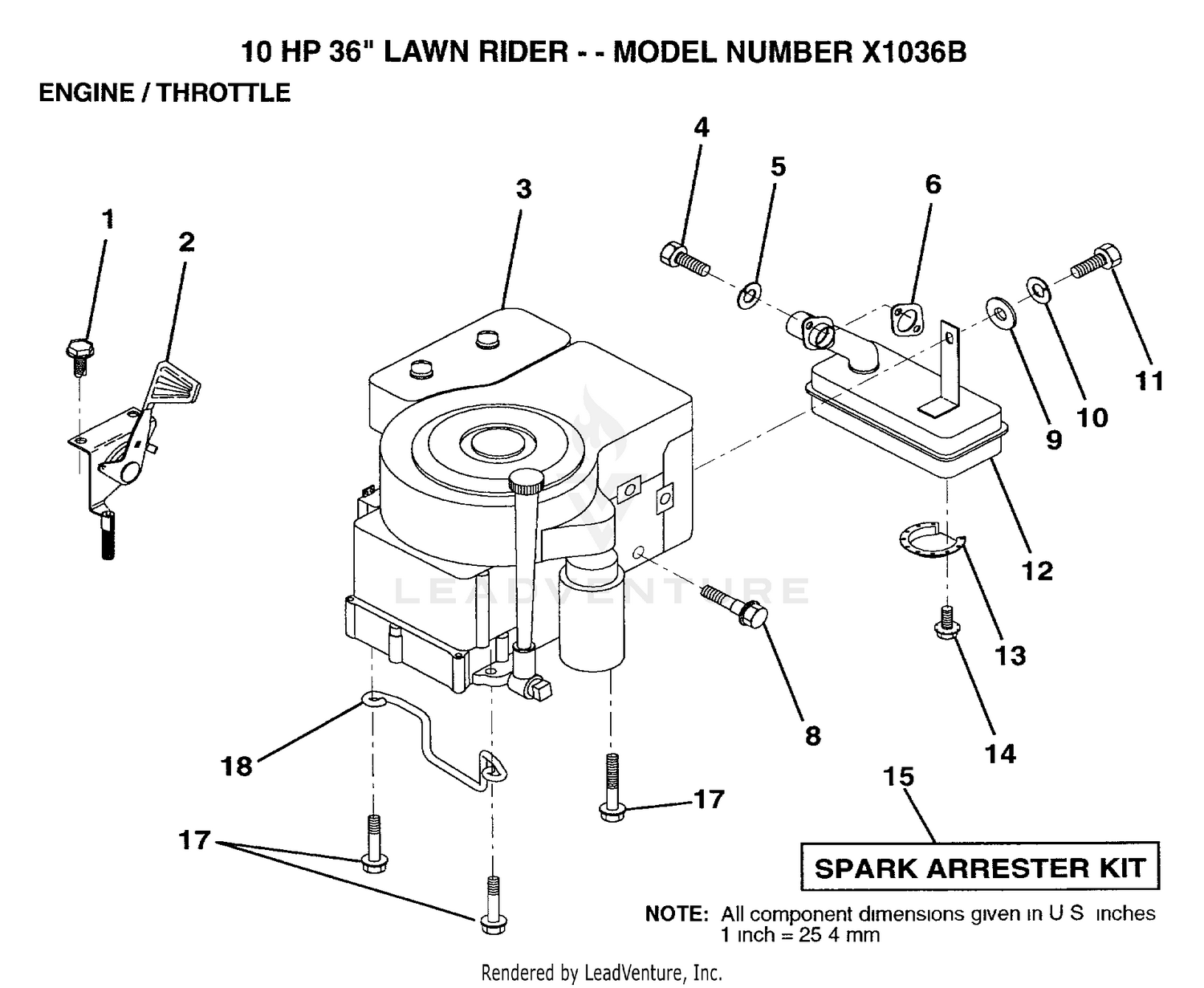

| Ref | Part Number | Description |
|---|
| 2 |
132521 |
THROTTLE CONTROL Price: Call Us |
| 3 |
254707 |
ENGINE, B&S 10 HP Price: Call Us |
| 4 |
71070512 |
SCREW Price: Call Us |
| 005 |
105-4578 |
WATER FLANGE ASM Price: $294.83 |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 6 |
125593X |
SUB= 272293 Price: Call Us |
| 8 |
121094X |
BOLT T Price: Call Us |
| 9 |
19101216 |
WASHER Price: Call Us |
| 10 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
74780412 |
SUB= 74780414 Price: Call Us |
| 12 |
124097X |
MUFFLER Price: Call Us |
| 13 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 14 |
17030808 |
SUB= 17030814 Price: Call Us |
| 15 |
121851X |
SUB= 532137180 Price: Call Us |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 030 |
105-2874 |
PLUG Price: $6.68 |
| 040 |
105-2875 |
BOLT-FLANGE Price: $3.41 |
| 050 |
98-7767 |
GASKET-FLANGE, WATER This part replaces 105-2876. Price: $4.58 |
| 060 |
100-2562 |
BOLT This part replaces 98-7610. Price: $2.79 |
| 070 |
100-1558 |
STUD Price: $2.26 |
| 080 |
105-2877 |
BOLT Price: $1.36 |
| 090 |
98-7534 |
NUT Price: $0.48 |
| 100 |
3253-4 |
WASHER-LOCK This part replaces 99-8339. Price: $0.25 |
| 110 |
105-2878 |
PIPE-RETURN, WATER Price: $36.38 |
| 120 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 130 |
105-2879 |
CLAMP-HOSE Price: $2.19 |
| 140 |
100-9244 |
COVER-THERMOSTAT Price: $69.97 |
| 150 |
105-3748 |
GASKET-THERMOSTAT This part replaces 105-2880. Price: $4.31 |
| 160 |
98-7777 |
BOLT Price: $1.56 |
